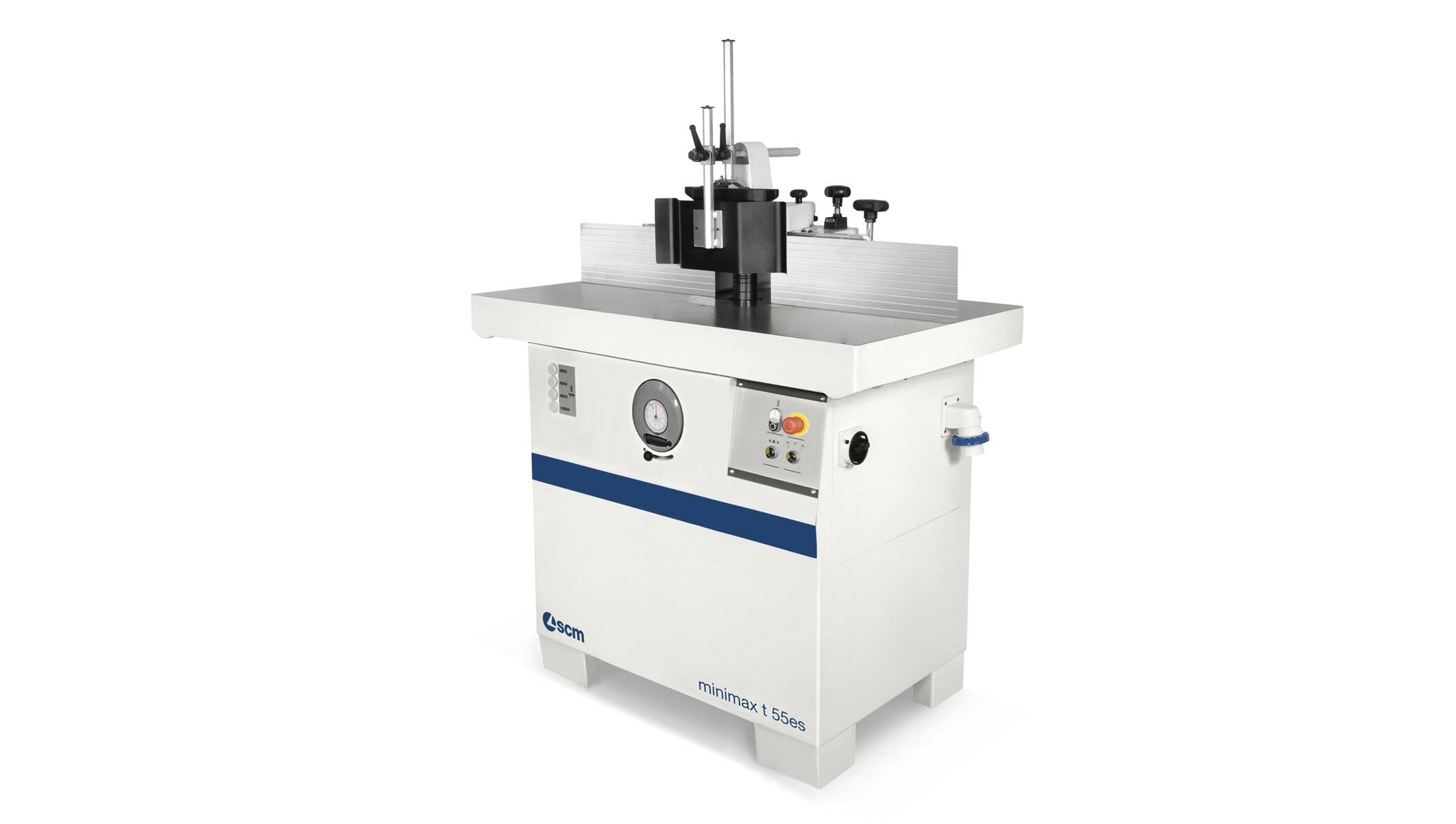

minimax t 55es, the right spindle moulder for demanding craftsmen and carpentries, thanks to its customization and flexibility.
Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The 4 standard speed are ideal for any type of machining, from moulding to routing and tenoning, with the possibility to fit tools upto 320 mm of diameter (300 mm no CE).
As option it is available the spindle moulder hood that uses a system for adjusting the guides with a rack and it is fitted with a mechanical digital readout. Thanks to the system of memories the hood can be removed and repositioned without losing the machining position. The maximum tool diameter during moulding operations is 240 mm.
|minimax t 55es|
|Surfacing tables total length||mm||125|
|Spindle moulder speed (a 50 Hz)||rpm||3500/6000/8000/10.000|
|Max. tool diameter when profiling||mm||210 ÷ 240|
|Max. tool diameter lowered under the table at 90°||mm||240|
|Max. tool diameter when tenoning||mm||-|
|Three-phase motors starting from||kW/Hz||5 (6) / 50 (60)|
