formula clamp 2500

(512) 931-1962
formula clamp 2500

The formula clamp 2500 with a sturdy  frame and a very practical positioning and adjustment is  the ideal solution  for the gluing and the assembly of many typical products of the joinery workshops.


Advantages

Hydraulic cylinders
The simple and rapid vertical beams positioning system allows a very simple hydraulic cylinders adjustment.

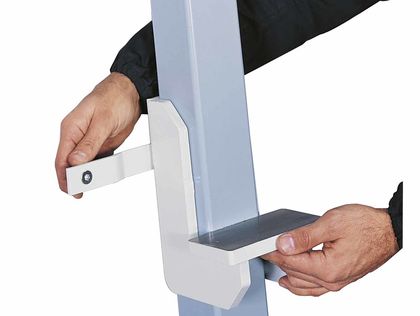

Lower cast iron supports
Even more machine sturdiness with the lower cast iron supports.

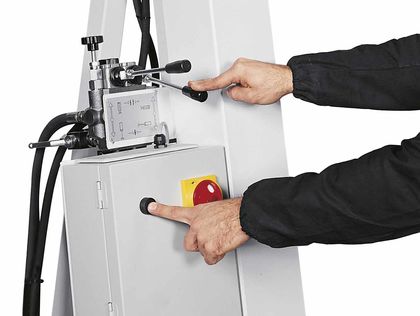

Control panel
The hydraulic cylinders pressure is controlled by practical levers and a control panel which is equipped with a valve with reading monometer and a locking cock for the cylinders pressure maintaining. The process is alwaya under control.

Technical data
Working dimensions mm 2500 x 1800
Stroke of the vertical hydraulic cylinders mm 150
Trust of each vertical hydraulic cylinders kg 1270
Stroke of the horizontal hydraulic cylinders mm 120
Trust of each horizontal hydraulic cylinders kg 770
