valtorta sp - filling machine

valtorta sp - filling machine

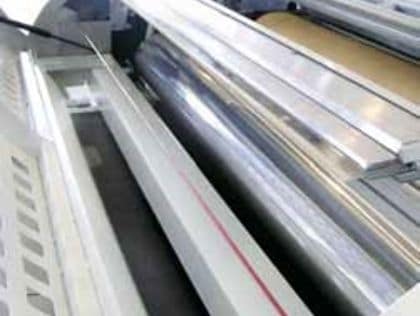

Valtorta SP is the most suitable plastering machine for the applications of thick fillers with no product recirculation system. The machine is equipped with flanges which creating a closed ink tray between the rollers from they take the product to be applied to the surface of the piece. The panels enter the machine on a conveying system with rubber against-rollers, allowing to work with right pressures.

Advantages

POWER: Ability to work with high pressure, specific for non-uniformity surface panels in raw particle board or solid wood; the application is easy thanks to the machine structure reinforced with a conveyor system with rubber against-rollers in contact with the workpiece.

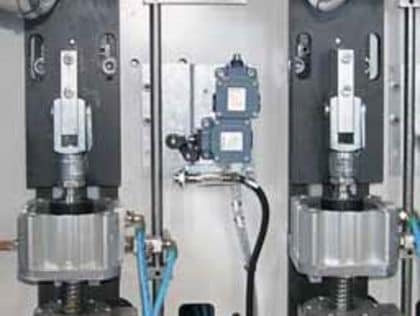

ACCURACY: It is a fast and efficient machine even in critical finishing conditions thanks to the high precision application head, controlled by a device for managing and controlling the working pressure between the applicator and the dispensing rollers. Precise weight control of the applied product.

EASE: The integrated control keypad can manage the blades, the recirculation elements and the quick replacement system for the applicator roller.

CONTROL: Control keypad integrated in the machine with the working speed setting.

Technical data
FILLING MACHINE valtorta sp
belt width

1370 mm.

roller width

1500 mm.

working height

900 +/- 20 mm.

panel thickness

3-120 mm.

min. panel length

300 mm.

application roller diameter

245 mm.

standard hardness of the application roller

50 Sh

doctor roller diameter

175 mm.

filling roller diameter

198 mm.

feed speed

6 - 18 m/min (others on request)
