celaschi p30

The "entry level" solution for quality squaring offers the same processing accuracy and reliability of high performance double-end tenoners with an unbeatable price-quality ratio.
celaschi p30 is offered in a standard configuration for squaring and profiling without chipping and performing pass through and/or blind grooves on any kind of material.

Advantages

ACCURACY AND RELIABILITY OVER TIME
Machine structure stiffness and workpiece transport system stability ensure the same processing accuracy of high performance machines.

EASE OF USE
Maestro square-EASY control unit allows easy machine management within everyone's reach.

NO COMPROMISE ON SECURITY
Each machine is subjected to rigorous controls in full compliance with the CE norms and UNI EN ISO standards. In addition, each operating unit is equipped with the OVERSPEED and ZEROSPEED functions.

Technical data
MACHINE FRAME 3 operating units per side
WORKPIECE TRANSPORT SYSTEM

Maximum speed
Chain tracks centre distance
Dogs pitch

m/min
mm
mm

24
2700-2800-3150-3200
400-450-800

MOBILE BEAM

Maximum beam opening
Positioning speed

mm
m/min

3100-5600
2

WORKPIECE DIMENSIONS

Width
Thickness

mm
mm

185-3100
3-150

BELT /PULLEYS SYSTEM

Vertical stroke
Vertical adjustment

mm
mm

20
3-150

Video

Progress 30

automatic double-end tenoner

Documentation

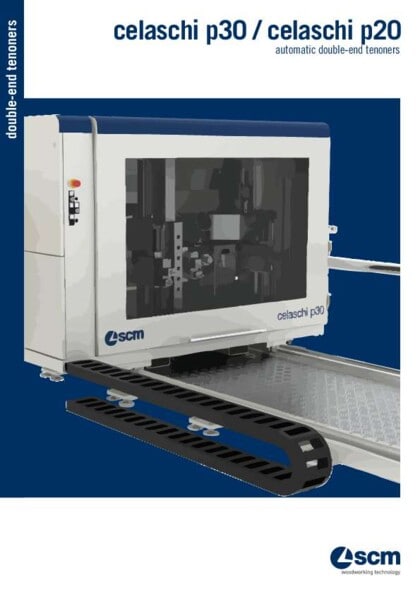

celaschi p30_EN Download
