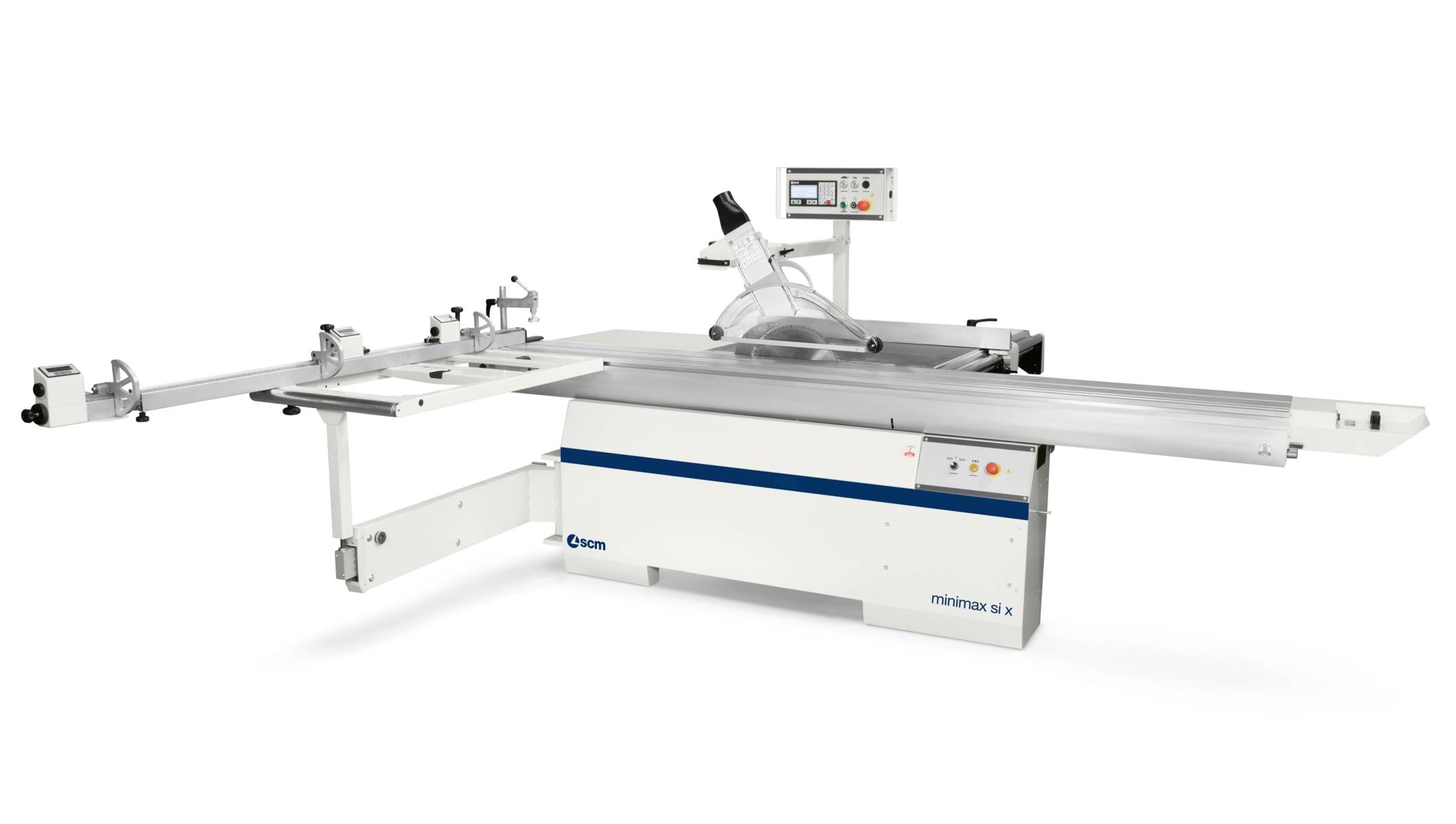

Circular saw with ±46° double tilting.
It ensure a perfect and easy cutting of veneer panels and thick solid wood material with very high thickness both at 90° and tilted cuts at ±46°.

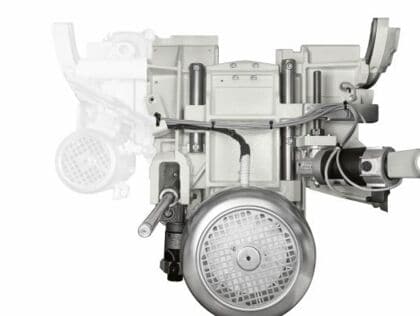

New saw unit with a stiff cast-iron structure which can accommodate a blade of 400 mm diameter with scoring blade mounted. It ensures a perfect and easy cutting of veneer panels and thick solid wood material with very high thickness both at 90° and tilted cuts at ±46°. The saw blade uses 100% of the motor power, thanks to the scoring blade with an independent motor as standard.
Circular saw with ±46° double tilting; now at everybody's reach.
Unrivalled cutting finishing

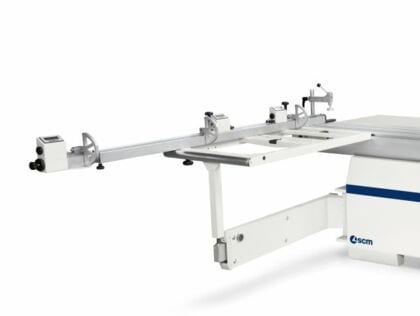

Optimal support also to larger pieces, with the new sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting.
| minimax si x | ||
| Max. sawblade diameter with scoring blade (option) installed | mm | 400 |
| Max. sawblade projection from table at 90°/+45°/-45° | mm | 136/97/60 |
| Cutting width on parallel fence | mm | 1270 |
| Squaring stroke | mm | 2250÷3800 |
| Three-phase motors starting from | kW/Hz | 7 (8) / 50 (60) |
Fill out the online form to be contacted by a salesperson
