formula s 440p - s 540p - s 640p - s 740p - s 840p - s 940p
(512) 931-1962
All the formula machines are guaranteed by SCM, reflecting their level of quality and reliability.

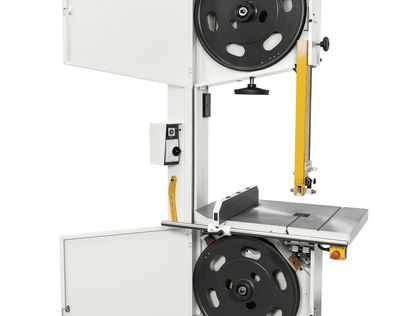

Massive, high-precision, professional band saws for the D.I.Y. woodworkers and the carpentries.
Solidity and sturdiness

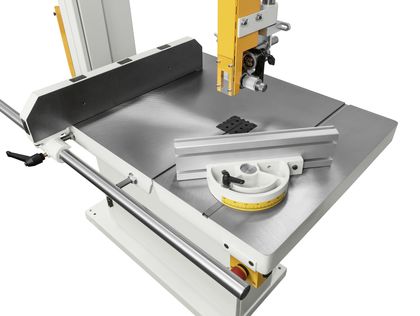

Very thick, cast iron wheels, as well as the worktable, running on sealed for life ball bearings.
Safety first
Total safety machining with telescopic protections with rackwork to the blade.
Perfect results

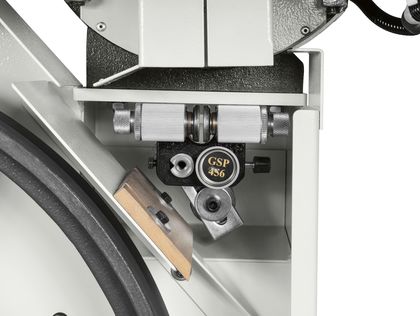

A perfect cut result is assured by the top and bottom high precision blade guides. Practical machines suitable also to perform straight and tilted cuts on wood, plastic and aluminum.
| formula | s 440p | s 540p | s 640p | s 740p | s 840p | s 940p | |
| Worktable dimensions | mm | 420 x 578 | 520 x 720 | 600 x 885 | 710 x 1000 | 800 x 1160 | 800 x 1250 |
| Cast iron saw wheels diameter | mm | 440 | 540 | 640 | 740 | 840 | 940 |
| Saw wheels width | mm | 33 | 38 | 38 | 40 | 45 | 54 |
| Max. cutting height (inches) | mm | 440 (18") | 500 (20") | 600 (24”) | 450 (18”) | 540 (21”) | 560 (22”) |
| Max. cutting width | mm | 425 | 520 | 620 | 720 | 820 | 910 |
| Worktable tilting (CE) | 0° ÷ 45° (20°) | 0° ÷ 45° (20°) | 0° ÷ 45° (20°) | 0° ÷ 45° (20°) | 0° ÷ 45° (20°) | 0° ÷ 45° (20°) | |
| Max. blade length | mm | 3950 | 4560 | 5220 | 5420 | 6110 | 6710 |
| Standard three-phase motor S1 400V 50Hz | kW (Hp) |
2,2 (3) |
2,2 (3) |
3 (4) |
4 (5,5) |
5,5 (7,5) |
7,5 (10) |
| Standard three-phase motor S1 220V 60Hz | kW (Hp) | 3,6 (4,8) | 3,6 (4,8) | 3,6 (4,8) | 5 (6,6) | 6,7 (9) | 6,7 (9) |
| Standard single-phase motor S1 220V 60Hz | kW (Hp) | 3,6 (4,8) | 3,6 (4,8) | 3,6 (4,8) | - | - | - |
| Exhaust outlets diameter | mm | N.2 x 120 | N.2 x 120 | N.2 x 120 | N.2 x 120 | N.2 x 140 | N.2 x 140 |
