The new automatic throughfeed moulder designed with the aim to expand the range of planning-moulding machines that SCM is able to offer meeting new customer requirements.
It is possible to carry out beams, prismatic profiles, frames, linear parts and profiles for windows, doors, furniture, garden and boat furnishings.

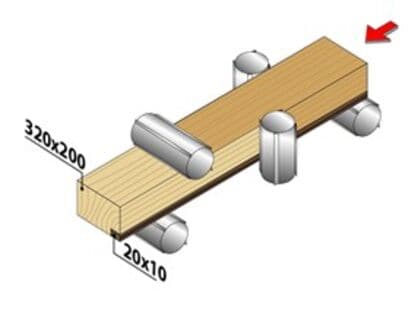

INCREASED WORKING SECTIONS
The machine structure enables managing a wide range of widths and thicknesses for the work-pieces, to carry out a great variability of products.

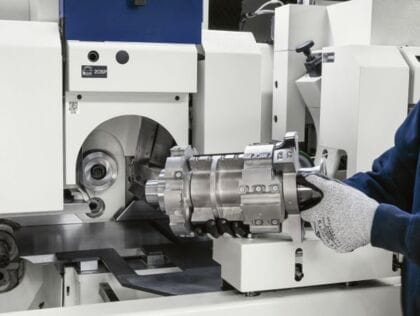

TOP PERFORMANCE
The “HSK” spindles rotating speed up to 12.000 rpm ensures excellent finish quality even at high working speeds.
PERFECT STABILITY OF THE WORK-PIECES
The machine is fitted with new worktables, easily interchangeable, specifically designed for a quick and accurate positioning, depending on the profile to be executed.

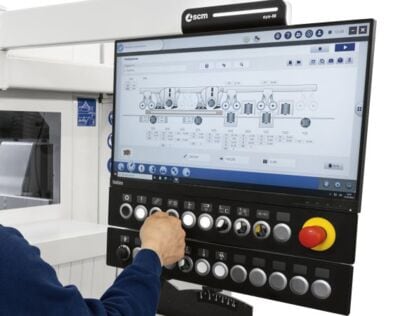

NO POSSIBILITY OF ERROR
The MOBILE PC electronic control makes machine programming intuitive. Clear and precise information are always available, thanks to detailed reports.
| topset xxl | |||
| Minimum working width (finished section) | mm | 20 | |
| Maximum working width (finished section) | mm | 320 | |
| Minimum working thickness (finished section) | mm | 10 | |
| Maximum working thickness (finished section) | mm | 200 | |
| Feed speed | m/min | 4 ÷ 40 | |
| Motors power | kW (HP) | 7,5 ÷ 40 | |
| Spindles rotating speed | rpm | 6.000 [8.500 opt.] [6.000 12.000 with HSK] |
|
| Diameter of tool-holder spindles | mm | 50 [40 opt.] | |
| Axial adjustment of vertical spindles from worktable | mm | 100 [95 with HSK] |
|
| Axial adjustment of horizontal spindles from right fence | mm | 60 | |
| Min./max. diameter of planing spindle and reference engraver tools | mm | 120/145 - 140/165 | |
| Min./max. diameter of planing tools (planing spindle excluded) | mm | 100/200 | |
| Min./max. diameter of profiling tools (planing spindle excluded) | mm | 100/250 | |
| Worktable height | mm | 950 ± 15 | |
| Diameter of feeding rollers | mm | 140 | |
