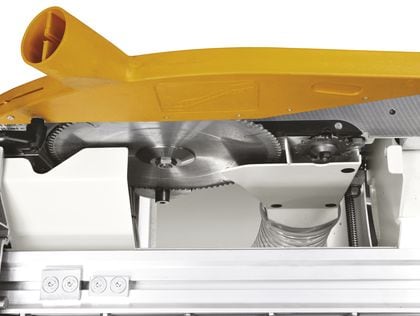

New saw unit with a blade that has a maximum diameter of 315 mm with the scoring blade installed. The new scoring unit can be supplied on request and can easily be adjusted from outside the machine.
Perfectly stable support

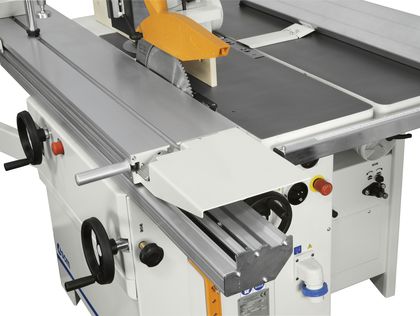

Easier, more precise cutting is possible thanks to perfectly stable support guaranteed, even for large work pieces, by the 270 mm wide sliding table.

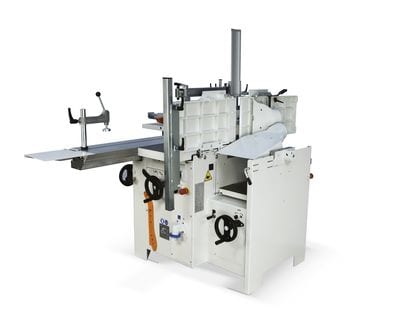

During the changeover from surfacing to thicknessing the surfacing tables open towards the inside of the machine with a 90° angle, facilitating thicknessing. Work pieces with a maximum height of 220 mm can be machined to the thicknesser. The new design of the dust-conveyor, protecting the cutter block, is specifically intended to further increase system safety and efficiency.
The spindle moulder unit has a spindle with a useful working length of 100 mm. A tool with a maximum diameter of 180 mm can be retracted under the worktable. For machine maximum safety and increased flexibility, a spindle moulder protective hood for shaping is supplied as standard.
|Cutterhead working width||mm / inches||300 / 12|
|Jointer bed length||mm / inches||1300 / 51|
|Max. sawblade diameter with scoring blade installed||mm / inches||315 / 12|
|Max. sawblade projection from table at 90°/45°||mm / inches||100 / 78 3.94 / 3.07|
|Cutting width on parallel fence (Rip capacity)||mm / inches||800 / 31.5|
|Max. useful spindle length||mm / inches||100 / 4|
|Max. tool diameter when profiling||mm / inches||210 / 8.27|
|Spindle moulder speed||rpm||4000 / 7000 / 9000|
|(3x) Single-phase motors||Hp||3.4|
|Max. squaring stroke of sliding table saw||mm / ft||1600 / 5.5|
