oikos x4 is the new 6-axis CNC machining centre, designed for the rapid and precise processing of camber beams with a maximum cross-section of 675x300 mm, which are ideal for constructing large building roofs (such as warehouses or supermarkets) and public structures. This innovative solution for the wood construction industry offers new business opportunities and environmental benefits.
From Mass Timber to Smart Timber
Camber beams are engineered components made of laminated wood (Glulam), glued and pressed with a slight longitudinal curvature, typically a few millimeters over a length of 10 meters. This curvature, almost imperceptible to the naked eye, ensures that the beam becomes straight under load, resulting in up to 10% material savings in industrial applications.
INNOVATIVE PROCESSING
The ability to process camber beams with precision and full automation, thanks to four interpolated clamps with full stroke, two positioned on the loading side and two on the unloading side.
UNLOCKING EFFICIENCY
The 6-axis operating unit, equipped with an 18-position tool store, allows for rapid tool changes and mask time operations, thus increasing the overall efficiency and speed of machining processes.
SUPERIOR PRECISION AND QUALITY
The robust structure ensures high precision and excellent stress absorption during the machining process, guaranteeing superior quality results.
PROGRAMMING FREEDOM

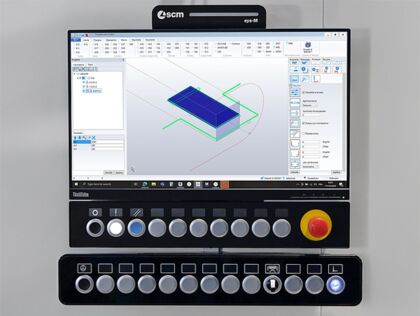

Maestro beam&wall is the proprietary SCM software compatible with the most popular CADs design systems in the timber building industry. It allows programming both in the office and directly on the machine. Thanks to the new HMI software Maestro active beam&wall, control and optimization of the production flow are even simpler and more intuitive.
| CAMBER BEAMS | STRAIGHT BEAMS | ||
| Workpiece dimensions | |||
| Length max. | mm | 13,500 - 16,000 - 19,000 | 13,500 - 16,000 - 19,000 |
| Cross-section max. | mm | 675 x 300 | 1,250 x 300 |
| Cross-section min. | mm | 90 x 20 | 50 x 20 |
| Maximum camber (arrow) | mm | 63 - 75 - 90 | - |
| Weight max. (in automatic loadable workpiece) |
kg | 2500 | 2500 |
| Main operating unit | |||
| Axes | N° | 6 | 6 |
| Power max. (S1) | kW | 13 - 25 | 13 - 25 |
| Sawblade diameter | mm | 500 | 500 |
| Compatibility with tool store | - | yes | yes |
| Tool store | |||
| Positions | N° | 18 | 18 |
