morbidelli m90
(512) 931-1962
The new machining center with 3-4 axes technology shares the technological know-how of the "morbidelli m" range offering an excellent quality/price ratio.
It stands out for a reduced footprint that allows to optimize the available space in the factory without compromising on productivity and machining quality.
Advantages
-
SMALLER FOOTPRINT AND HIGH PERFORMANCE: COMPACT
6 meters total length with no side protections: technology at the TOP in a minimum space. -

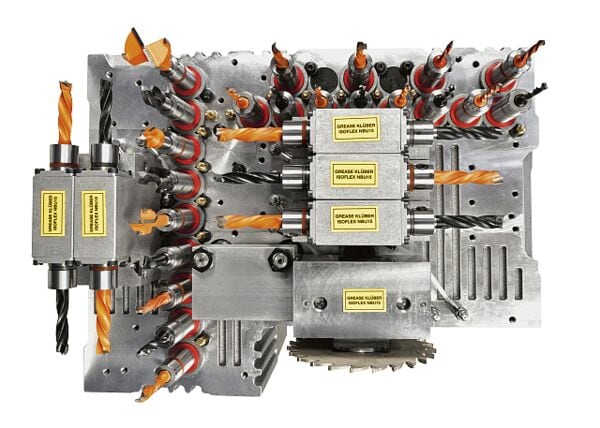

HIGH DRILLING CAPACITY: FASTER
Drilling cycle time saving up to 60% thanks to the large amount of drilling bits (RO.AX. technology) distributed on a layout suitable for any type of furniture construction. -
UNIVERSAL AND POWERFUL: TOP QUALITY
Ability to set up the machine with routing units of different power rate according to any machining requirement and in case of heavy duty applications. -
INSPIRE THE MIND:
MAESTRO LAB
The CAD/CAM programming software ensures that all machining can quickly and easily be programmed.
Transforming an idea into a finished product has never been so easier.
Technical data
| Working areas | ||||
| X-Y axes dimensions | mm | 3115 x 1320 | ||
| Y-axis panel clearance | mm | 1600 | ||
| Axes | ||||
| Vectorial speed "Pro-Space" | m/min | 56 | ||
| Z-axis panel clearance | mm | 180 | ||
| Drilling unit | ||||
| Independent vertical spindles (up to) | no. | 21 | ||
| Independent horizonal spindles (up to) | no. | 10 | ||
| Rotation speed (max.) | rpm | 8000 | ||
| Integrated blade in X, diameter | mm | 125 | ||
| Routing unit | ||||
| Motor power (max.) | kW (hp) | 14 (19) | ||
| Rotation speed (max.) | rpm | 24000 | ||
| Available tools on tool changers (up to) | places | 25 | ||
