stefani rocket E

(512) 931-1962
a11y.label.machine_photo stefani rocket E

stefani rocket E is a flexible edgebanding line for processing panels already squared that meets the production requirements of companies where the process takes place with a "linear flow". It offers a high degree of flexibility allowing the machining of panels of different size with the same thickness.

It is composed of the moover  handling system and two single-sided edgebanding machines, stefani x or stefani s model,  in left and right execution.

Advantages

  • Moover handling system
    The production flow is always guaranteed thanks to moover automation.
    Once the operator has inserted the panel, the approach and insertion into the edge bander are completely automatic.

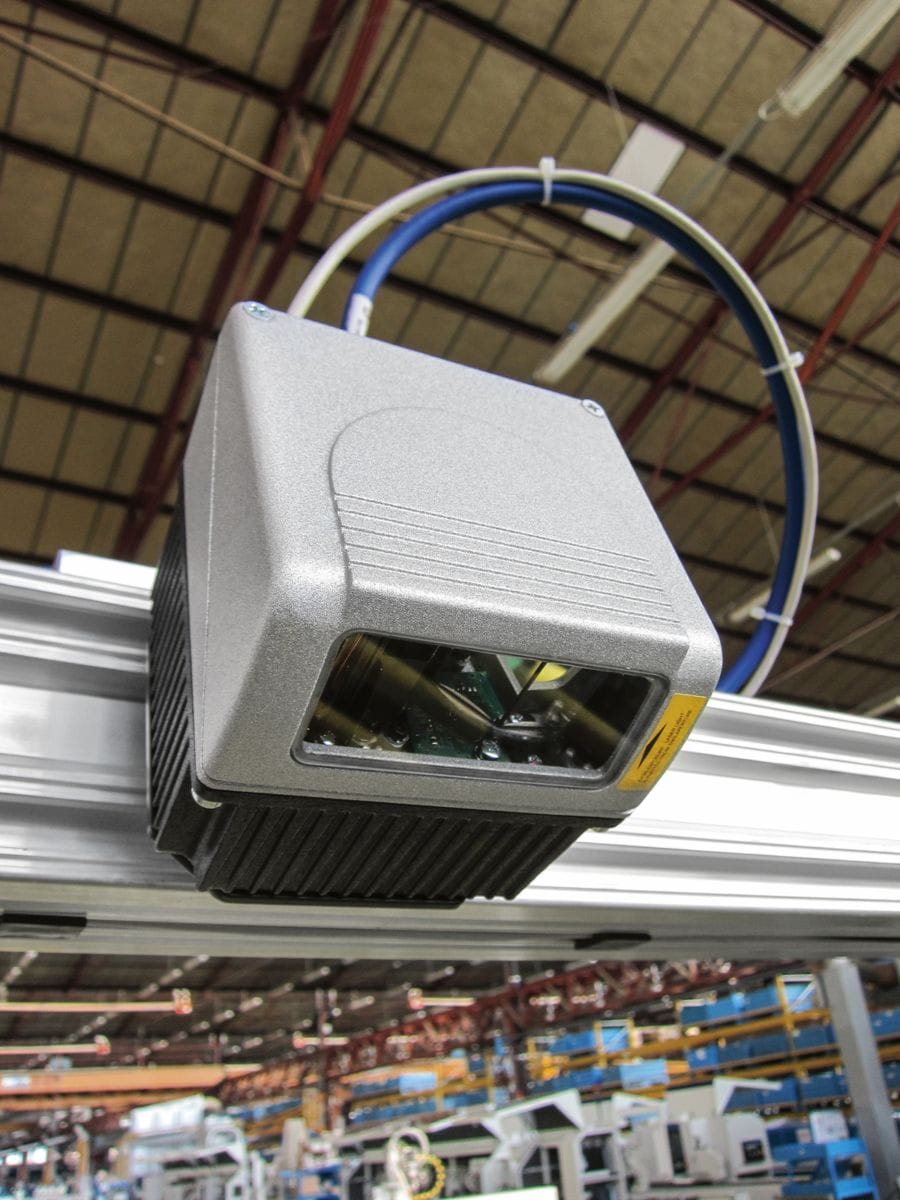

  • BarCode/QR Code reading
    The reading system with the machine learning function allows continuous production without distinction among Batch 1 or  mass production.
    No need of downtime for changeover of panel size, edging thickness, ornamentation and glue type.

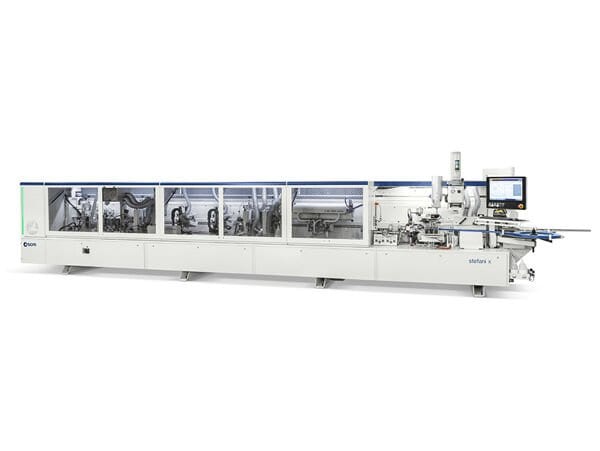

  • stefani x
    Designed for the industrial production of both identical and different batches and for intensive use even beyond the daily working shift. Due to its versatility and with working lengths up to 9 meters, every type of production can easily reach cost-effective machining with the possibility to customize finishing quality, performance, flexibility levels and any other useful aspect for production and market requirements.
  • EdgeStore Manager
    The automatic learning system via barcode or QRcode reader combines the program to be executed with the correct edge for extremely simple and fast management of the edge coil change. Thanks to the dedicated interface of the Maestro active edge software, all edge information (name, color, thickness, consumption, etc.) are always available on a single screen.

Technical data

Machinable dimensions with lengthwise feeding
(length x width) (min/max)
min/max 250x130 / 3000x1200
Machinable dimensions with crosswise feeding
(length x width) (min/max)
min/max 180x250/ 1200x3000
Operators 1
Program change to Batch 1 (reading of unique code on panel by Bar Code / Qr Code) - NO
Possibility to size the panel - YES
Change of colour, thickness, edge protection film - YES
Panel dimension change - YES
Groove position and depth (in flexible mode) - NO
Glue dosage change - YES
Addition of a panel during Batch 1 machining - YES
Homogeneous panel management - YES
Panel re-machining - YES
Edge bander model - stefani x / stefani s
