balestrini power
(512) 931-1962
balestrini power is the new range of SCM machining centers characterized by reduced overall dimensions and ensuring power, flexibility and productivity, in response to the needs of interior and exterior furniture manufacturers. The compact structure improves the accessibility to the worktables during the setup for the machining changeover. The various models differ in the dimensions of the gantry, making it possible to process even voluminous work pieces.
WORKTABLE MODULARITY

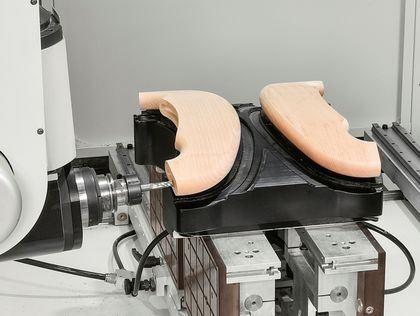

The crossbars worktable is designed for maximum modularity according to production needs. The work piece locking equipment perfectly adapts to the machining of pieces of any shape.
The aluminium multifunction worktable allows optimum locking of the work pieces, using jigs or dedicated equipment (suction cups and clamps).
HIGH PROCESSING SPEED
With the 5-axis revolver machining head units, all the tools necessary for the different operations are always available. This guarantees an execution speed without comparisons.
As an alternative, the PX5 single-electrospindle machining head unit is used for complex operations and heavy stock removal.
SAFETY AND ERGONOMICS

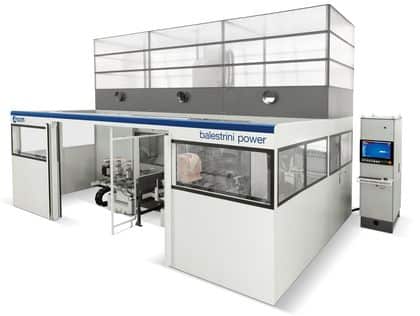

The new protections with horizontal sliding doors perfectly meet safety and ergonomics needs during all machining phases. For the customer who wants to reduce the machine overall dimensions and, at the same time, have total safety, protections with vertical sliding doors are available.
EASY 5-AXIS PROGRAMMING
The new 5-axis Smart Pro CAD/CAM software allows you to generate work pieces, automatically optimize and simulate machining operations in a single work environment, greatly reducing programming time.
| LINEAR AXES | ||
| X axis stroke | mm | 3000-4000-5000-6000 |
| Y axis stroke | mm | 1800-2550-3550 |
| Z axis stroke | mm | 700-1000 |
| X-Y-Z axes speed | m/min | 90-90-60 |
| WORKTABLES | Bars worktable - Multifunction worktable | |
| MACHINING HEAD UNITS | PX5 - CS33 - CS44 | |
| Rotation speed max. | rpm | 24000 |
| ROTATING AXES | ||
| B rotation | ° | +/- 120 (PX5) – 360 in continuous (CS33 and CS44) |
| C rotation | ° | +/- 270 (PX5) – +/- 370 (CS33 and CS44) |

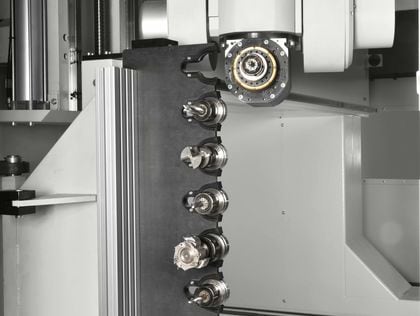

| TOOL STORES | ||
| Linear tool store | n° positions | 6-8 |
| Circular tool store | n° positions | 16-20 |
