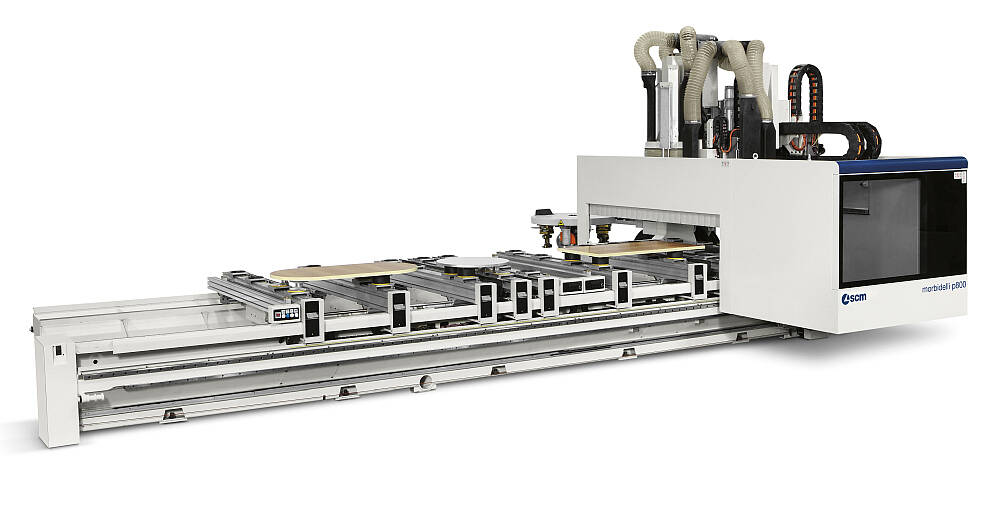

morbidelli p800
(512) 931-1962
morbidelli p800 is a machining centre for drilling, routing and edge treatment for the furniture industry, the perfect solution for “just in time” production and for making panels that are ready for assembly.
morbidelli p800 allows all machining on a panel in a single machining centre, guaranteeing high quality edges application.
A top tier technological solution to the demands of various goods sectors: from office furniture to bedrooms, and custom designs for stores and interiors.

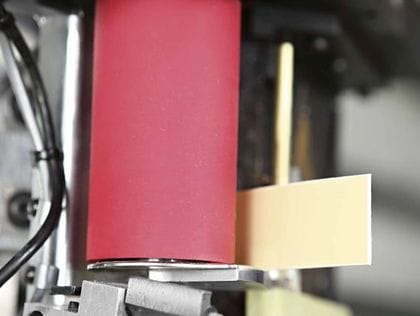

ZERO DEFECTS with maximum quality even for joins on difficult workpieces thanks to the SBRINDLE device that reads the position of the edging “on-the-fly”.
ZERO DIFFICULTY programming even for less experienced operators, using Maestro edge the brand new software with which a single platform is used to carry out all types of machining.
| X working area | mm | 5020-6360 |
| Y working area | mm | 1680-1830 |
| Drilling spindles | n. | 26÷50 |
| Electrospindle motor power | kW | 11÷17 |
| Tools available on tool room | n. | 18÷34 |
| Edge height | mm | 15/84 |
| Edge thickness | mm | 0.5-3.0 |
| Coils storage capacity | n. | 2÷12 |
