sergiani gsl-a

(512) 931-1962
Presses - Edge glued beam and lamellar panels presses - sergiani gsl-a

Press for continuous edge glued beam panels production with automatic loading/unloading and composition. Several solutions available to load the edge glued panels and possibility to add pneumatic stops to compose multi-row panels.

Advantages

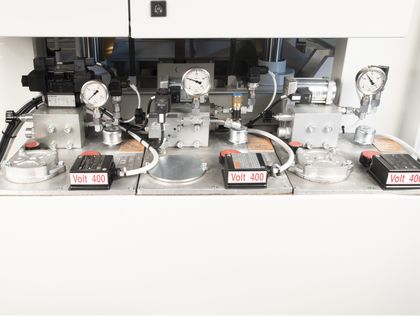

3 SEPARATE HYDRAULIC POWER UNITS for the independent adjustment of the vertical, horizontal and rear pressure thrust.

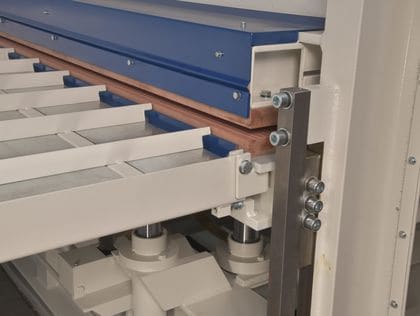

REAR PRESSURE for continuous edge glued beam panels production.

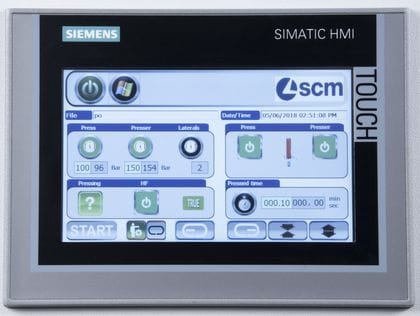

CONTROL PANEL with siemens colour touch screen.

Technical data

Max. suggested working thickness: 40 mm

Model


Platen dimension
(mm)

Vertical thrust
(ton)
Side thrust
(ton)
Pressure bar
(ton)
gsl-a 25-13 2500 x1300 38,4 7,5 30
gsl-a 30-13 3000 x 1300 57,6 9 30
gsl-a 35-13 3500 x 1300 57,6 10,5 30



Max. suggested working thickness: 60 mm

Model


Platen dimension
(mm)

Vertical thrust
(ton)
Side thrust
(ton)
Pressure bar
(ton)
gsl-a 25-13 2500 x1300 38,4 7,5 30
gsl-a 30-13 3000 x 1300 80 24 30
gsl-a 35-13 3500 x 1300 80 28 30
Media
Documentation
sergiani_range_EN Download
