k 100 evo

(512) 931-1962

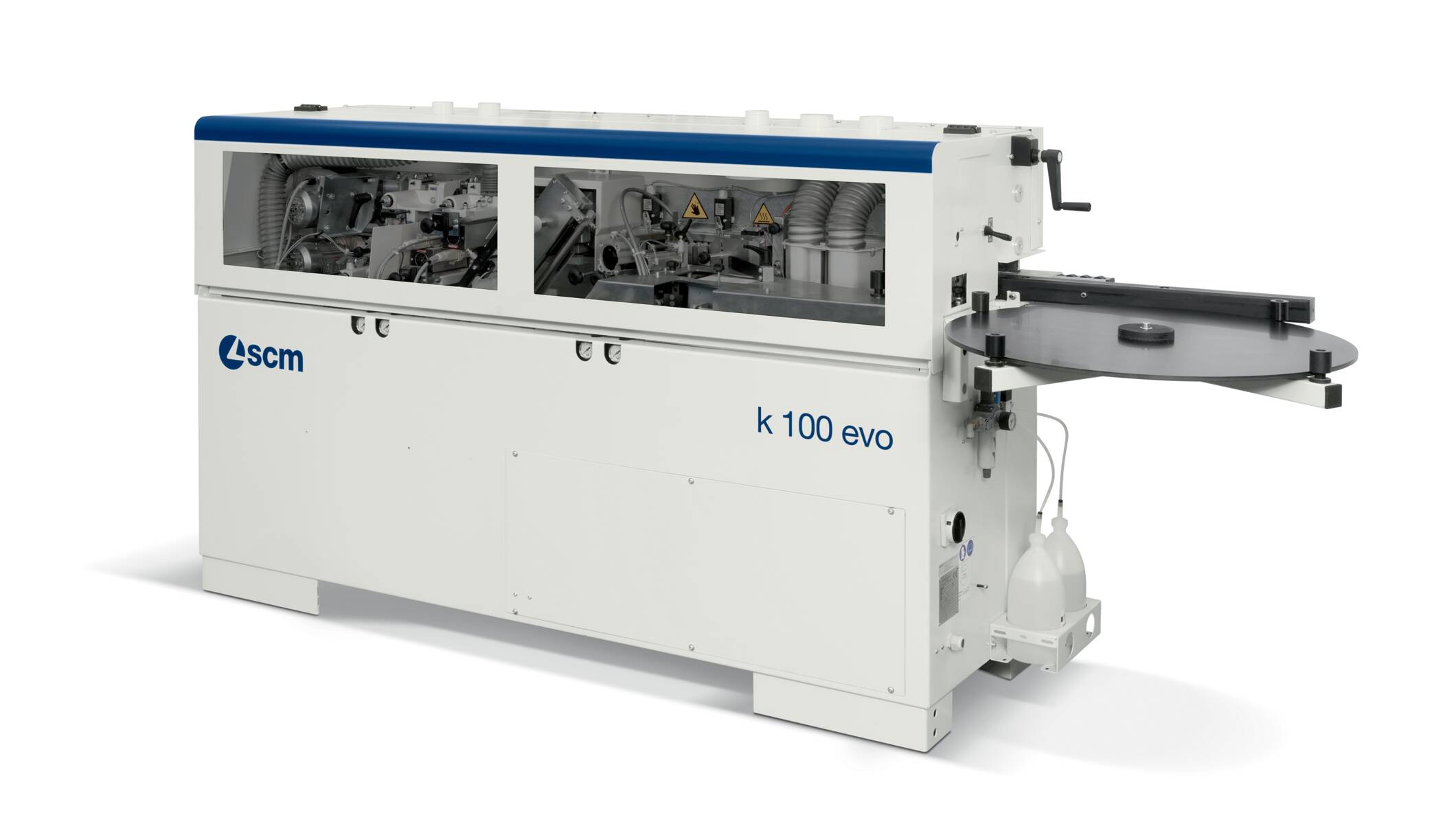

Joinery machines - Edge banders - k 100 evo

High level of inclusive equipment, advanced technological solutions and typical features from higher range models, guarantees the very best quality panels.
The features, coupled to its ease-of-use, makes the k 100 evo the perfect edge bander for small woodworking and panel processing companies.

Advantages
Machining units with automatic on/off system and multi-radius tools
High performance and rapid setting thanks to the new automatic system with pneumatic on/off controlled by the machine NC for trimming unit, edge scraping unit and glue scraping unit.
Flexibility and accuracy to perform a radius on the edge with the multi-radius tools, available for trimming unit and edge scraping unit: possibility of machining different edge thicknesses with automatic set up.

“eye-S” Compact Console
Optimal managing of the machine thanks to the new 10” touch screen control panel with Maestro active edge, where all of the machine functions are graphically shown.

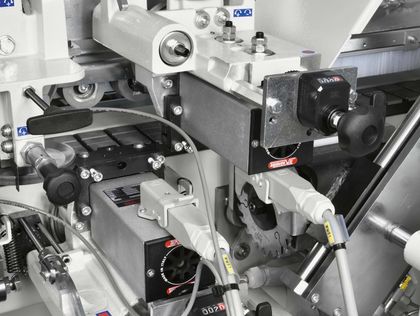

Trimming unit
Rapid machining changeover between thin, thick and solid wood edges.

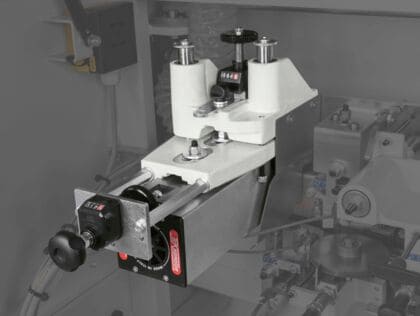

Grooving unit
The new unit is able to perform a slot on the panel directly on the edging process, without having to sacrifice the finishing and cleaning units.

Technical data
Panel thickness mm 8 - 50
Edge thickness mm 0,4 - 3 (5)
Feed speed m/min 7
Compressed air bar  6
