“All in one” machining center

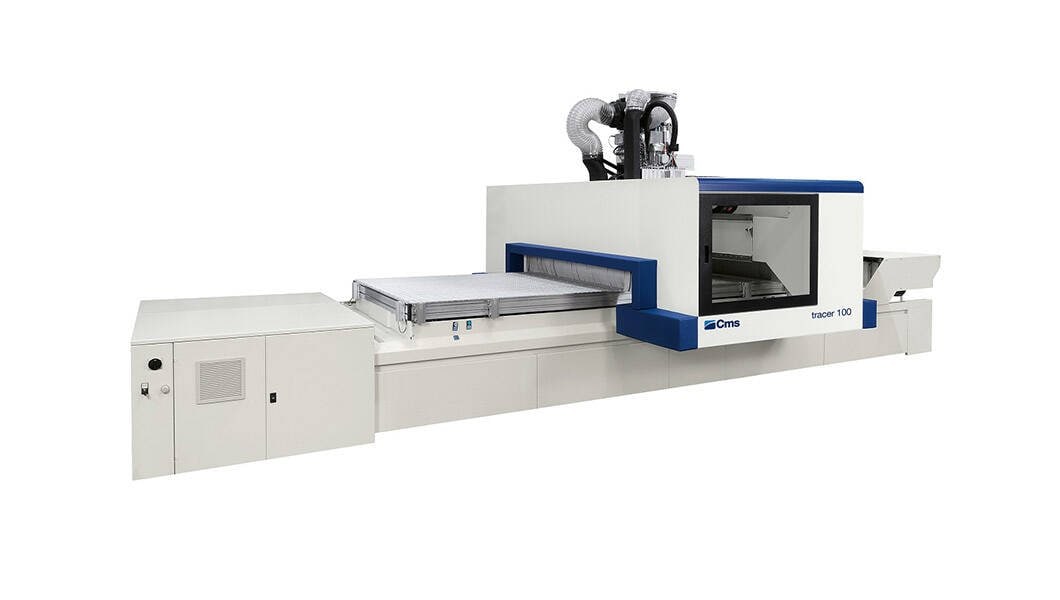

“All in one” machining center, 3 and 5 axes for the processing of plastic materials and advanced materials, equipped with technical solutions especially dedicated to the technical article and the low-drawing thermoformed products.

  • wide workpiece passage in Z up to 250mm
  • best-in-class range of spindles for all machining needs up to 15kw and 24.000 rpm
  • incomparable optimization of encumbrance thanks to the available “pro-speed” and “pro-space” solutions
Advantages

PERFECT CUTTING PERFORMANCE FOR PLASTIC MATERIALS

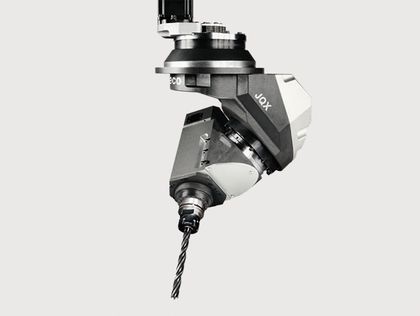

Maximum performance in plastic material processing thanks to the JQX 5-axis operating unit, which is precisely optimized for plastics. It guarantees total absence of vibrations both during removal operations and during high speed trimming of thermoformed parts.

EVERY SECOND COUNTS

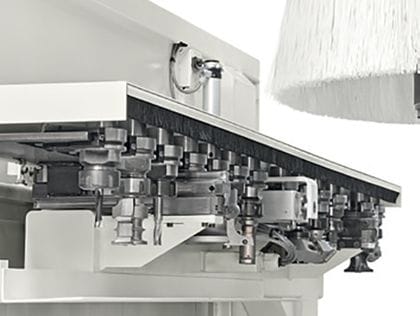

Working cycles on average 9% faster with the 14-station FAST rack magazine inside the mobile cabin. The tools are always available in front of the operating unit for change cycles in less than 15 seconds.



MAXIMUM FLEXIBILITY IN PLASTIC MATERIALS MACHINING

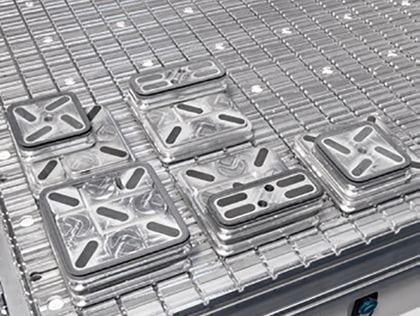

Due to the multi-functional work surface made of extruded aluminium, it is possible to meet all requirements for fixing plastic workpieces: from nesting sheets to fastening templates for thermoformed parts. The worktable ensures maximum reliability and constant performance; it is specially designed to maintain perfect planarity over time, even after repeated stress.

MINIMUM ENCUMBRANCE AND ACCESS TO THE WORK TABLE FROM ALL SIDES OF THE MACHINE

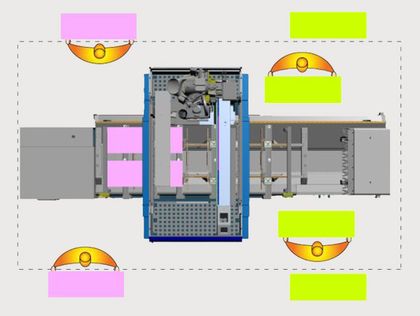

Thanks to the “pro-space” protections the loading area is absolutely unobstructed in order to minimize the space occupied.
The absence of perimeter protections allows access to the worktable from all sides of the machining centre with an average saving of 15% of occupied room in the workshop.

Technical data
TRACER 100
    10
Axes
Vectorial speed X-Y axes “PRO-SPACE” version* m/min 56
Vectorial speed X-Y axes “PRO-SPEED” version** m/min 78
Z axis panel passage mm 180 (250 opz)
Routing unit
Motor power (max.) kW (hp) 15 (20,5)
Rotation speed (max.) rpm 24000
Available tools on tool changer (up to) places 57
Drilling unit
independent vertical spindles (up to) n. 21
Independent horizontal spindles (up to) n. 12
Rotation speed (max.) rpm 8000
Integrated blade in X, diameter mm 125
INSTALLATION
Exhaust air consumption m3/h 4430
Exhaust air speed m/sec 25
Exhaust outlet diameter mm 250

*with high dynamic equipment: 84 m/mm

**with high dynamic equipment: 113 m/mm
