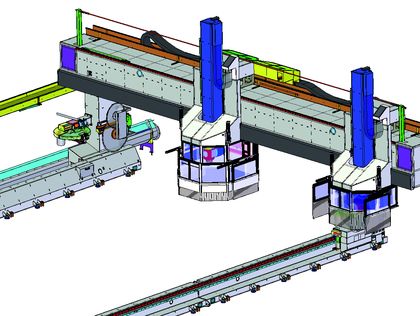

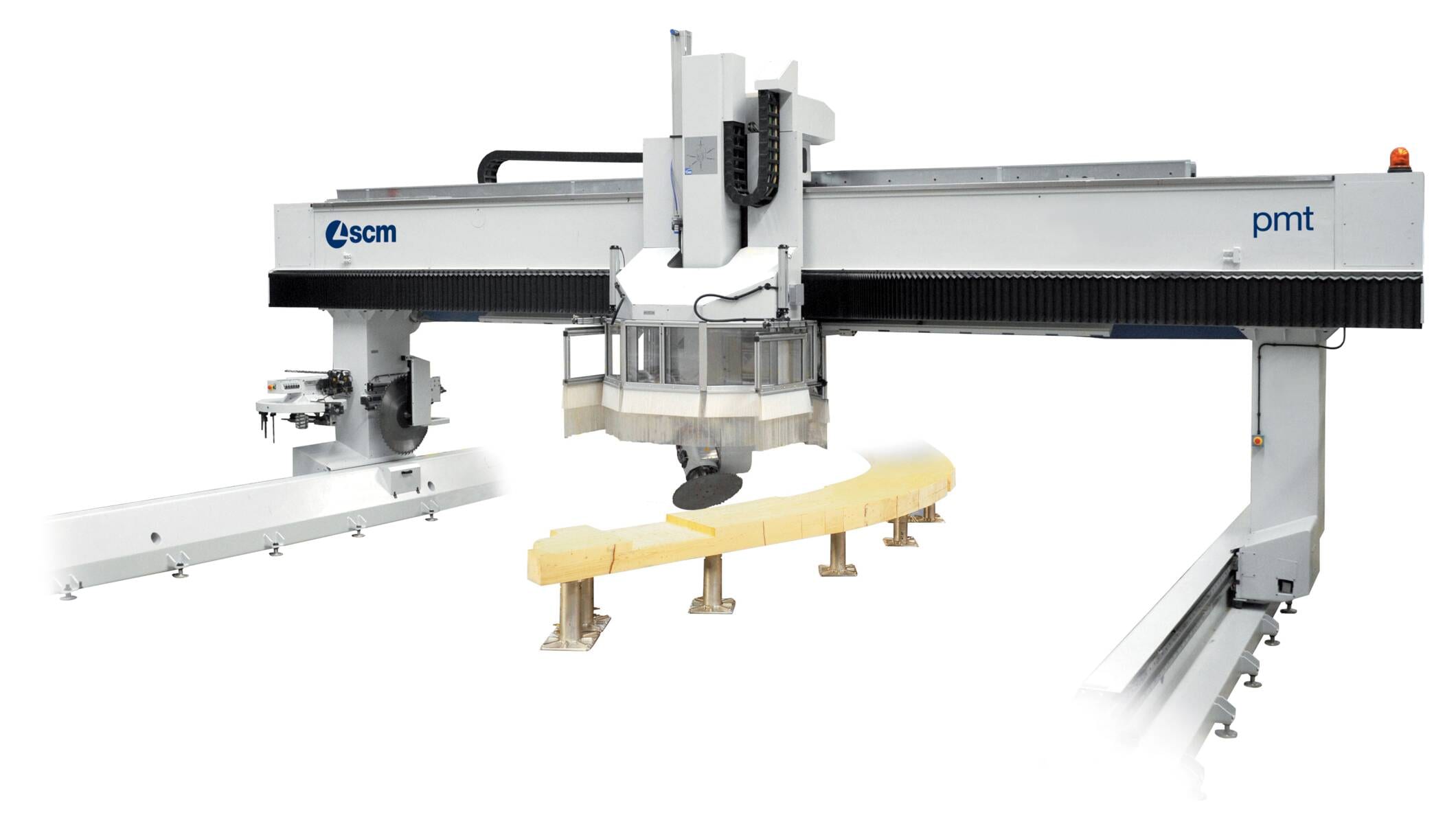

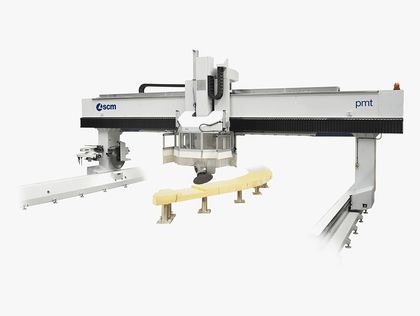

pmt is a 5-interpolated-axis CNC machining centre with movable bridge. The SCM solution for processing curved beams of large dimensions with the maximum versatility.
Extremely wide work areas, extendable up to 6 meters in width and 80 meters in length. Possibility of machining on single work area and on double work area with pendulum cycle.
The advanced structure design guarantees the reduction of vibrations generated by heavy duty stock removal, achieving an excellent combination of execution speed and processing quality.
|X axis stroke||10250 - 49600 mm|
|Y axis stroke||3600 - 6000 mm|
|Z axis stroke||1200 mm|
|5-axis main operating unit (S1)||32 kW|

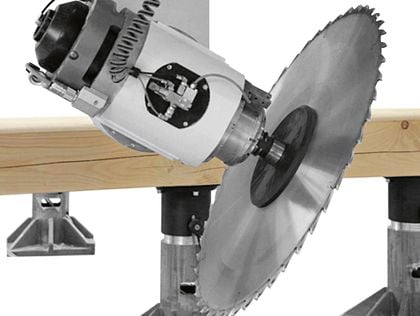

|5-axis sawblade operating unit (S1)||18 kW|
|Tool store||up to 26 tools|
|Sawblade diameter||from 600 up to 1080 mm|
