action e
(512) 931-1962

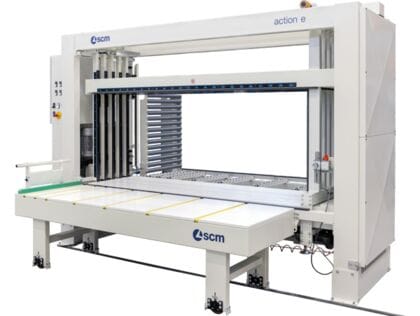

The electro mechanical cabinet clamp action e is the solution for the assembly of cabinets.
Intuitive and easy to use.
This manual operated machine is suitable for all cabinet manufacturers, with low productive volumes (up to 30 cabinets/shift).
Better quality with an effective pressing on the entire surface (comb system).
Maximum ease of use by means of buttons.
Straight sided and in square work due to the use of properly dimensioned screws.
Manually operated translating pre-assembly and unloading table with tilter: a valuable aid for the operator (optional).
| action e | ||
| Cabinet lenght | mm | 250 ÷ 2400 |
| Cabinet depth | mm | 250 ÷ 700 |
| Cabinet height | mm | 270 ÷ 1100 |
| Vertical pressure power | kN | 15 |
| Side pressure power | kN | 10 |
| Working height | mm | 600 |
| Weight | ton | 2,2 |
| Vertical pressure beam positioning speed (max) | mm/s | 50 |
| Horizontal pressure beam positioning speed | mm/s | 45 |
