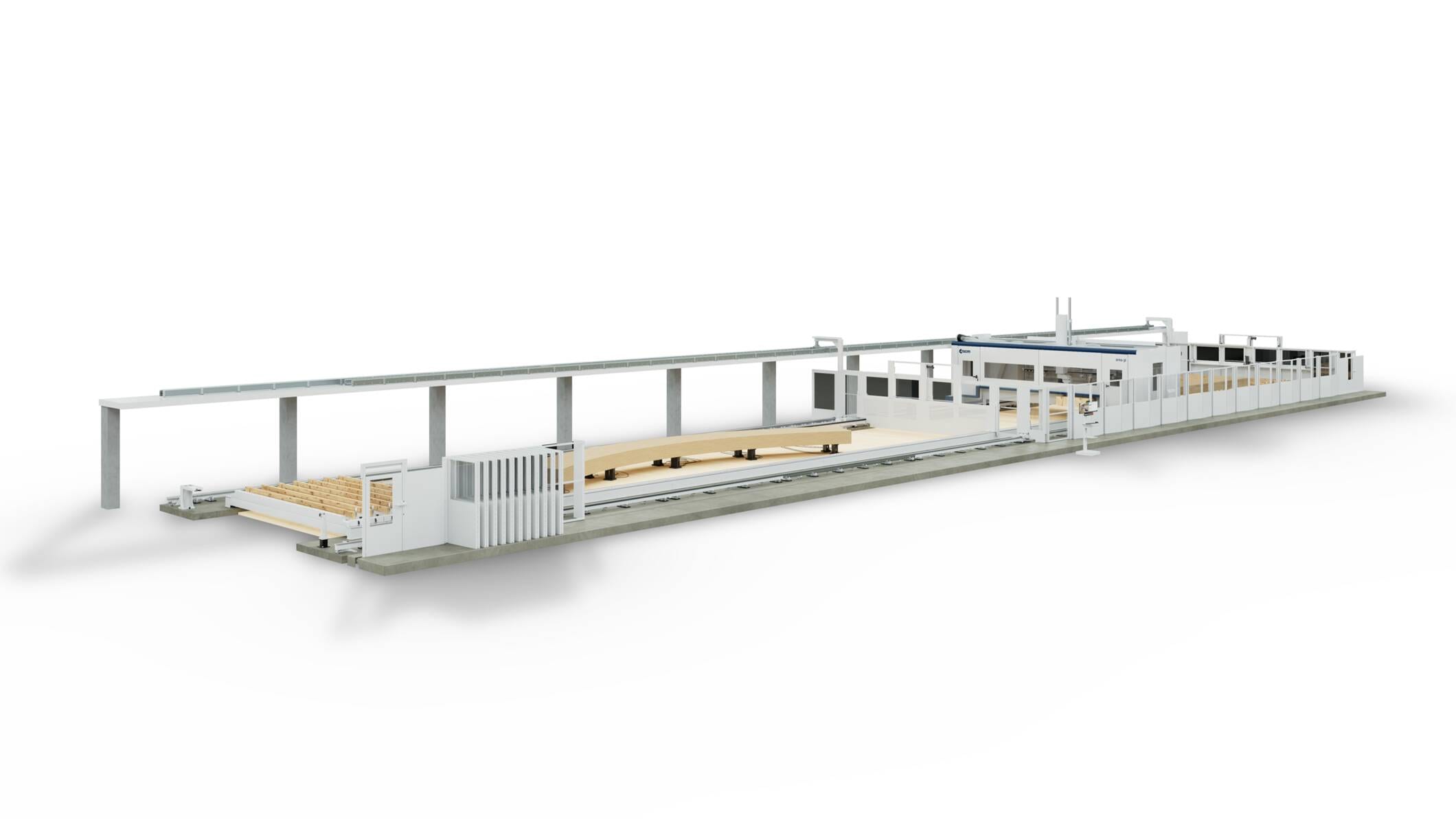

area gl

Avantages

•

  CONTINUOUS PRODUCTIVITY
  Maximum production flexibility thanks to the large workspace, modular and configurable with a width of 5 m and a length of up to 60 m, which can be divided into two independent areas. Depending on requirements, it can be equipped with movable bars or dual suction cups, allowing the full machining of pieces up to 400 mm thick on bars and 550 mm on suction cups.
  A special system of movable fences enables pendulum processing by isolating a work area, ensuring total safety and full accessibility to the other area.

•

  SUPERIOR PERFORMANCE
  The 30 kW (S1) machining head unit featuring liquid-cooling system guarantees power, precision and reliability even when manufacturing the most complex architectural projects. The exclusive aggregate dedicated to machining the underside of the beam drastically reduces the need for tilting. In addition, the combined laser system ensures fast and precise referencing on the piece, making the entire process quicker and more efficient.

•

  ENHANCED CUTTING CAPACITY
  The effective combination of the 1,100 mm sawblade with the mortising unit featuring centralized lubrication enables high‑precision mortising operations with an impressive radius of 400 mm on each side, making joints of any length possible.

•

  NEXT‑GEN SOFTWARE
  Maestro lab beam&wall is SCM’s programming software, compatible with the most widely used CAD systems in timber construction. Integrated with the HMI Maestro active beam&wall, it enables programming from both a PC and directly from the machine, increasing flexibility and productivity. The machine is IoT Solution Ready: designed to connect easily and securely to a digital ecosystem, ensuring smarter and more efficient production.
