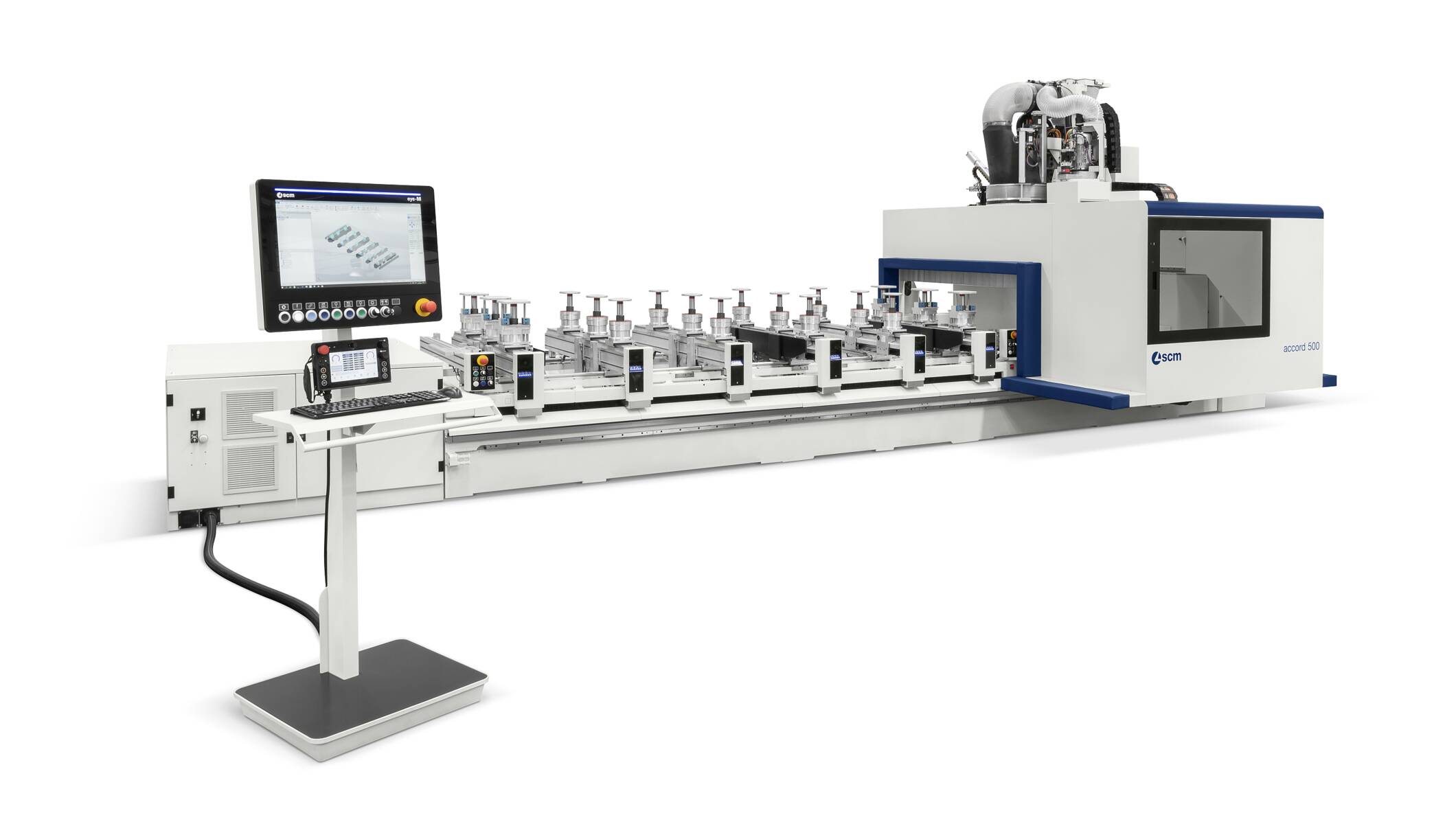

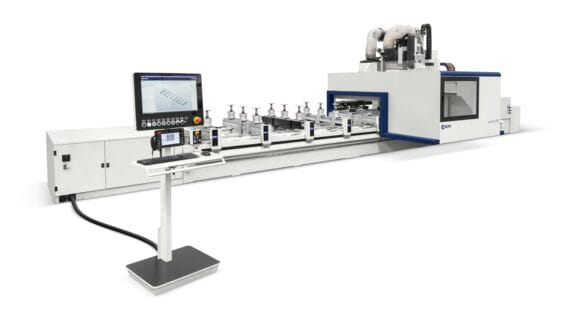

accord 500 is the machining center that combines compactness, ease of use and high technology in doors, windows, stairs and solid wood elements machining. accord 500 is also available in the PRO-SPACE version without perimeter protections, ideal for companies that do not have a great deal of space available, but do not want to compromise on high performance.

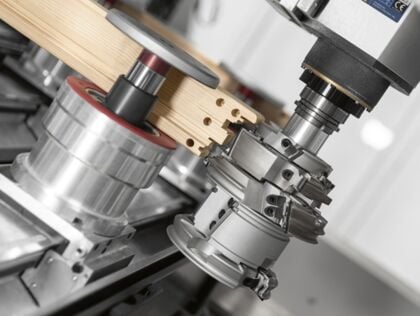

Speed and precision even in the most demanding operations thanks to the new KPX 5-axis operating unit with 17kW electrospindle that further increases the routing speed which now exceeds 15 m/min.

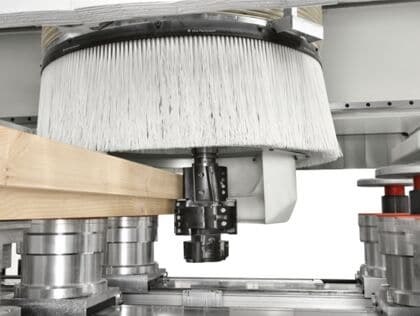

Efficient dust extraction system
in any condition thanks to the new chip conveyor device automatically positioned according to the machining program.
FLEXIBILITY AND INNOVATION

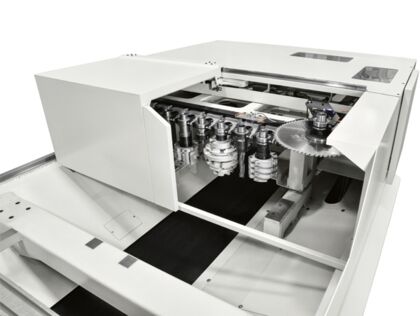

Up to 102 tools always available on board with the new integrated CADDY 35 tool changer: it plays the dual role of tool changer and "warehouse" serving the other on-board tool changers.
|X-Y-Z axes dimensions||mm||3715 x 1600 x 300
5515 x 1600 x 300
6715 x 1600 x 300
|X-Y-Z axes max. speed (PRO-SPACE)||m/min||25-80-45|
|X-Y-Z axes max. speed (PRO-SPEED)||m/min||90-80-45|
|5 axes electrospindle motor power (max.)||kW (hp)||17 (23)|
|3/4 axes electrospindle motor power (max.)||kW (hp)||21 (28,5)|
|5 axes electrospindle rotation speed (max.)||rpm||24000|
|3/4 axes electrospindle rotation speed (max.)||rpm||24000|
|TRB side tool changer||positions||11|
|CADDY side tool changer||positions||35|
|RAPID rear tool changer||positions||16|
|TRC rear tool changer||positions||32|
|FAST on-board tool changer||positions||16|
|VELOCE on-board tool changer||positions||16|
|Vertical and horizontal spindles (up to)||n.||26|
|Rotation speed (max.)||rpm||8000|
|Integrated saw blade||Ø||125|
