Perfect surface, practical and ergonomic
The formula f 1 and formula f 2 models feature long, cast-iron work tables and a large anodised aluminum fence. An optimum high-quality finish is guaranteed even on large size work pieces.
High quality finish

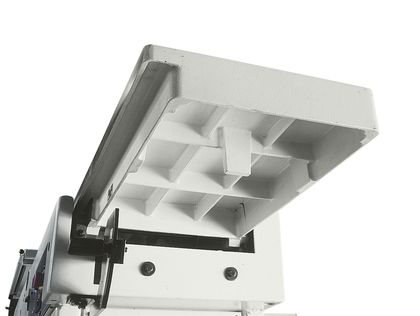

The ribbed work tables structure with the feeding by means of a parallelogram mechanism on connecting rods always gives the same distance between the cutterblock and the table. This enables a quick and easy adjustment of the stock removal rates. The strong cast iron structure of the cutter block with 4 knives grants optimal finish and absence of vibration.

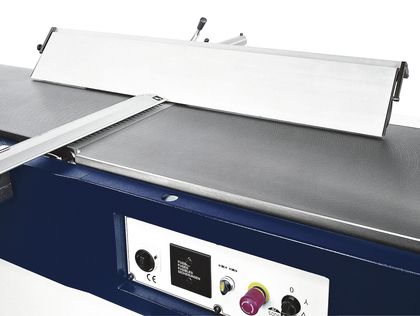

The surfacing fence is mounted on a precision mechanism enabling accurate angle adjustment from 90° to 45°.
“Xylent” spiralknife cutter block with 3 spiralknives. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
|formula||f 2||f 1|
|Maximum stock removal||mm||8||8|
|Total width of working tables||mm||2720||2610|
|Motor power with direct motor start (standard)||kW||5||5|
