Edge banders, squaring edge banders - Single-sided automatic edge banders - return conveyor
Photos may include optional equipment.

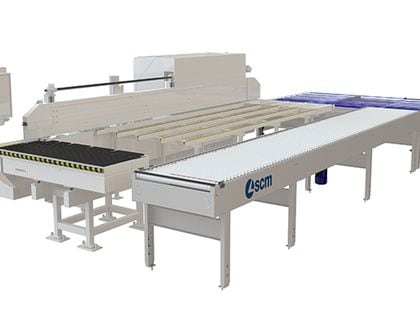

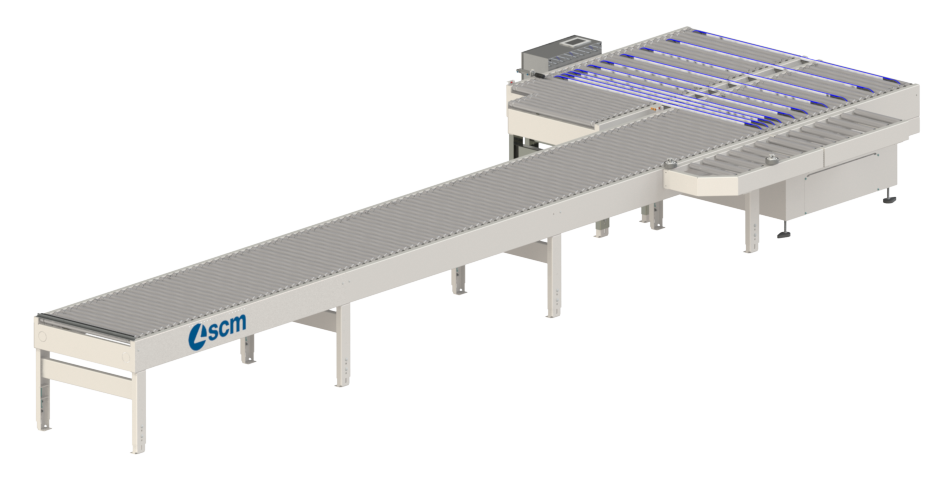

SCM is pleased to introduce a standard ERC series conveyor to be paired with all edgebander models. The edgebander, coupled with an ERC return conveyor, streamlines workflow and creates an efficient and cost-effective solution to handling panels without the need for an additional operator.

The result is labor savings, increased machine efficiency, reduced handling damage and less rejects. Independently adjustable speed control of the receiving table, transfer belts, and return conveyor allow the operator to customize settings for a perfectly balanced system regardless of the panel size.

Additional options include the panel kicker, panel rotator, panel exit assist and panel support rollers.



Additional Options:

PANEL KICKER

Angles narrower panels, ensuring transfer belts engage the workpiece with the ability to adjust the operating parameters based on process needs in real-time.

PANEL ROTATOR

Allows conveyor to accommodate longer panel lengths by Rotating panels to the next edge for banding, eliminating the need for manually rotating large panels.

PANEL EXIT ASSIST

Eliminates risk of a deadzone developing at the outfeed of the edgebander for especially small panels. Provides an increased reliability and repeatability of transfer from the edgebander to conveyor by positively engaging panels with a driven belt

PANEL SUPPORT ROLLERS

Ideal for long, thin panels that have a tendency to deflect The support rollers allow returning panels to pass under panels being banded, when included with the panel rotator.

Advantages

MACHINE MATE TRANSFER ROLLER SECTION

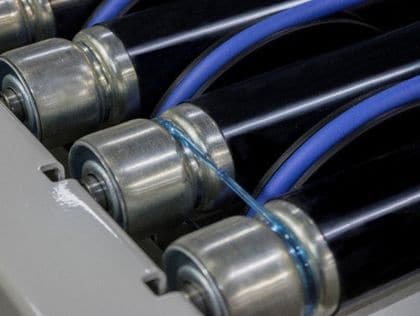

Allows for seamless interfacing with SCM edgebanders facilitating smooth transitions from edgebanding to conveying. Polymer coated steel rollers provide strength and stability while maintaining a non-marking surface for panel contact.

INTUITIVE TOUCHSCREEN
Allows for independent speed adjustment of the outfeed, transfer belts and return conveyor sections with a 7” operator panel and PLC on board for conveyor sequencing.

FABRICATED STEEL FRAME WITH BOLT DOWN FEET
Ensures a stable base for conveyance. Adjustable leg sets allow for flexibility when leveling conveyor.

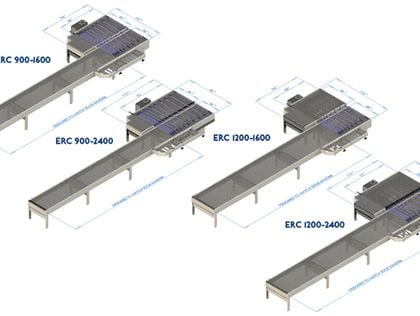

MULTIPLE RECEIVING TABLE LENGTHS AND WIDTHS
Allows for a comprehensive range of panel sizes. Return conveyor lengths are tailored to the SCM edgebander model.
