brembana impact
(512) 931-1962

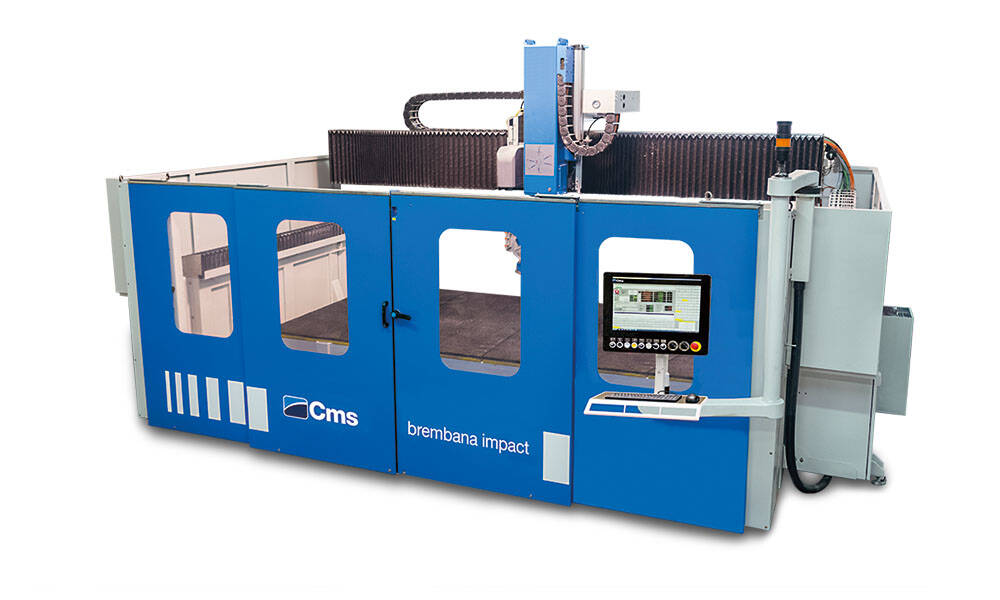

Monoblock 5-axis CNC bridge saw
brembana impact is the right choice for workshops that require a complete machine with minimal investment. It can carry out rectangular, shaped, vertical or inclined cuts, 3D profiling, pocketing, and lettering operations.
This machine is popularly used for cutting marble slabs, granite, synthetic stone, ceramic, and solid stone blocks as well. The monoblock support structure does not require any foundations, which minimizes both the installation and set-up cost.
The weight of the machine, up to 5.7 tons, ensure perfect rigidity for the production of:
- kitchen countertops
- vanity tops
- wall panels for interiors and exteriors
- flooring
- doorsteps, staircases and thresholds
- street furniture
UNRIVALLED MECHANICS

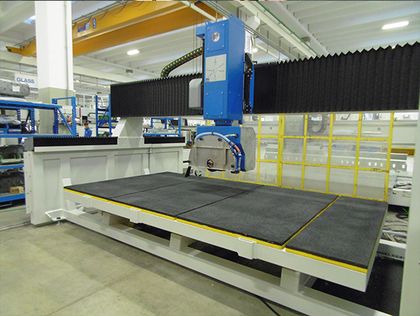

The weight of the machine up to 5.700 kg ensures the optimal absorption of the stresses derived from machining, guaranteeing a high constant precision over time. This machine base fixed directly to the ground, without the need of building work, increases the stability and performance.
MOTION ACCURACY

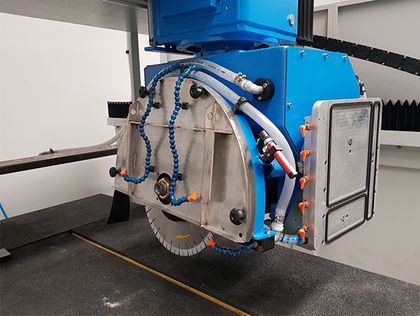

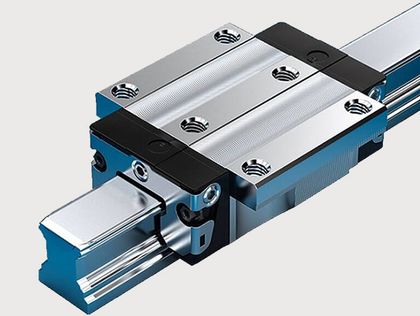

All movements are powered by brushless motors coupled with a precision reduction gear and transmitted through rectified and tempered guides and ball bearings.
MAXIMUM FREEDOM FOR YOUR PROJECTS
Rotary axes are fully interpolated with linear axes: the machine can therefore be transformed into a 5-axis machining center if necessary.
| X axis stroke | 3800 mm / 150 in |
| Y axis stroke | 2240 mm / 88 in |
| Z axis stroke | 400 mm / 16 in |
| Disk diameter | 350 ÷ 625 mm / 14 ÷ 25 in |
| Motor | 14,3 kW / 19.5 HP - 18,5 kW / 25 HP |
| Motor revolution | 0÷5000 rpm (optional 0÷6000 rpm) |
| Maximum working thickness (with 90° disk Ø 625 mm) | 200 mm / 8 in |
| Maximum working thickness (with 45° disk Ø 625 mm) | 130 mm / 5 in |
| Head revolution (4th axis) | ± 270° (540°) |
| Head inclination (5th axis) | +8° -90° |
| Workbench dimensions | 3600x2500 mm / 142x98 in |
| Minimum space required for installation | 6300*x4000x3100 mm / 248x157x122 in |
| Overall machine weight | up to 5.700 kg / 12.500 lb |
* Excluding space to access the electrical panel
