Specifically created for long-fibre composite material thermoforming, it works with a clamp torque up to 100 tons, ensuring the best moulding result also in case of complex shapes and tight corners. Extremely versatile and easily manageable by a single operator, it reduces the setup time and allows rapid production changes.

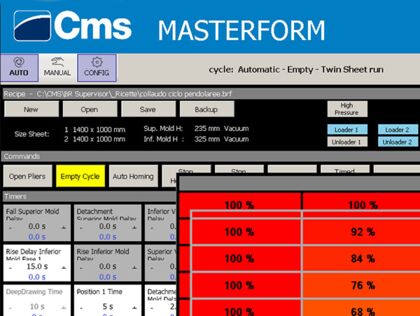

THERMOFORMING MADE EASIER
Simple management of all process parameters thanks to a userfriendly software specifically developed for thermoforming process. It shorter by 53% learning times compared to different solutions. All variables are saved in a single program ensuring the same results even after years.

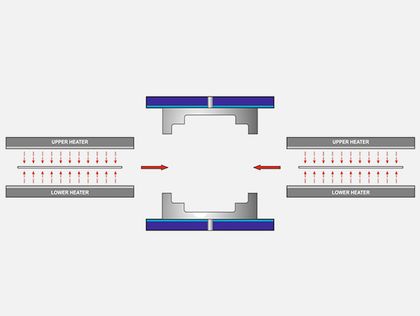

TWINSHEET TAILOR MADE
Twinsheet process is possible thanks to two heating stations. Each heating station is equipped with a double (upper and lower) heating system for a total independent management of the two sheets, ensuring optimal heating even with different thicknesses and colors, allowing total access to the internal surfaces for installing internal parts or cores.

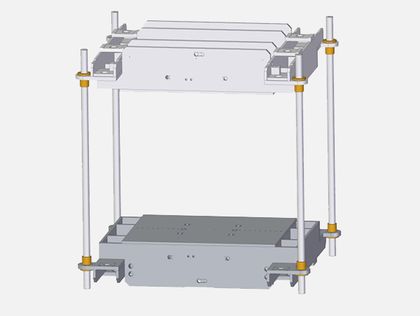

BEST-IN-CLASS ACCURACY AND PERFORMANCES
Mould tables driving system with shared columns that guarantee perfect alignment without any centering devices. Tables movement is made with 8 brushless motors with an addition of a hydraulic interlocking system that allows to reach high closing force values up to 120 tons adjustable by software.

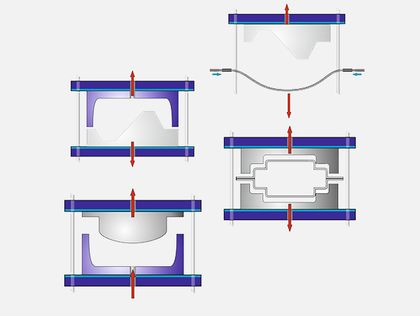

FLEXIBILITY ALL AROUND
Single plate mode is possible with vacuum and pressure forming processes both in standard mode or pendular cycle with the use of the second heating station to heat up the sheet while forming and cooling the previous one. In this way you can reach productivity values up to 63% more than the single station version. Possibility of sheet stretching during heating and/or forming.
|Mould size range|
|X (mm)||min 1500 - max 3000|
|Y (mm)||min 1200 - max 2000|
|Mould height max (mm)||400|
|Max clamping force||120 tons|
|Full machine setup||< 30 min|
|Processes||Vacuum forming, pressure forming, twinsheet forming|
