Movable-bridge Movable-bridge machining center specifically designed for high speed processing of plastic and composite materials, providing exceptional motion dynamics to ensure high productivity. The advanced structural design avoids machining vibration and achives excellent finishing quality:

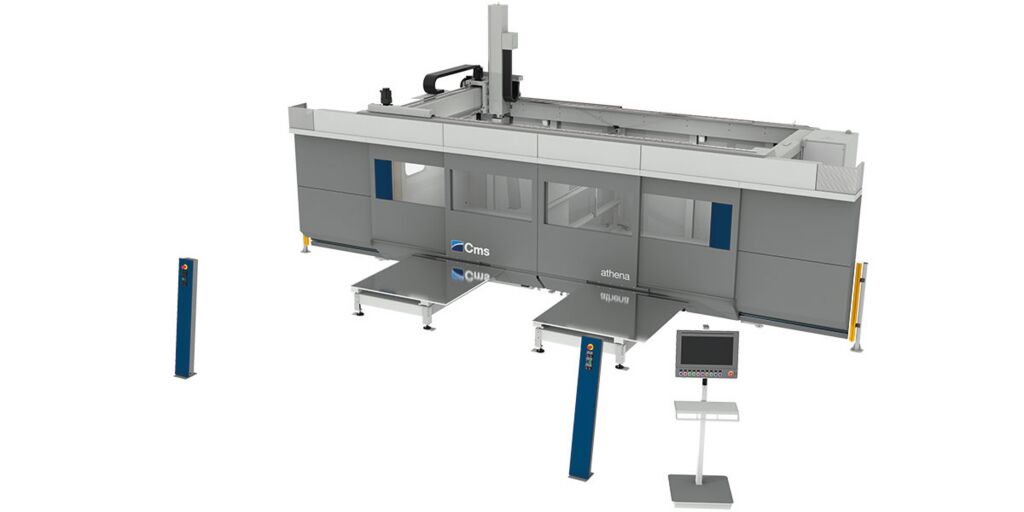

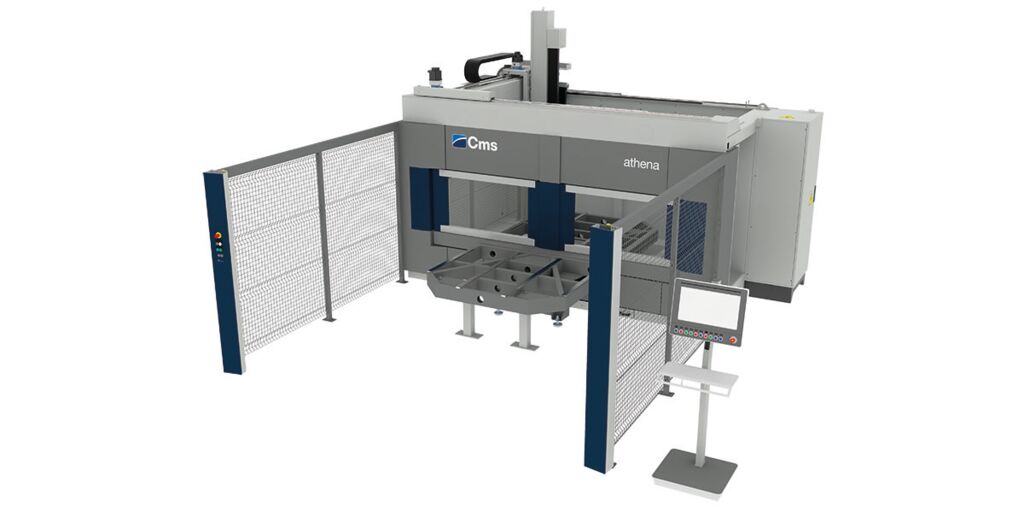

athena is available also with rotating tables (TR) and with removable tables APC (Automatic Pallet Change).
FASTER PROGRAMMING AND CONTOURING

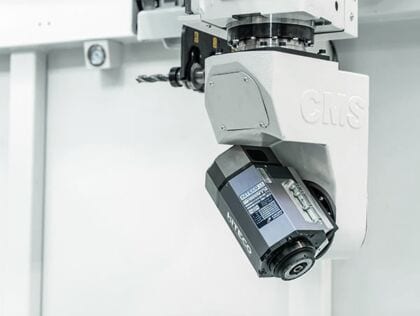

Avoids any repositioning operations thanks to the CX5 operating unit, characterized by the the largest rotary XY axis on the market.
15% reduction in cutting times and programming of contouring cuts
REDUCTION IN CYCLE TIME RESPONSIVENESS AND SPEED WHERE AND WHEN NEEDED
Dedicated dynamics, during both acceleration and braking, for all cutting cycle phases.
13% reduction in comprehensive machining times due to shorter repositioning spaces required between one phase and the next.
OPTIMIZATION AND USE OF WORK VOLUMES WITH NON-CONFIGURABILITY LIMITATIONS
Minimum space taken up and maximum use of factory space in proportion to workable cubic space for all versions. Its compact, hard structure was designed to grip to the working stroke as much as possible. Pendulum processing available with Athena’s vast configurability, extractable (APC) and rotating (TR) tables make it the perfect solution for trimming plastic materials.
|STROKES AND SPEEDS|
|WORKING UNITS AND ELECTROSPINDLES|
|MODEL||NOMINAL POWER (S1)||MAX POWER (S6)||MAX RPM||TORQUE (S1)||TOOL HOLDER||COOLING|
|CX5||8,5 kW||10 kW||24000 rpm||6,8 Nm||HSK 63F||Liquid|
|CX5 10||10 kW||12 kW||24000 rpm||8 Nm||HSK 63F||Liquid|
|CX5 8||8 kW||9 kW||40000 rpm||5,2 Nm||HSK 32E||Liquid|
