vm 30k
(512) 931-1962
Vertical CNC machining center for steel processing

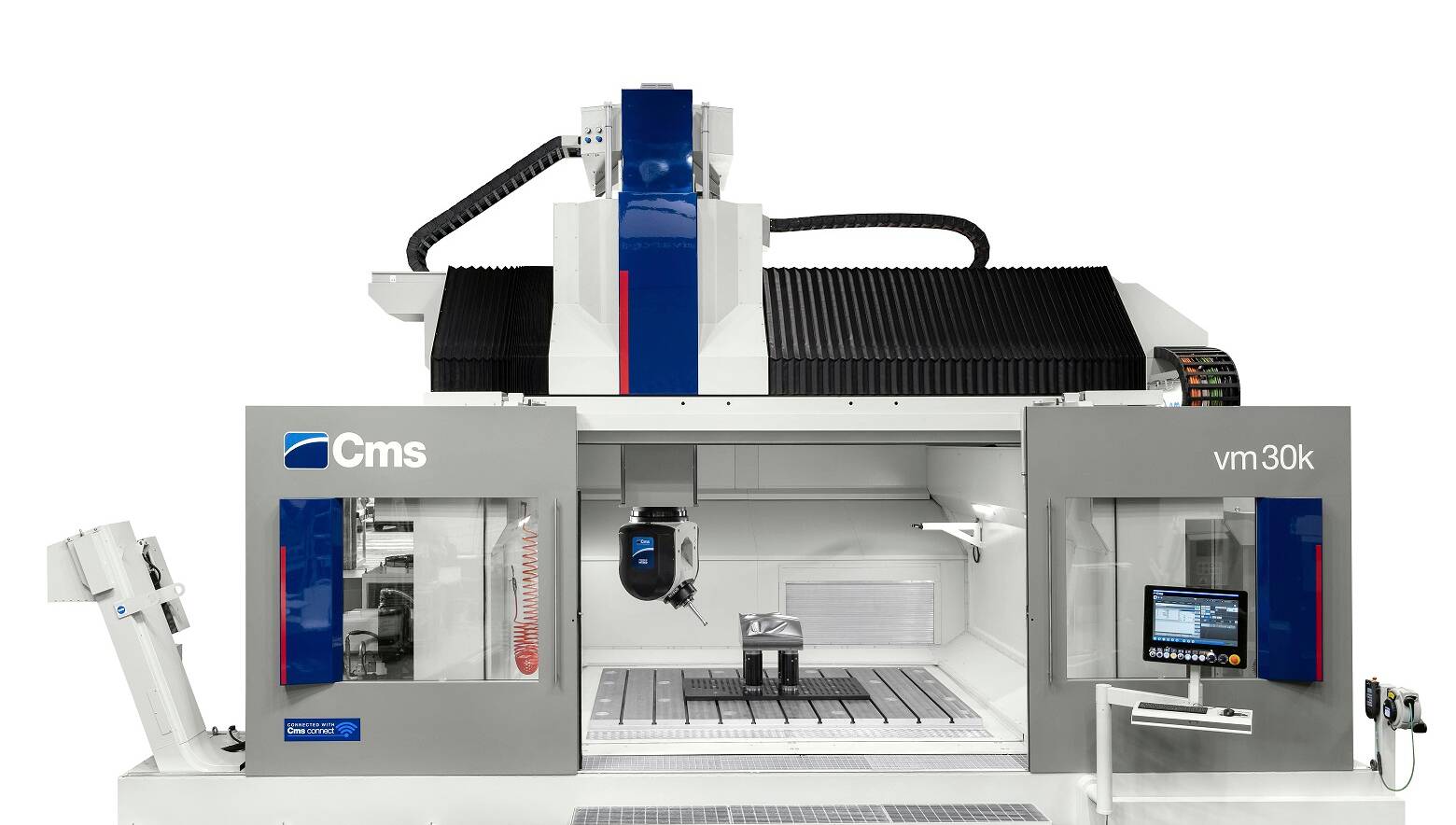

The CMS vm 30k vertical CNC machining center is the perfect solution for milling complex three-dimensional parts requiring precision, repeatability and an excellent surface finish with minimum cycle times!
Its accurate design ensures that first-class rigidity is achieved, making the most of the range of operating units and electrospindles available.
The machine has been designed and produced with a monobloc structure to meet the demands of the aerospace, automotive, mould making and engineering industries, guaranteeing heavy roughing, semi-finishing and finishing of small-large components in Steel, Aluminum and Composite Materials.

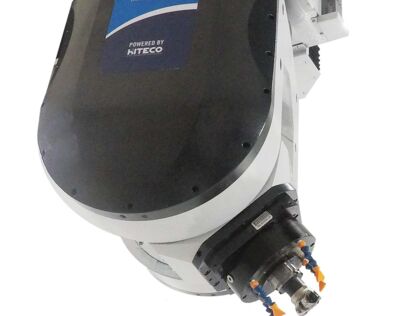

NEW! New TILT M head with 3 torque motors with a braking torque of 4000 Nm and a wide range of electrospindles with rated powers up to 47 kW at 15,000 rpm HSK A 100 and 24,000 rpm HSK A 63. The new head, coupled with a 70 bar pump for internal cutting fluid flow, can perform deep drilling and significant material removal, giving the customer an operating unit for every need.

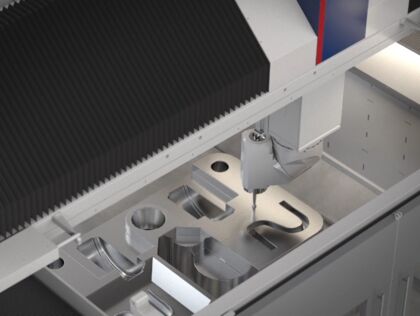

SUSTAINABLE INTEGRATION: Monobloc machine with integrated table, 10000 kg/m2 load capacity, supported by dedicated levelling devices. There is no need for heavy-duty foundations, resulting in shorter installation and commissioning times.

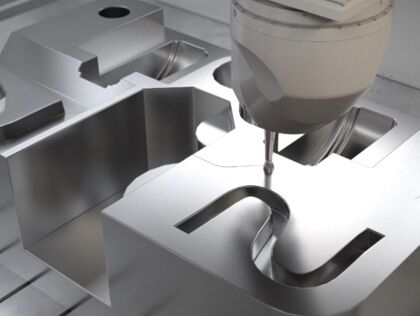

TOP OF THE RANGE FINISHING: Very strong structures and 4 guides on the longitudinal axis provide high geometric precision to ensure perfect machining in terms of accuracy and repeatability. The dynamic, fluid kinematic chain can achieve excellent finishing quality with improved low-backlash power reducers.
