MAIN TECHNICAL DATA

• Max. useful spindle length -  140  mm
• Spindle speed -  3000/4500/6000/7000/10000 rpm
• Max. diameter of the profiling tool - 250 mm
• Max. tool diameter retractable under the table at 90° - 300  mm
• Max. diameter of the tenoning tool CE (NO CE) - 300 mm
• Three-phase motor - 11 HP

ADVANTAGES

1. Set up precision and reliability - The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine.

2. Spindle moulder fence with mechanical programming maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.

3. Easy access to the spindle to carry out different machining with the optional ""Flex"" system for the rapid exclusion of the fence from the working table

SERIAL NUMBER: AB00037297

SERIAL NUMBER: KK00049052

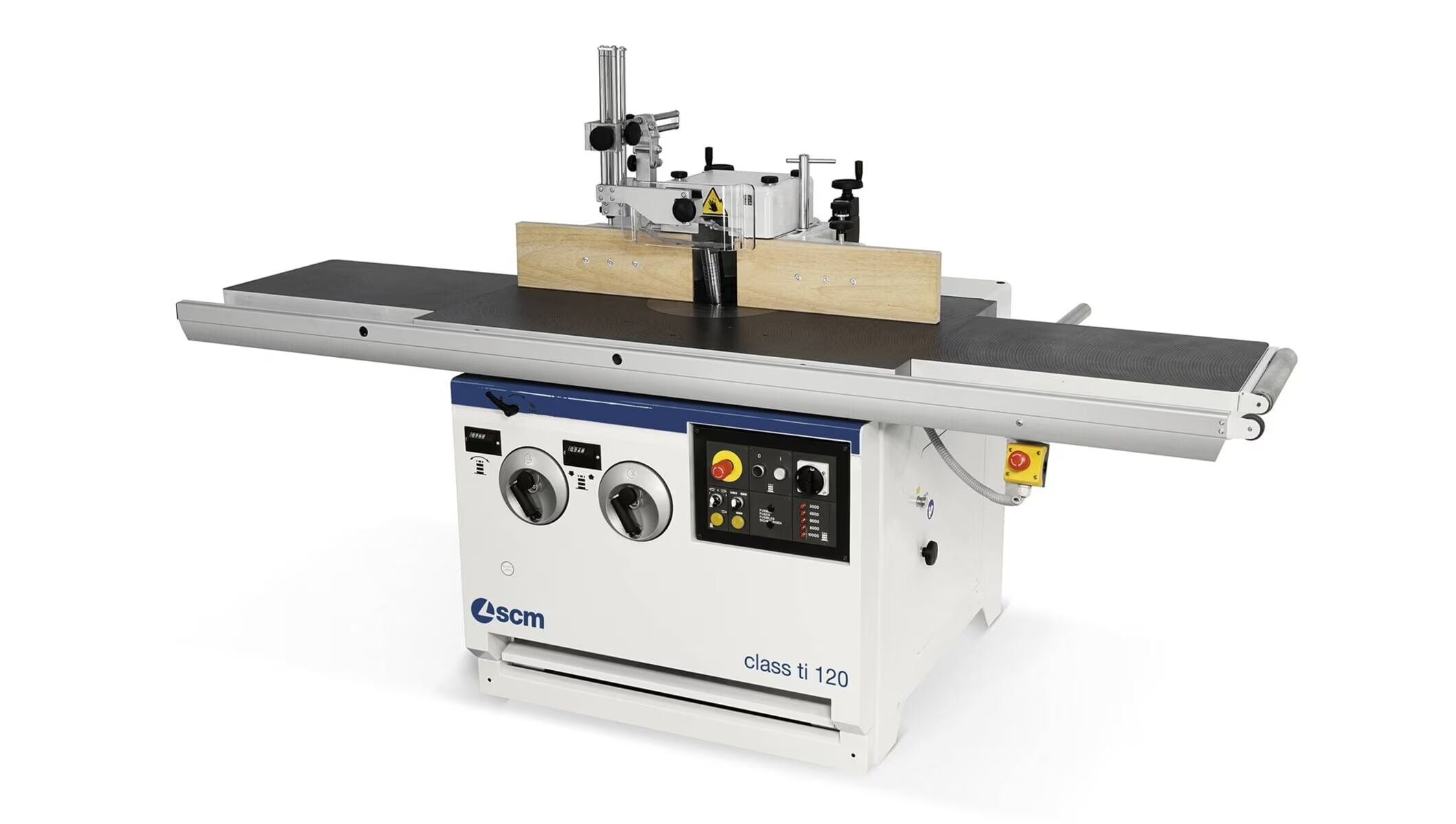

MAIN TECHNICAL DATA

• Max. useful spindle length -  127 mm
• Spindle speed - 4000/7000/9000/12000 rpm
• Max. diameter of the profiling tool - 240 mm
• Max. tool diameter retractable under the table at 90° - 240 mm
• Max. diameter of the tenoning tool CE (NO CE)  - 300 mm
• Three-phase motor - 11 HP


ADVANTAGES

1. Set up accuracy and reliability. The operator easily adjusts all movements using a hand wheel with mechanical decimal readouts located on the machine front.

2. Spindle moulder fence with mechanical programming: maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.

3. Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The 4 standard speed are ideal for any type of machining, from moulding to routing and tenoning, with the possibility to fit tools up to 320 mm of diameter (300 mm no CE).

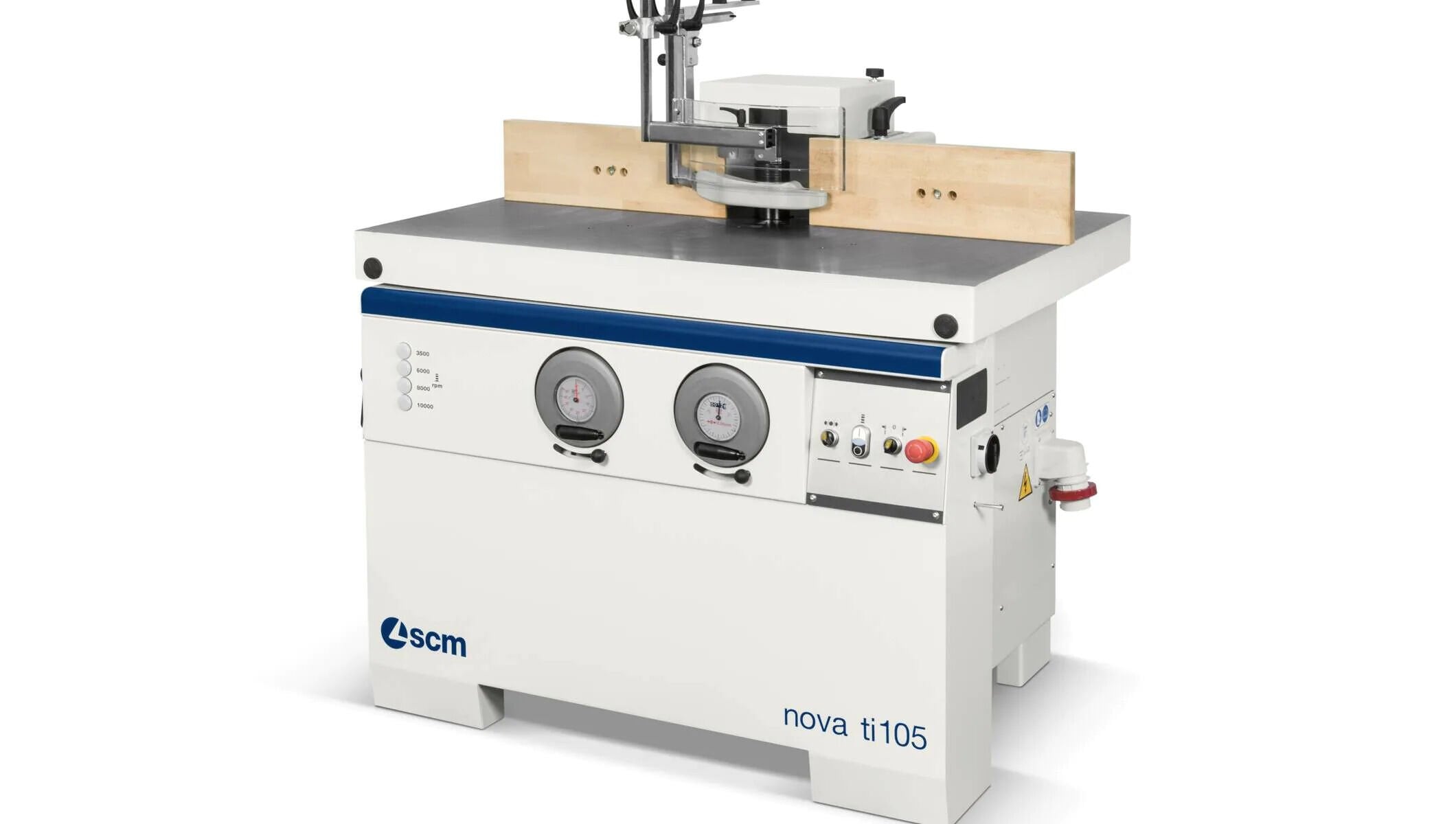

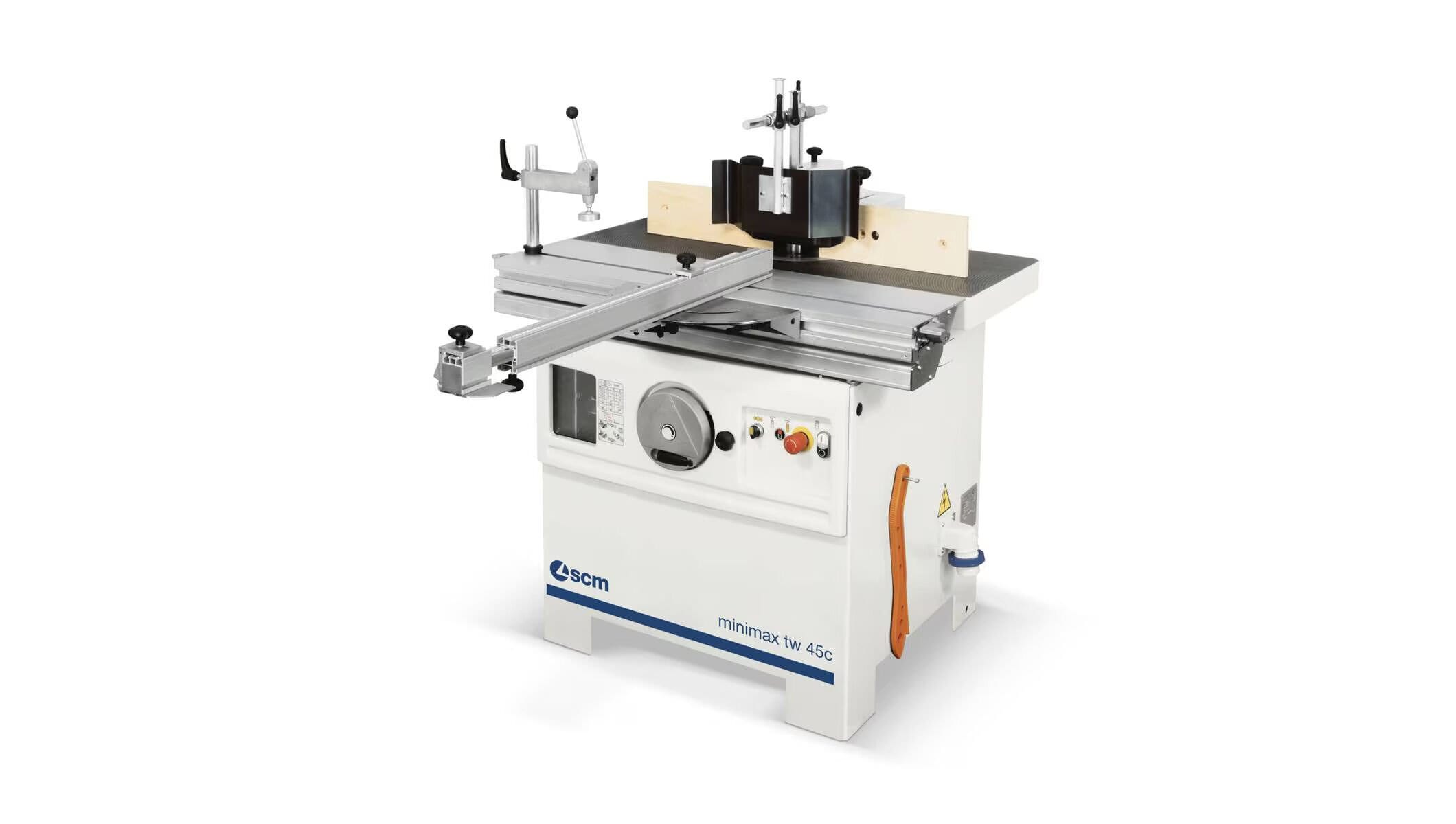

MAIN TECHNICAL DATA

• Max. useful spindle length -  100 mm
• Spindle moulder speed (a 50 Hz) - 3500/7000/10000 giri/min
• Max. tool diameter when profiling - 210 mm
• Max. tool diameter lowered under the table at 90° - 180 mm
• Max. tool diameter when tenoning - 275 mm
• Three-phase motors starting from kW/Hz - 5 / 50


ADVANTAGES

1. Professional and very sturdy - The unit has a cast iron structure. It is closed off by a cast iron “cup” to protect mechanical components inside the machine from sawdust, shavings and dirt. Precise and safe machining with the spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers.
2. High tech accessories - As option it is available the spindle moulder hood that uses a system for adjusting the guides with a rack and it is fitted with a mechanical digital readout. Thanks to the system of memories the hood can be removed and repositioned without losing the machining position. The maximum tool diameter during moulding operations is 240 mm.
3. Customisable for any requirement - The table extensions at outfeed and infeed (options) and the telescopic front support with support rollers make easier the machining of large dimensions work pieces.

SERIAL NUMBER: KK00049058

SERIAL NUMBER: KK00049061

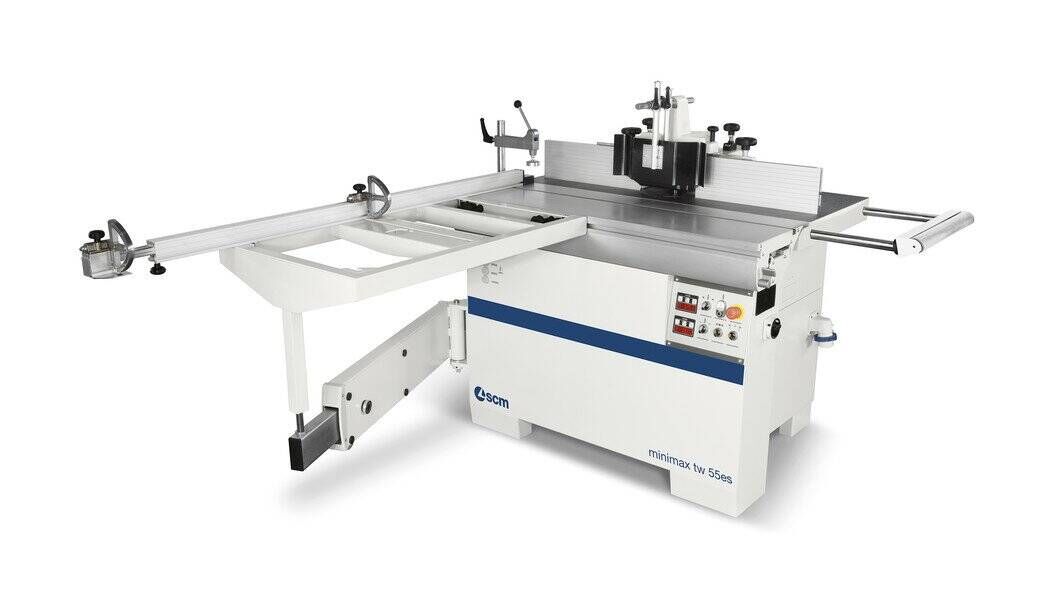

MAIN TECHNICAL DATA

• Surfacing tables total length - 125 mm
• Spindle moulder speed (a 50 Hz) - 3500/6000/8000/10000 rpm
• Max. tool diameter when profiling - 210 ÷ 240 mm
• Max. tool diameter lowered under the table at 90° - 240 mm
• Max. tool diameter when tenoning -  320 (300 no CE) mm
• Three-phase motors starting from kW/Hz - 5 / 50

ADVANTAGES

1. Unsurpassed moulding - Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The 4 standard speed are ideal for any type of machining, from moulding to routing and tenoning, with the possibility to fit tools upto 320 mm of diameter (300 mm no CE).
2. High-tech accessories - As option it is available the spindle moulder hood that uses a system for adjusting the guides with a rack and it is fitted with a mechanical digital readout. Thanks to the system of memories the hood can be removed and repositioned without losing the machining position. The maximum tool diameter during moulding operations is 240 mm.
3. Unrivalled cutting finishing - Optimal support also to larger pieces, with the new sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting.

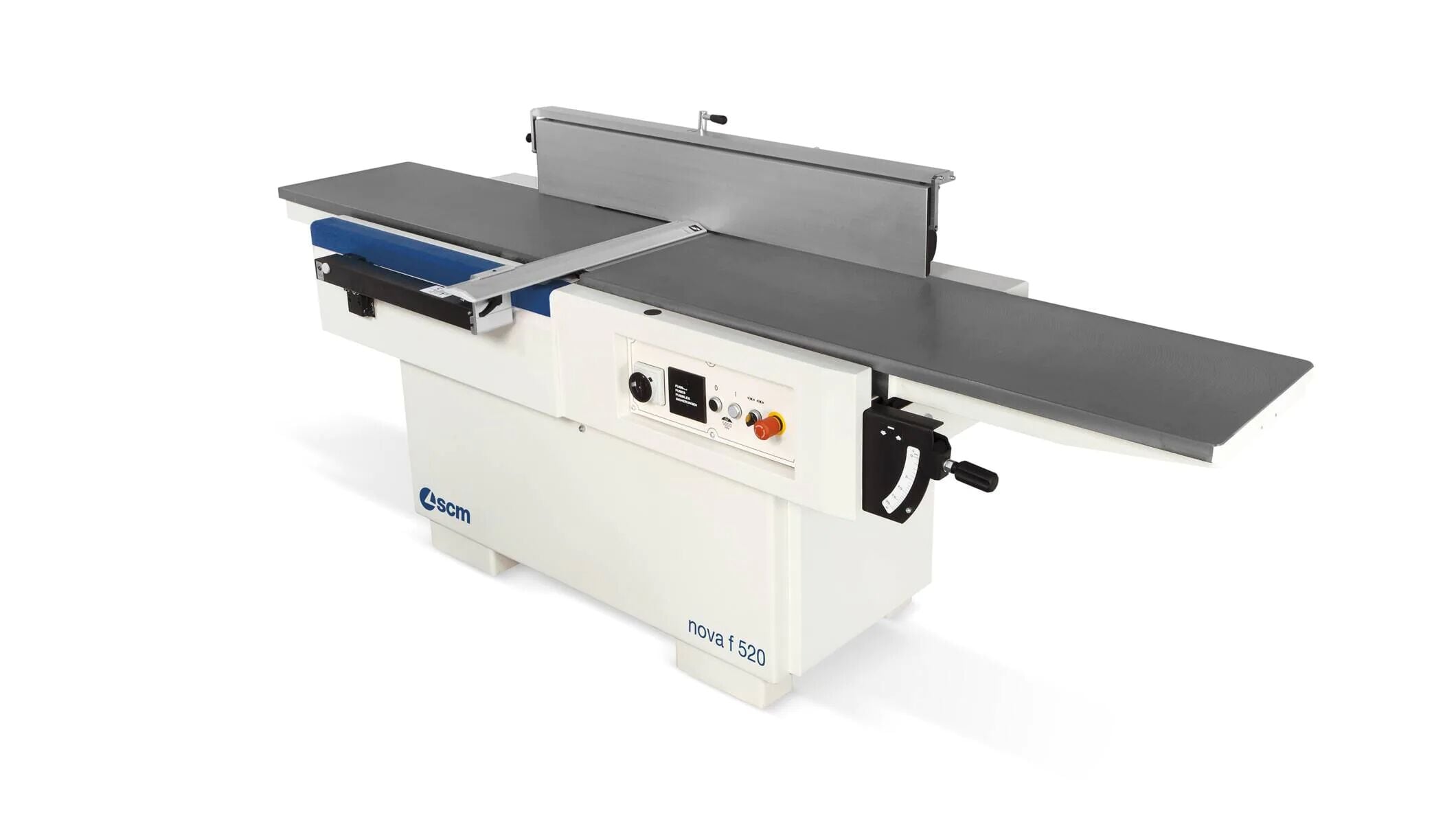

MAIN TECHNICAL DATA

• Cutterhead working width - 520 mm
• With TERSA Straight-knife Cutterhead:
  Cutterblock diameter / n° of standard knives:- 120/4 mm/n°
  Dimensions of standard knives  -  520 x 35 x 3  mm
• With XYLENT Spiral Helical Cutterhead:
  Cutterblock diameter / n° of knives - 120/84  mm/n°
  Dimension of standard knives - 15 x 15 x 2.5 mm
• Jointer bed length -  2750 mm
• Three-phase motor -  8 HP
• Max. stock removal -  8 mm

ADVANTAGES

1. SURFACE FENCE: High rigid fence with a smooth movement thanks to the central locking on round bar. The graduated scale facilitates the operator in positioning the guide to the required tilting.
2. SYSTEM ON CONNECTING RODS: The system guarantees the maximum movement fluidity and avoids deformations of the work table. This guarantees maximum stability, reliability and ergonomics.
3. EFFECTIVE EXHAUST SYSTEM : The exhaust hood on the cutterblock allows improved efficiency and provides high quality machining.

SERIAL NUMBER: AB00037303

SERIAL NUMBER: AB00037306

MAIN TECHNICAL DATA

• Cutterhead working width - 520 mm
• With TERSA Straight-knife Cutterhead:
  Cutterblock diameter / n° of standard knives: - 120/4 mm/n°
  Dimensions of standard knives - 520 x 30 x 3 mm
• With XYLENT Spiral Helical Cutterhead:
  Cutterblock diameter / n° of knives - 120/84  mm/n°
  Dimension of standard knives - 15 x 15 x 2.5 mm
• Min. ÷ max. working height on thicknesser - 3.5  mm
• Feed speed on thicknesser - 5/8/12/18 m/min
• Three-phase motor - 11 HP
• Max. stock removal - 8 mm

ADVANTAGES

1. INTERCHANGEABLE ROLLERS: Quick and easy changeover of the rollers that allows the operator to configure the machine drive function in case of special requirements such as minimum removal of fine wood and/or batches where multiple pieces of different thicknesses are processed.
2. WORK TABLE MOVEMENT: The 4 screws with a large diameter combined with the 2 side linear guides ensure worktable stability eliminating the necessity of  locking in position. The integrated protections guarantee high precision and reliability over time.
3. FEEDING ROLLERS ON CONNECTING ROADS: The stopping of the work piece and the presence of notches on its surface are eliminated due to the movement system on all rollers that allows their vertical displacement by rotation and the best linear feeding.

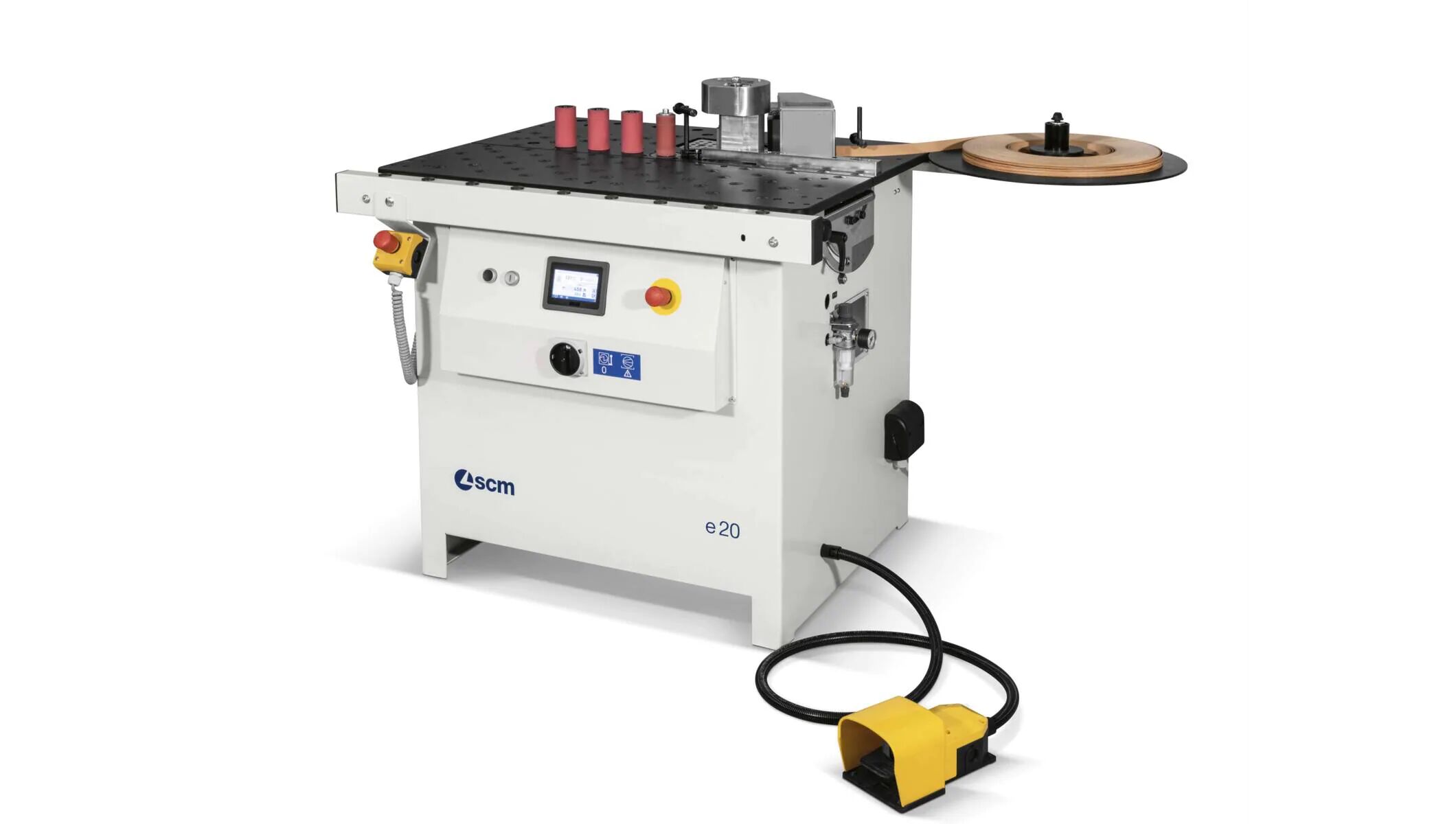

MAIN TECHNICAL DATA

• Min. ÷ max. edge thickness - 0.4 ÷ 3 mm
• Min. ÷ max. edge height - 10 ÷ 84 mm
• Min. ÷ max. panels height - 8 ÷ 80 mm
• Min. ÷ max. panels lenght/width - 290/50 mm
• Min. internal radius (concave), 0,4 mm thickness - 25 mm
• Min. external radius (convex), 0,4 mm thickness - 5 mm
• Feed speeds - 3 - 4 - 5 - 6 - 7 - 8 m/min

ADVANTAGES

1. 4,3" touch-screen electronic control - Simple and intuitive, it enables an easy selection of all the main functions.

2. Powered pressure roller - It facilitates the panel feeding during the machining.

3. Anti-scratch phenolic multilayer worktable - No surface damage to the work piece during machining thanks to the special worktable with modular holes complete with panel supports.

SERIAL NUMBER: AB00037298

SERIAL NUMBER: AB00037319

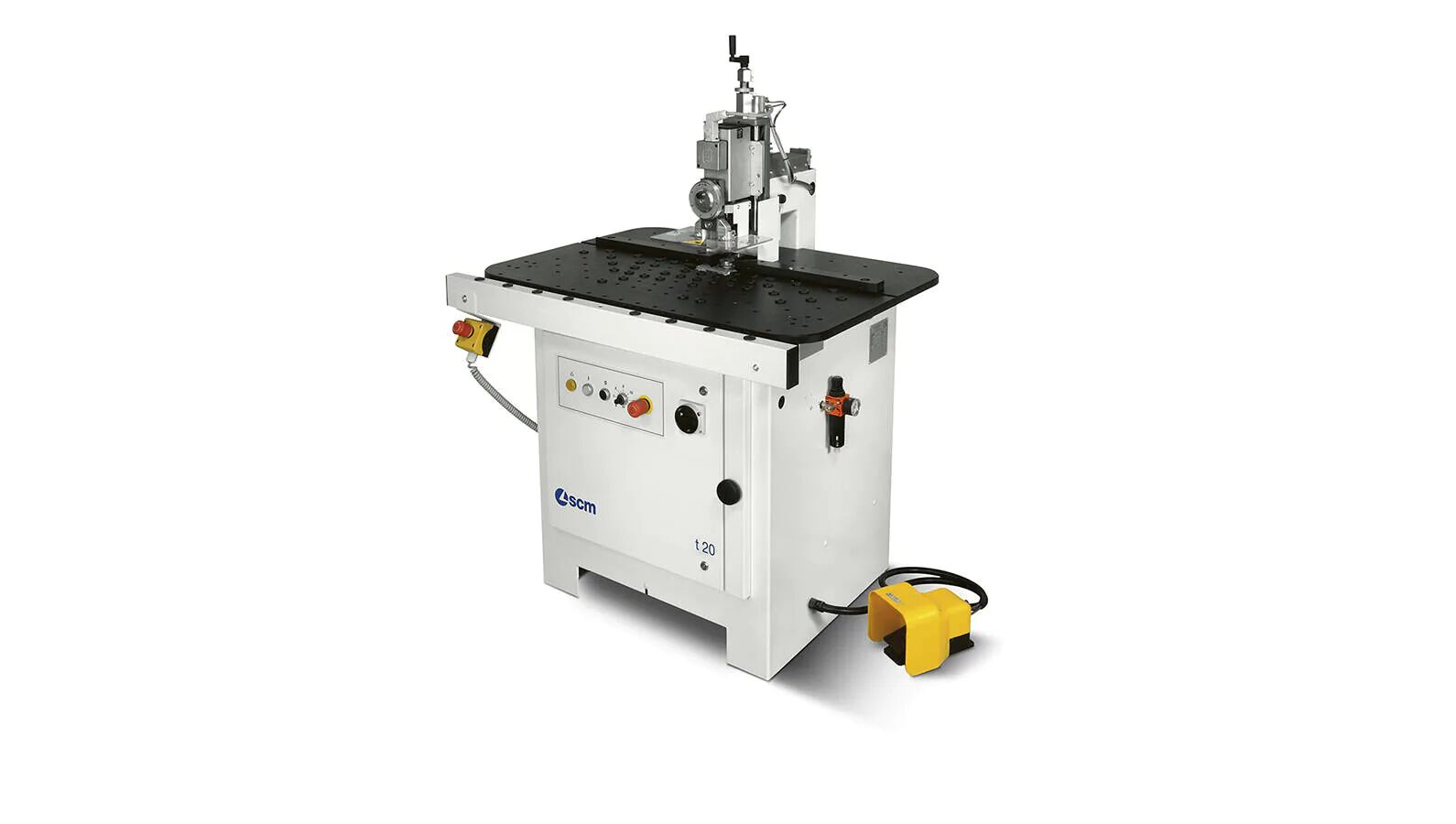

MAIN TECHNICAL DATA

• Max. edgebanding thickness - 4 mm
• Min. - max. panel height - 14 - 80 mm
• Min. panel length/width - 200/160 mm
• Minimum internal radius - 25 mm
• Variable cutters speed - 9000 - 15000 rpm

ADVANTAGES

1. Simple and precise setting up of the trimming group. The trimming adjustment is carried out in few seconds and without errors by means of the Scm exclusive device which provides a pivoting ring with a decimal dial which allows the adjustment of the vertical copier without using any tool.

2. Possibility to work panels with tilted edge up to 45°.

3. Interchangeable copying devices for a rapid and precise set up during machining changeover, eliminating the horizontal adjustment.

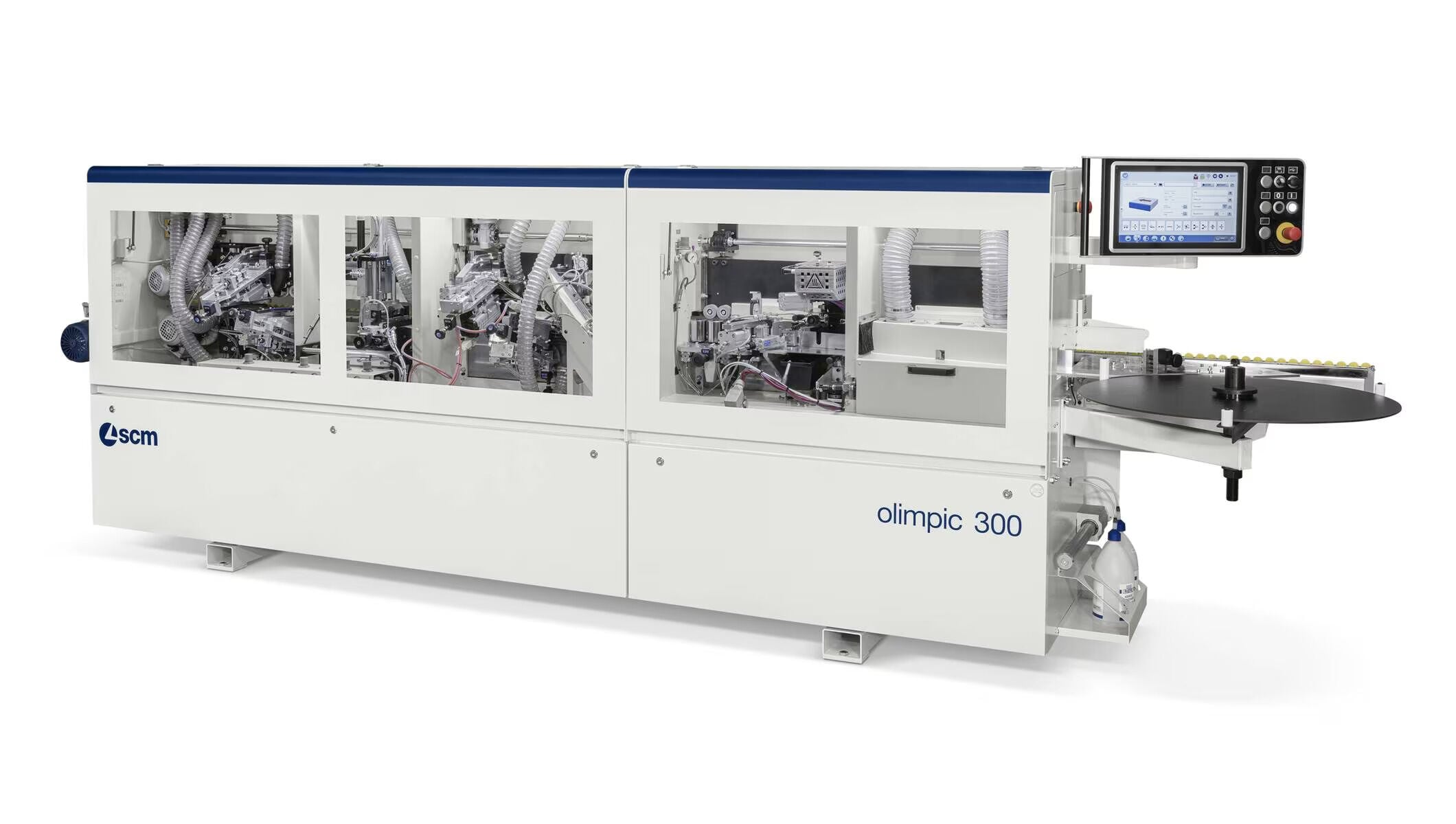

MAIN TECHNICAL DATA

• Edge thickness - 0,3 - 6 mm
• Panel thickness - 8 - 60 mm
• Minimum panel width - 60 mm
• Feed speed - 12 m/min
• Compressed air - 6 bar

ADVANTAGES

1. Quick and easy glue change, EVA and polyurethane, thanks to the "SGP-E" glue pot, for a perfect joint line.

2. Machining of 2 radii, each with dedicated tool, thanks to the Multiedge device present on all working units, including the rounding.

3. Large touch control panels and software Maestro active edge offer the operator an efficient and intuitive work experience, as well as providing connectivity and synchronization to company systems.

4. Automatic edge feeding outside the cabin to reduce setup times in total safety.

SERIAL NUMBER: AH00007195

SERIAL NUMBER: AB00037312

MAIN TECHNICAL DATA

• Edge thickness - 0,3 - 6 mm
• Panel thickness - 8 - 60 mm
• Minimum panel width - 70 mm
• Feed speed - 10 m/min
• Compressed air - 6 bar

ADVANTAGES

1. SGP-E glue pot: a single device for the spreading of both EVA and PUR glue is made possible by the non-stick treatment of the glue pot.  Excellent glue line thanks to the perfect dosage and the special spreading roller.

2. Easy adjustments of the operating units with numeric indicators for the changeover between machining 2 radii, thin and solid wood edges.

3. 45° chamfering, NO EDGE machining, different finishes on the top and bottom of the same panel are just some of the operations that can be performed by the olimpic 300. eye-S Compact console: control panel with 10"" or 15"" touch screen and Maestro active edge HMI for quick and easy operation of all machine functions.

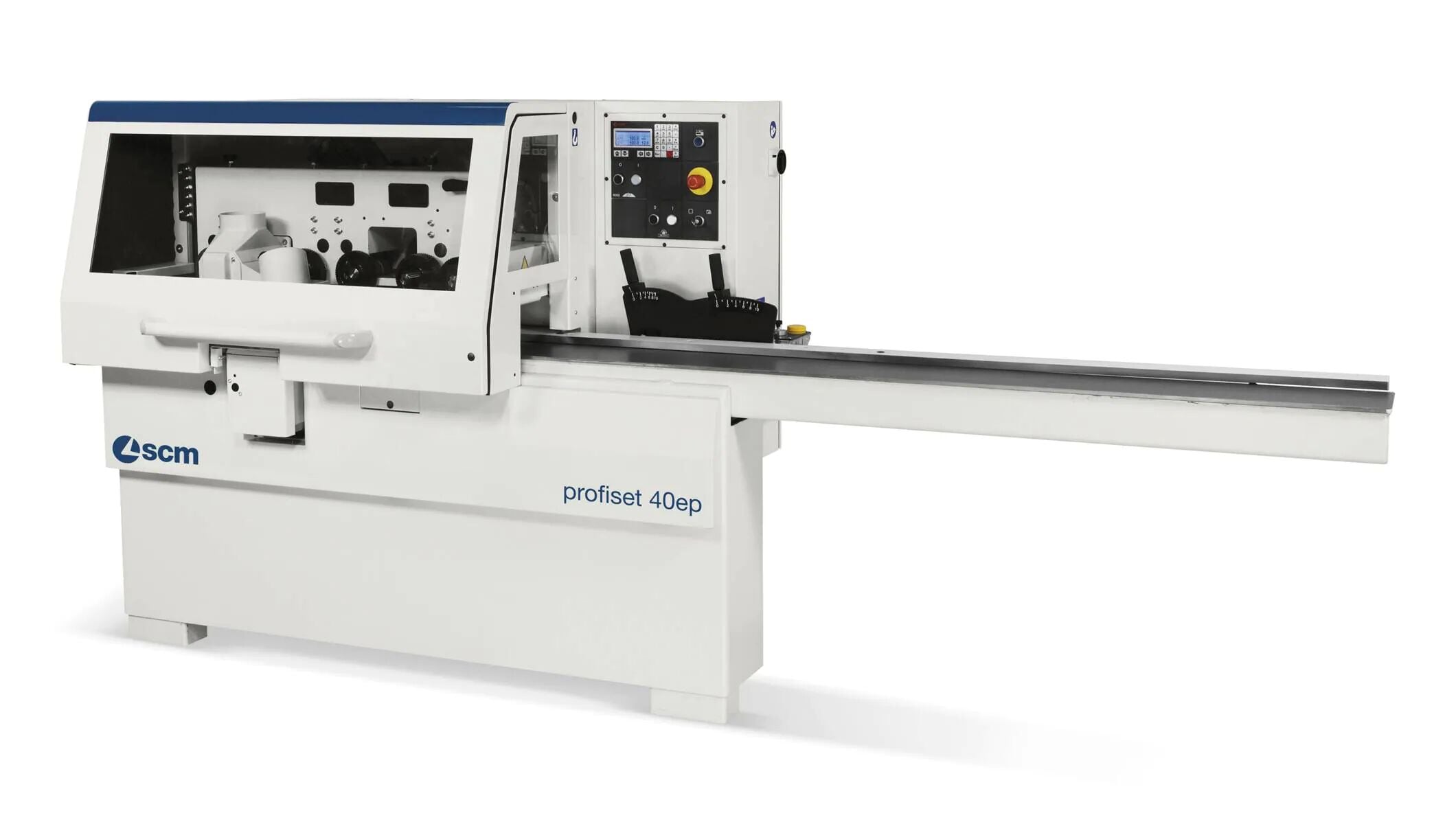

MAIN TECHNICAL DATA

• Min./max. working width (finished section) - 23/180 mm
• Min./max. working height (finished section) - 6/105 mm
• Feed speed - 6 - 12 m/min
• Spindles speed - 6000 rpm


ADVANTAGES

1. Ergonomics and safety - The operator easily manages every working operation due to all controls at your fingertips. The manual pump for the worktable lubrication positioned in the working area facilitates its use, assuring always the best smooth movement of the work piece.
2. La Profiset 40ep automatically controls the working sections. The feed speed is equipped with only one push button for the sequential motors start.
3. Idle roller placed on the table: the best finishing. Improoved feeding due to the idle roller placed on the outfeed table, typicla feature of industrial level machines.
4. “Ready” electronic control: work programming becomes simple and effective.

• Automatic positioning control of left vertical spindle and top horizontal spindle
• Feed speed programming
• Mode: manual, semi-automatic and automatic with memory capacity up to 99 programs
• Additional functions: claculator and hour counter.

SERIAL NUMBER: AB00037314

SERIAL NUMBER: SC25021155

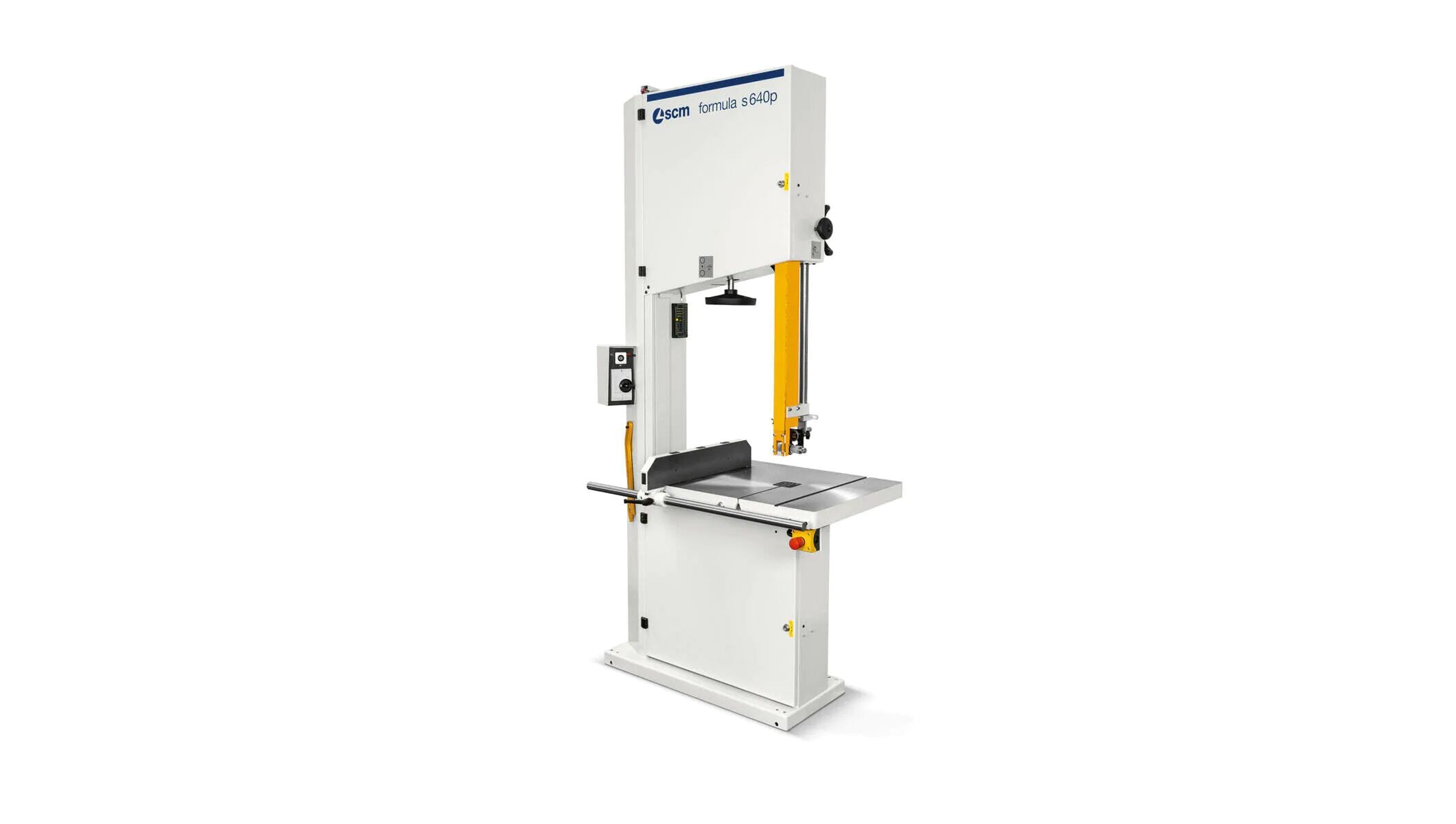

MAIN TECHNICAL DATA

• Worktable dimensions - 520 x 720 mm
• Cast iron saw wheels diameter - 540 mm
• Saw wheels width- 38 mm
• Max. cutting height - 500 mm
• Max. cutting width - 520 mm
• Worktable tilting (CE) - 0° ÷ 45° (20°)
• Max. blade length - 4560 mm
• Standard three-phase motor S1 400V 50Hz - 2,2  KW


ADVANTAGES

1. Solidity and sturdiness -The large dimensioned cast iron saw wheels, as well as the worktable, running on sealed for life ball bearings.

2. Safety first - Total safety machining with telescopic protections with rackwork to the blade.

3. Finish quality - A perfect cut result is assured by the top and bottom high precision blade guides.Practical machines suitable also to perform straight and tilted cuts on wood, plastic and aluminum.

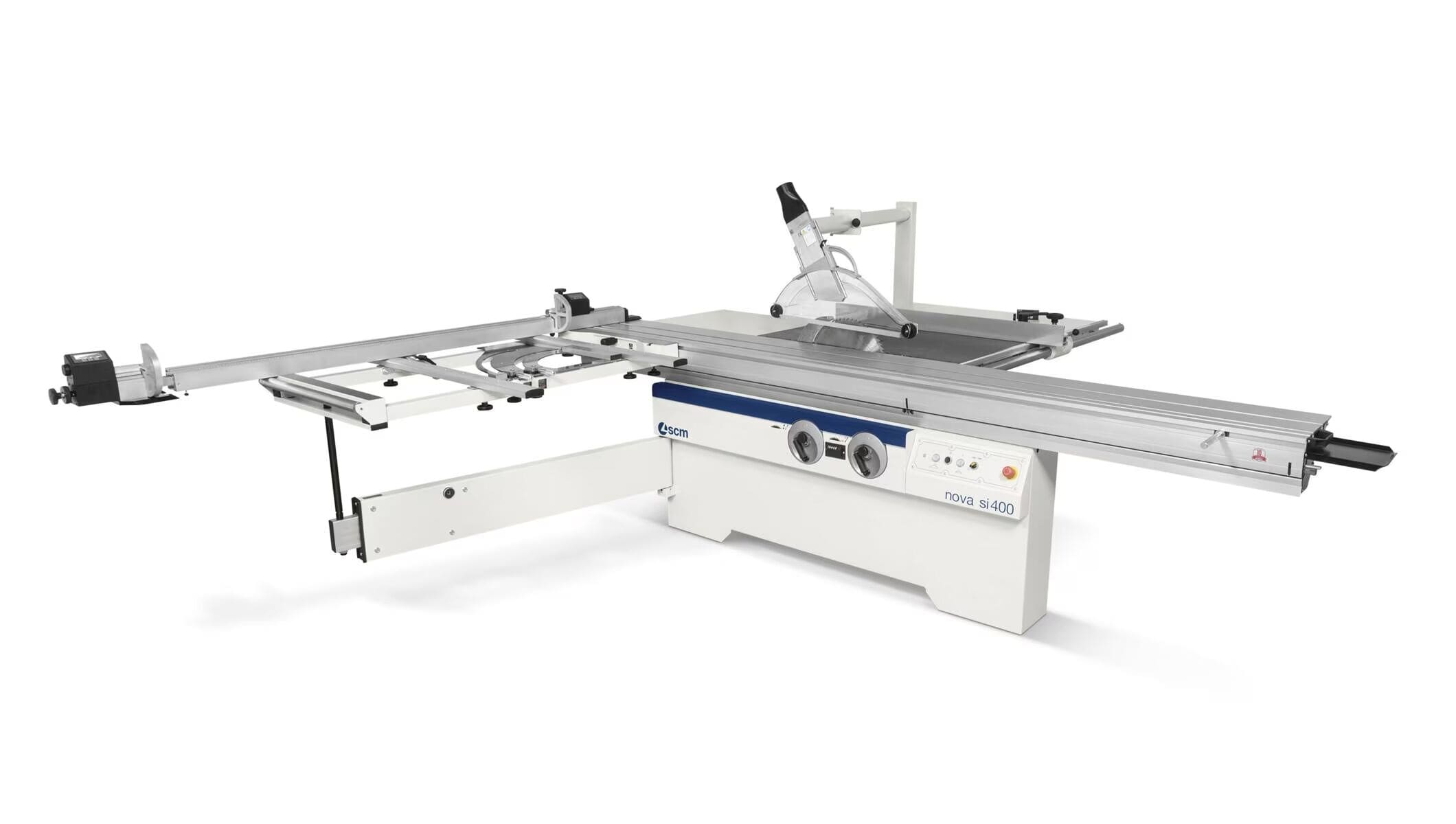

MAIN TECHNICAL DATA

• Max. saw blade diameter with mounted scorer - 400 mm
• Maximum saw blade projection from table to 90°/45° - 140/97  mm
• Cutting width on rip fence (Rip capacity) - 1000 ÷ 1500 mm
• Max squaring stroke of sliding table saw - 3200 ÷ 3800 x 3200 mm
• Three-phase motor kW/Hz - 7 / 50

ADVANTAGES

1. Saw unit: Maximum torsional rigidity and the total absence of vibration through the closed loop structure of the saw unit which ensures perfect alignment of the blades during tilted and difficult cuts.
2. Sliding carriage: smooth sliding and a solid work surface. The wide section of the carriage, with closed reticular geometry provides extreme rigidity and minimum deflection. A smooth operating motion is guaranteed over time by the system of sliding bearings running on hardened steel guides using an  exclusive method of mechanical fixing.
3. Manual movements: always user friendly and precise. Ease of use in every day operation due to the dedicated gear box, fully protected from dust (Scm patented solution), that provides a smooth and direct transmission. Every minimum handwheel movement corresponds to a precise blade adjustment.
4. Manual adjustment of the scoring unit: simple and effective. Vertical and horizontal adjustments are carried out by user-friendly mechanical levers that operate directly making precise and smooth movements. The useful mechanical stops allows immediately finding of the set position. The positioning of the controls allows their use without moving from the front of the machine.

SERIAL NUMBER: FCM/001729

SERIAL NUMBER: AB00037316

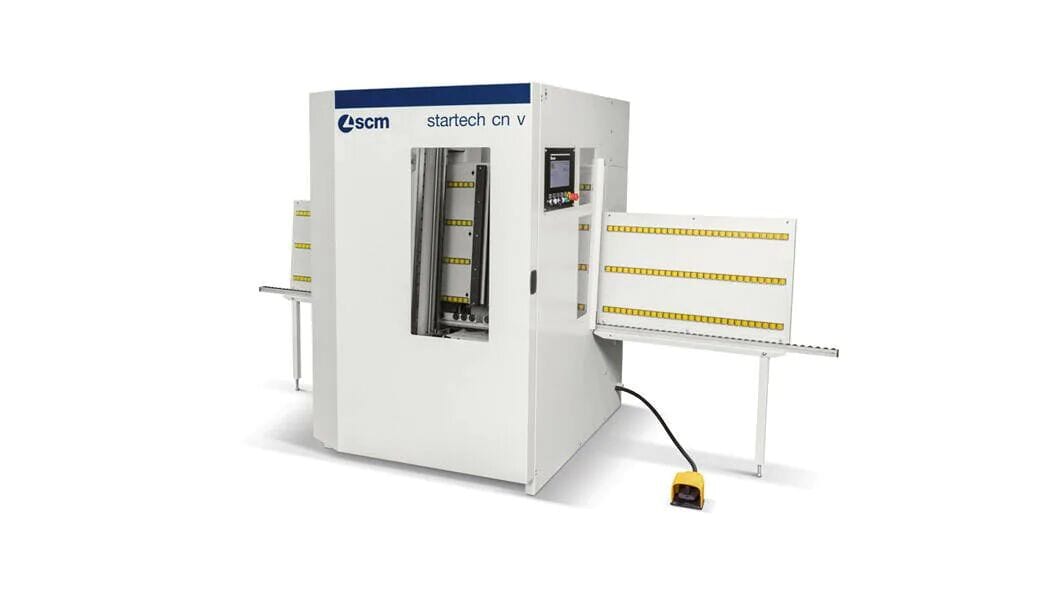

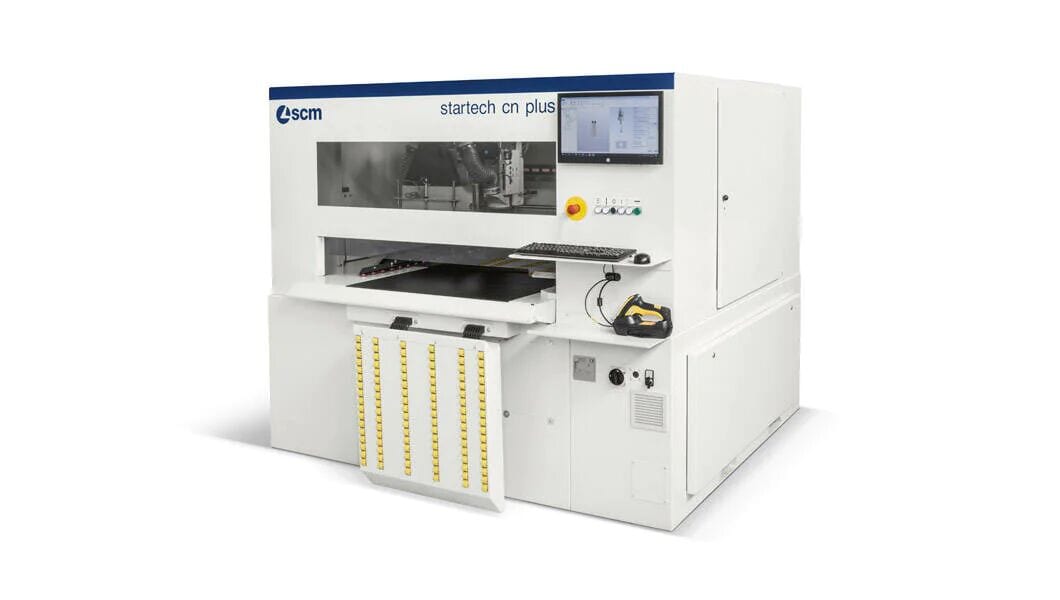

MAIN TECHNICAL DATA

• Max./min. panel dimensions in X-Y-Z - 3000 x 900 x 50 mm / 300 x 90 x 10 mm
• Vertical spindles no. - 8 (5X-3Y)
• Horizontal spindles no.-  6 (2+2X-2Y)
• Blade, diameter/thicknesser -  125/6 mm
• Spindles/blade rotating speed - 4200/5500  g/min
• Electrospindle rotating speed  - 18.000 g/min
• Power - 15,2 KVA (20,7 KVA with electrospindle)

ADVANTAGES

1. IDEAL SOLUTION FOR TAILORED PRODUCTIONS - Automatic machine with simple and intuitive interface for a fast programming.

2. PERFORMING: TOP PERFORMANCE - Tooling and machining operations reduced to the minimum, with 20 m/min axes speed.

3. VERY REDUCED MACHINE OVERALL DIMENSIONS - With its 5,5 m2 overall dimensions, it does not require wide spaces.

MAIN TECHNICAL DATA

• Max./min. panel dimensions in X-Y-Z - 3050x900x60 mm / 200x80x10 mm
• Drilling/grooving working area - 40/40/10 m/min
• Vertical spindles no. - 7  (4X-4Y )
• Horizontal spindles no.- 4 (2X -2Y)
• Blade, diameter/thicknesser - 125/6 mm
• Spindles rotating speed - 4460  g/min
• Blade rotation speed - 5700 g/min


ADVANTAGES

1. IDEAL SOLUTION FOR TAILORED PRODUCTIONS - Automatic machine with simple and intuitive interface for a fast programming.

2. PERFORMING: TOP PERFORMANCE - Tooling and machining operations reduced to the minimum, with 20 m/min axes speed.

3. VERY REDUCED MACHINE OVERALL DIMENSIONS - With its 5,5 m2 overall dimensions, it does not require wide spaces.

SERIAL NUMBER: KK00051523
