VERTICAL SEAMING MACHINE

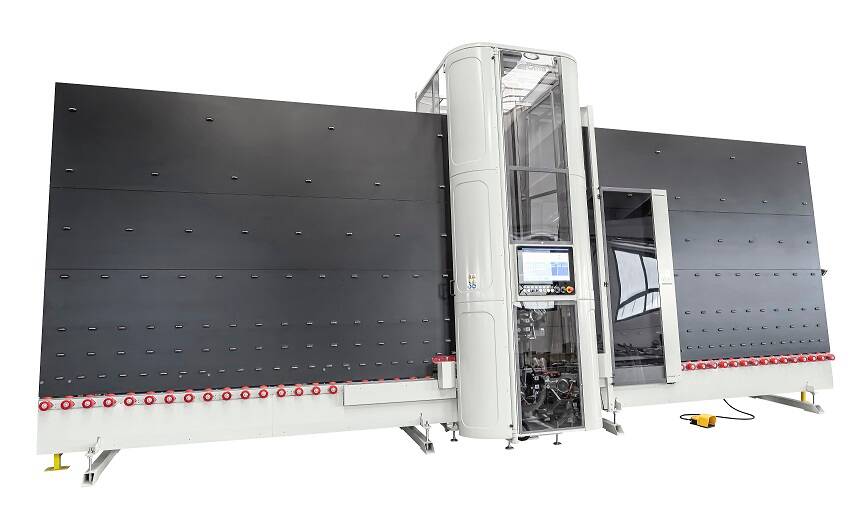

CMS recently acquired GFP, a venetian company specialized in cutting tables and automatic seaming machines for glass processing The operation allows CMS Glass Technology to enforce in a strategic way its offer of products and services guaranteeing our customers more technological solutions to win the most demanding challenges of efficiency and quality.s aura is the vertical dry seaming machine specially developed to machine edges without the use of water (dry seaming). Aura can be used as a stand-alone machine, in line with a vertical washing machine and is the perfect machine to be part of a double glazing line.
Aura can seam monolithic, laminated or low-e treated glass.
Aura is designed to meet the needs of customers who demand ease of use, quick installation, reliability and low cost of system ownership.
The operator loads the glass and starts the processing cycle, the machine automatically measures the incoming glass (height, length and thickness) and machines the edge.
Aura also adapts its operating units to different thicknesses.
WATER CONSUMPTION? NO THANKS!
Aura is equipped with four operating units, each consisting of two heads, to seam the four sides of the glass. Each head has a flap disc tool designed for dry machining.
OVERSIZE GLASS? NO PROBLEM!

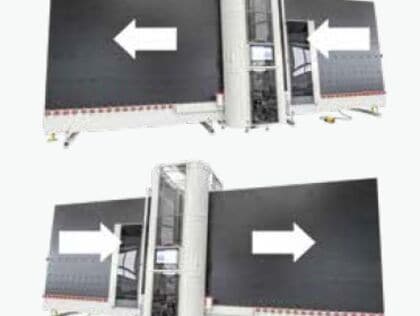

Motorized roller conveyors can be installed to lengthen both the machine infeed and outfeed. Each roller conveyor measures 2500mm, allowing glass with lengths up to 6m to be machined. The outfeed roller conveyor is also equipped with a dual motor drive that can act as a buffer.
|MAXIMUM HEIGHT||3845 mm / 151.4 in with roller height 450 mm / 17.7 in from the ground||4045 mm/159.2 in with roller height 650 mm / 25.6 in from the ground|
|MAXIMUM LENGTH||8250 mm / 325 in (without additional modules)|
|STANDARD POWER SUPPLY||400 V - 50Hz 3Ph + Earth + Neutral|
|AIR, MINIMUM WORKING PRESSURE||6 bar|
|MINIMUM SHEET HEIGHT||240 mm / 9.54 in|
|MAXIMUM SHEET HEIGHT||2700 mm / 106 in|
|MINIMUM SHEET LENGTH||450 mm / 17.7 in|
|MAXIMUM SHEET LENGTH||
4000 mm / 157.4 in
6000 mm/ 236.2 in (with additional modules)
|MACHINABLE THICKNESS RANGE||4 – 22 mm / 0.16 – 0.86 in|
