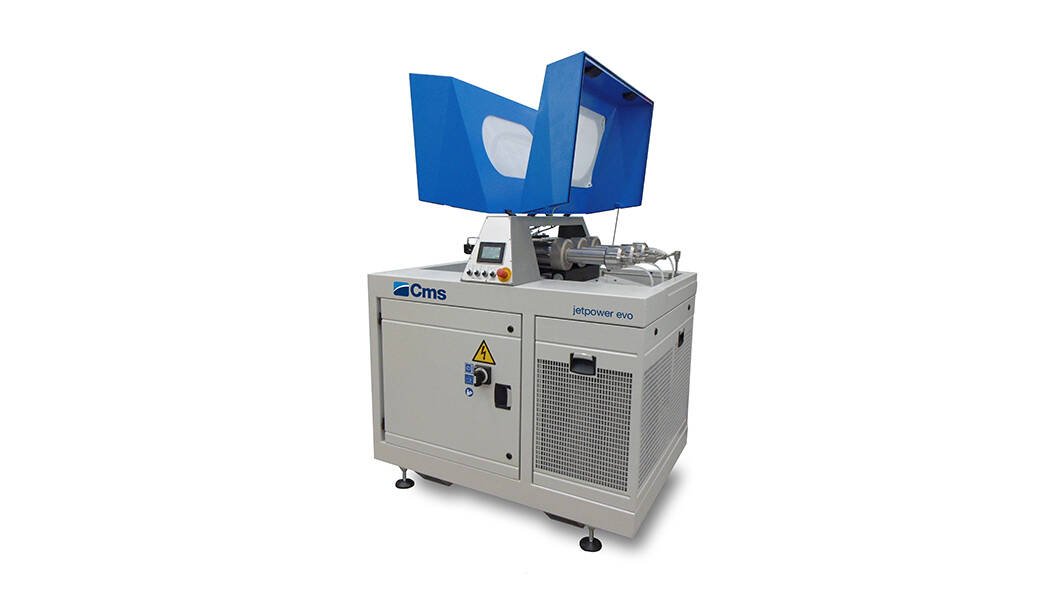

CMS brought about a new concept in ultrahigh pressure intensifiers, enhaced by technological solutions designed to satisfy the needs of most demanding users. This new technology is based on an intensifier equipped with several pressure multipliers independent, parallel and electronically synchronized. This innovative solution results in an everconstant pressure avoiding any drops typical of traditional opposecylinder intensifiers.
CONSTANT OUTPUT PRESSURE FOR BETTER CUTTING QUALITY
Hydraulic intensifier with 2 or 3 independent and electronically syncronized parallel cylinders to guarantee a constant signal of output pressure without the use of attenuator.
REDUNDANT ARCHITECTURE: LESS MACHINE DOWNTIME
The technology with 3 independent cylinders allows the bypass of a single cylinder that needs maintenance, while the machine is working, avoiding unnecessary downtime.
LESS MAINTENANCE COSTS
The parallel cylinders architecture is designed for a low cycle frequency that reduce the high pressure components wear and consequently the maintenance costs.
|MODEL||JETPOWER EVO 30 HP||JETPOWER EVO 60 HP|
|Power||22,5 kW / 30 hp||45 kW / 60 hp|
|Max working pressure||4150 bar / 60000 psi||4150 bar / 60000 psi|
|Max water pressure||2,5 L/min / 0,66 gpm||5 L/min / 1,32 gpm|
|Max diameter orifice||0,28 mm / 0,011 in||0,40 mm / 0,016 in|
|Voltage||400V +/- 5% 50-60 Hz (Different voltages and frequencies on request)|
