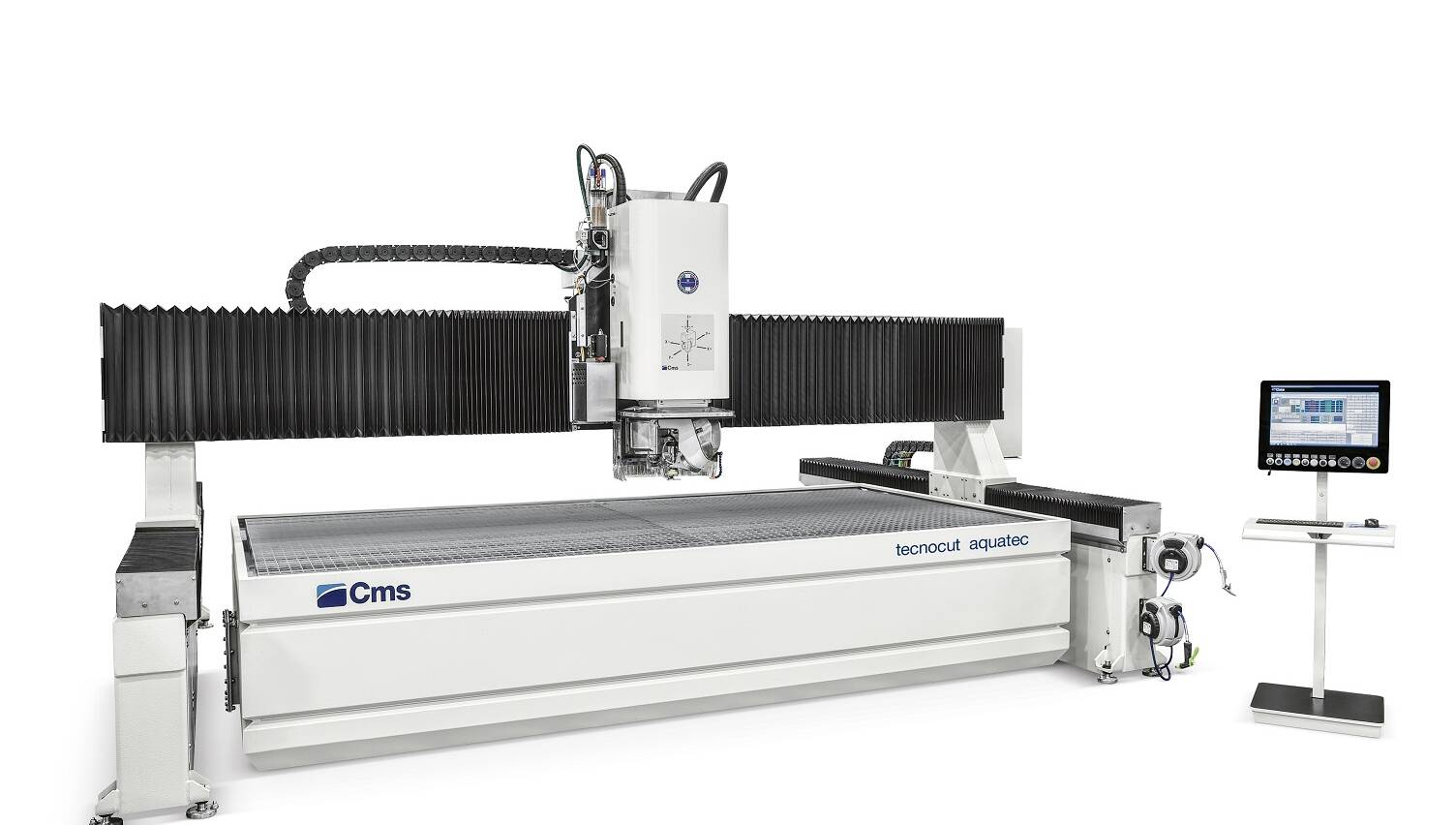

3 AND 5-AXES HYDRO-ABRASIVE WATERJET CUTTING SYSTEM
Tecnocut Aquatec is a waterjet system with an advanced, high performing and versatile hydro-abrasive head, capable of meeting the most varied production demands in different fields of application, guaranteeing highly precise cuts. Tecnocut Aquatec was designed along the lines of CMS philosophy: the machine is the result of experience acquired in the automotive, aerospace, naval and design sectors. The structure and technical solutions adopted, together with the selected components, ensure a high level of finishing, high processing speeds, reliability, structural rigidity, flexibility of use and excellent productivity.
PRODUCTION OPTIMIZATION: SMART QUALITY
Parts cut with waterjets do not require subsequent rework and do not generate thermally deformed areas, reducing cycle times and waiting times along the production process.
LOWER OPERATING COSTS: SMART VERSATILITY
Waterjet technology offers a unique tool that does not require complex tooling for workpiece clamping. In addition, the 5-axis version can perform 3D cuts with high precision and repeatability.
EASY OPERATION: ACCESS TO THE MACHINING BED FROM 4 SIDES
The structure with wide beam and modular columns allows configurations with ample space around the tank to simplify loading and unloading.
|X Axis||3800 mm / 149 in||4020 mm / 158 in||3000 mm / 118 in||54 m/min||2 m/s2|
|Y Axis||2650 mm / 104 in||2650 mm / 104 in||6650 mm / 262 in||54 m/min||2 m/s2|
|Z Axis||650 mm / 25 in||650 mm / 25 in||650 mm / 25 in||12,6 m/min||1 m/s2|
|B Axis||±60°||±60°||±60°||17299 °/min||1450 °/s2|
|C Axis||infinite||infinite||infinite||13400 °/min||850 °/s2|
|Workable area||2000x300 mm / 78x118 in||2000x4000 mm / 78x157 in||6000x3000 mm / 236x118 in|
|Overall dimensions||5886x4039 mm / 232x159 in without light barriers||5886x4039 mm / 232x159 in without light barriers||
8195x6832 mm / 323x269 in
without light barriers
*STANDARD VERSIONS available up to 60120 (12000x6000 mm)
Dynamic precision (3-axis) ± 0,10 mm
Repeatibility of “ps” positioning ± 0,025 mm
