FOM Baiha L Heavy Duty Window Corner Crimper

(512) 931-1962
FOM Baiha L Heavy Duty Window Corner Crimper
Advantages

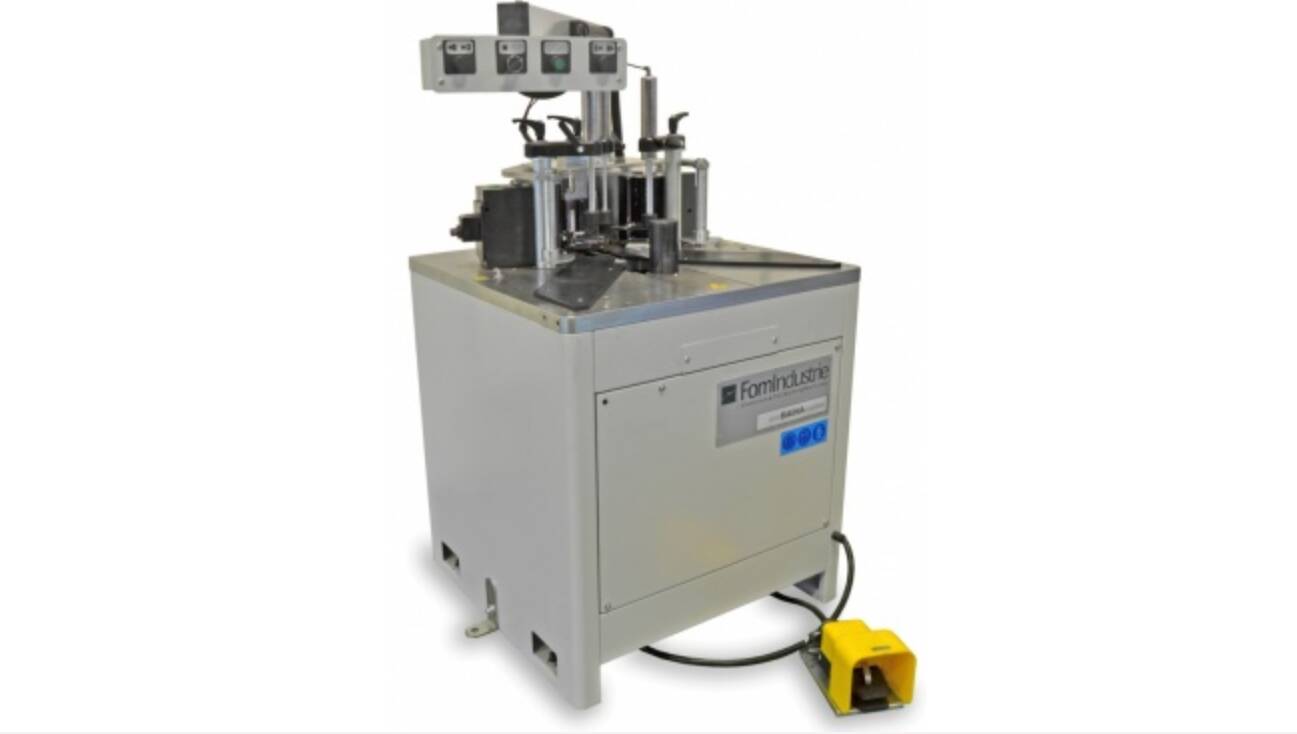

FOM Industrie Baiha L pneumatic corner crimping machine
LARGE performance, for LARGE profiles. The Baiha L is a heavy duty corner crimper ideal for all aluminium window sashes and thermally broken window profiles.

Technical data
  • Internal crimping force multiplication cam system, capable of developing a thrust force through the crimping blades of 5000kg at 7 bars over the whole stroke
  • Working capacity of profiles with max height of 200 mm
  • Independent adjustment of the two tool units with decimal number readout showing their position
  • Crimping positioning height from 0 to 180 mm
  • Possibility of crimping at two points with standard or profiled tools by height depending on the profile chamber
  • Fold-away profile fence
  • Dimensions mm 880 x 850 x 1500 (h)
