windorflex 2
(512) 931-1962
Windorflex 2 is the high productivity SCM machining cell for windows and doors manufacturing.
It is an innovative and high-tech solution designed to perform all the necessary operations for producing window frames, regardless of the type.
The work-pieces automatic loading/unloading system with anthropomorphous robot enable the machine to work autonomously, without the continuous input of the operator.
Advantages
-
ENHANCED EFFICIENCY
Unrivalled productivity with the double automatic worktable. -
BEST-IN-CLASS PERFORMANCE
The configurability of the machining units with 4 and 5-axis electrospindles, allows performing all the necessary operations for windows production. -
THE ROBOT THAT WORKS FOR YOU!

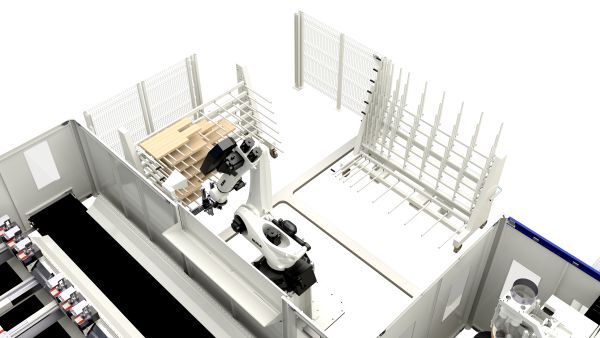

Unmanned machining: the system is equipped with an anthropomorphous robot that picks up the rough elements and unloads the finished work-pieces on special trolleys. -
EASE OF USE
The exclusive Maestro active windoor software, specifically developed for this machine, is able to optimise the working process.
Technical data
| windorflex 2 | ||||
| Max. work-piece length | mm | 2 x 3500 4 x 1700 2 x 4500 6 x 1245 2 x 6000 8 x 1160 |
||
| Min. work-piece length | mm | 220 160, with specific cycle |
||
| Max. work-piece width | mm | 260 | ||
| Min. work-piece width | mm | 40 | ||
| Max. work-piece thickness | mm | 160 | ||
| Min. work-piece thickness | mm | 35 | ||
| X-Y-Z axes max. speed | m/min | 100-80-50 | ||
| Standard electrospindles motor power | kW | 20 | ||
| Standard tools stores | n. - positions | 2 x 48 | ||
