s 40n - s 50n - s 60n - s 70n - s 80n - s 90n

(512) 931-1962

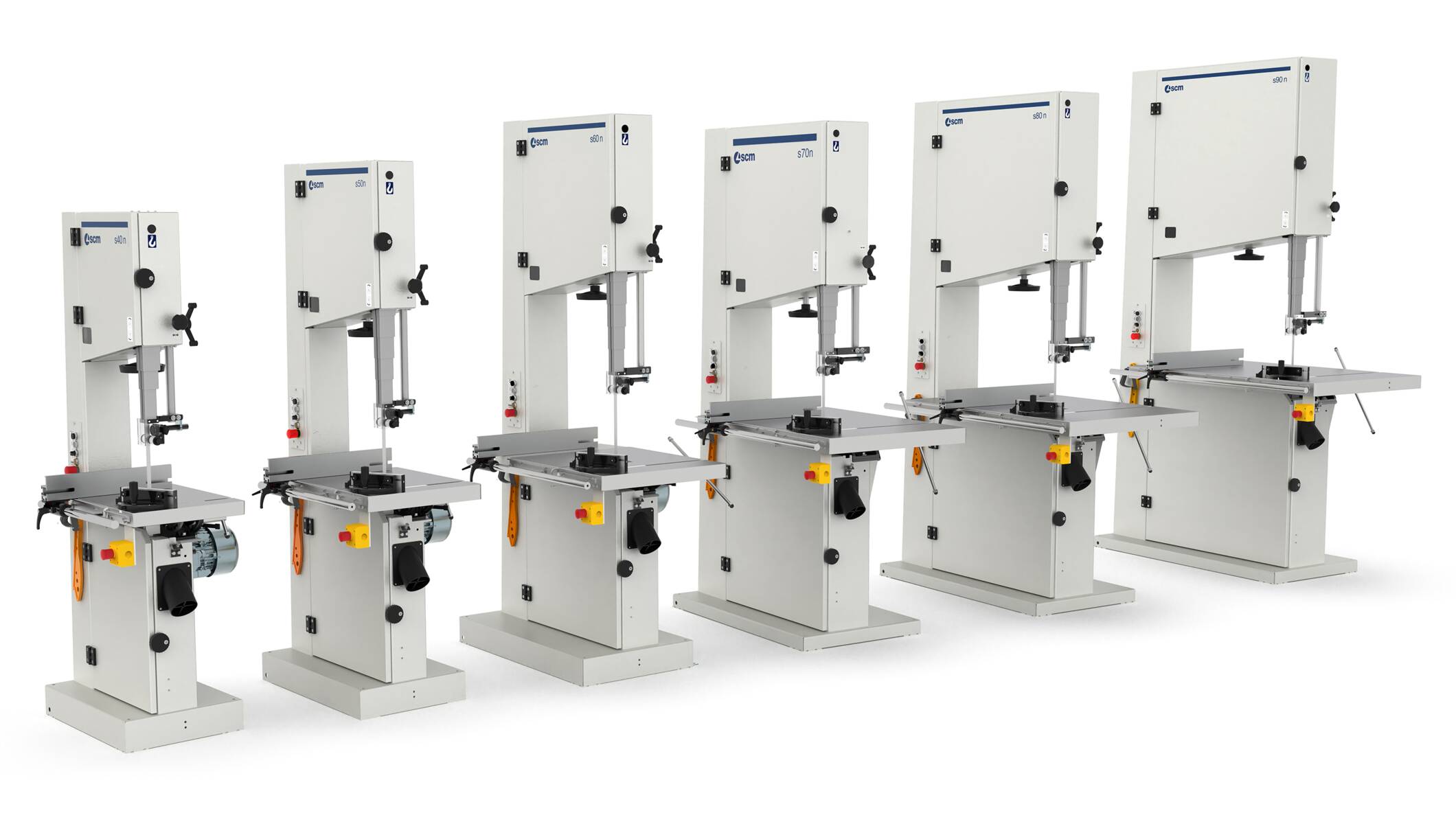

Machine photo s 40n - s 50n - s 60n - s 70n - s 80n - s 90n

Range of SCM professional, sturdy and reliable bandsaws. Precision engineering and heavy-duty performance. Designed for the advanced joinery with high safety and durability. From the compact s 40n to the industrial s 90n: the right solution for every cutting need.

Advantages

  • ABSOLUTE STURDINESS & DURABILITY
    Heavy cast-iron construction (flywheels and worktable) ensures maximum stability and vibration dampening. Paired with industrial-grade three-phase motors across the entire lineup, powered by three-phase or single-phase supply via inverter, for superior robustness and long-term asset protection.

  • HIGH-PERFORMANCE CUTTING
    Exceptional resaw capacity up to 628 mm, powerful motors, and dual blade speeds (via inverter) enable the machine to tackle oversized and demanding cuts with ease, delivering clean results even under heavy load.

  • CUTTING-EDGE ACCURACY & EFFICIENCY

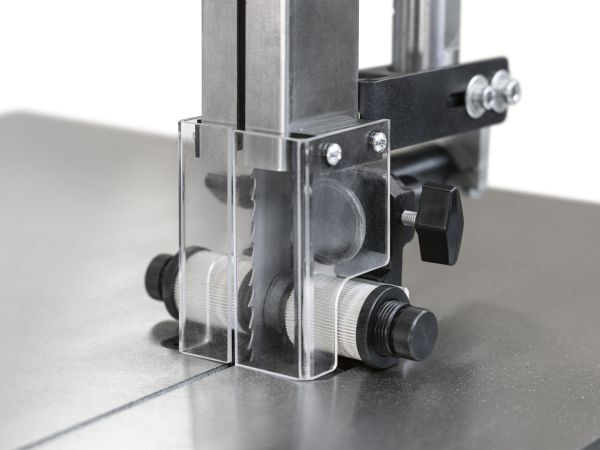

    State-of-the-art guide ensure superior accuracy and minimal rework. Fast, precise setup is enabled by the ergonomic tilting worktable with crank (0°–45°) and the blade tensioner quick-release (S 40N / S 50N), drastically reducing downtime.

  • UNCOMPROMISING SAFETY AND CLEAN OPERATION

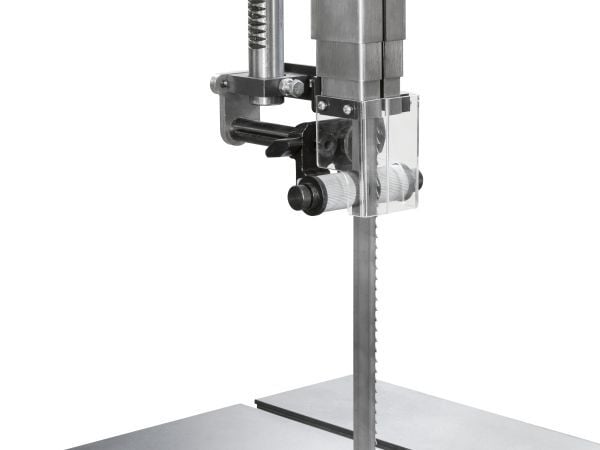

    The telescopic blade guard ensures operator safety at every stage of operation. Two extraction ports: one under the worktable and one on the lower flywheel for a consistently clean workspace.

Technical data

    s40n s50n s60n s70n s80n s90n
Cutting Capacity
Height (Resaw) mm 430 536 628 459 546 554
Width (Throat) mm 395 480 590 688 787 886
Flywheel
Diameter mm 400 500 600 700 800 900
Worktable
Dimensions mm 420 X 578 485 X 633 608 X875 730 X 1050 820 X 1200 820 X 1270
Tilting degrees 0° - 45° 0° - 45° 0° - 45° 0° - 45° 0° - 45° 0° - 45°
Motors
Power (S6) – Standard kW-Hz 2,6kW -50Hz 2,6kW - 50Hz 3,6kW - 50Hz 3,6kW - 50Hz 6,6kW - 50Hz 6,6kW - 50Hz
Power (S6) – Optional kW-Hz 3,6kW - 50Hz 3,6kW - 50Hz 6,6kW - 50Hz 6,6kW - 50Hz - -
Single Phase (via Inverter)   Yes Yes Yes No No No
Blade
Width mm 6-30 6-30 8-35 10-40 10-45 12-50
Length mm 3756 4362 4870 5104 5581 6113
Overall dimensions
Height x Width x Depth mm 1885 x 813 x 714 2076 x 941 x 762 2278 x 1201 x 863 2280 x 1391 x 870 2460 x 1574 x 929 2680 x 1610 x 899
Dust Port (Number / Diameter) n./mm 2 X 100 2 X 100 2 X 100 2 X 100 2 X 100 2 X 100
