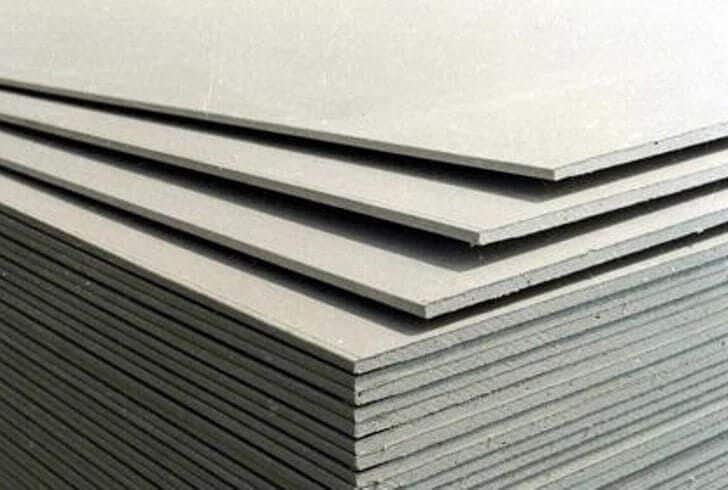

Fiber cement is a highly durable composite material made of a mixture of cement and other fibrous materials, like wood fibers. Its unique formulation combines the strength and stability of cement with the flexibility and lightness of fibers.
Resistant to humidity and fire, fiber cement is widely used in the construction industry for both interior and exterior applications because it allows to finish the walls of a building very easily and extremely quickly. It offers excellent dimensional stability and can be cut, shaped and finished to achieve superior surface quality, increasing the value of the finished product.
For over 30 years, SCM has been engineering and producing machines and lines to process fiber cement.
SCM offers a full range of solutions from entry level to integrated systems with an unmatched depth of technology in sizing, routing, squaring, profiling and finishing. The Group’s extensive know-how and leading experience guarantees customised applications engineered by the best specialists.

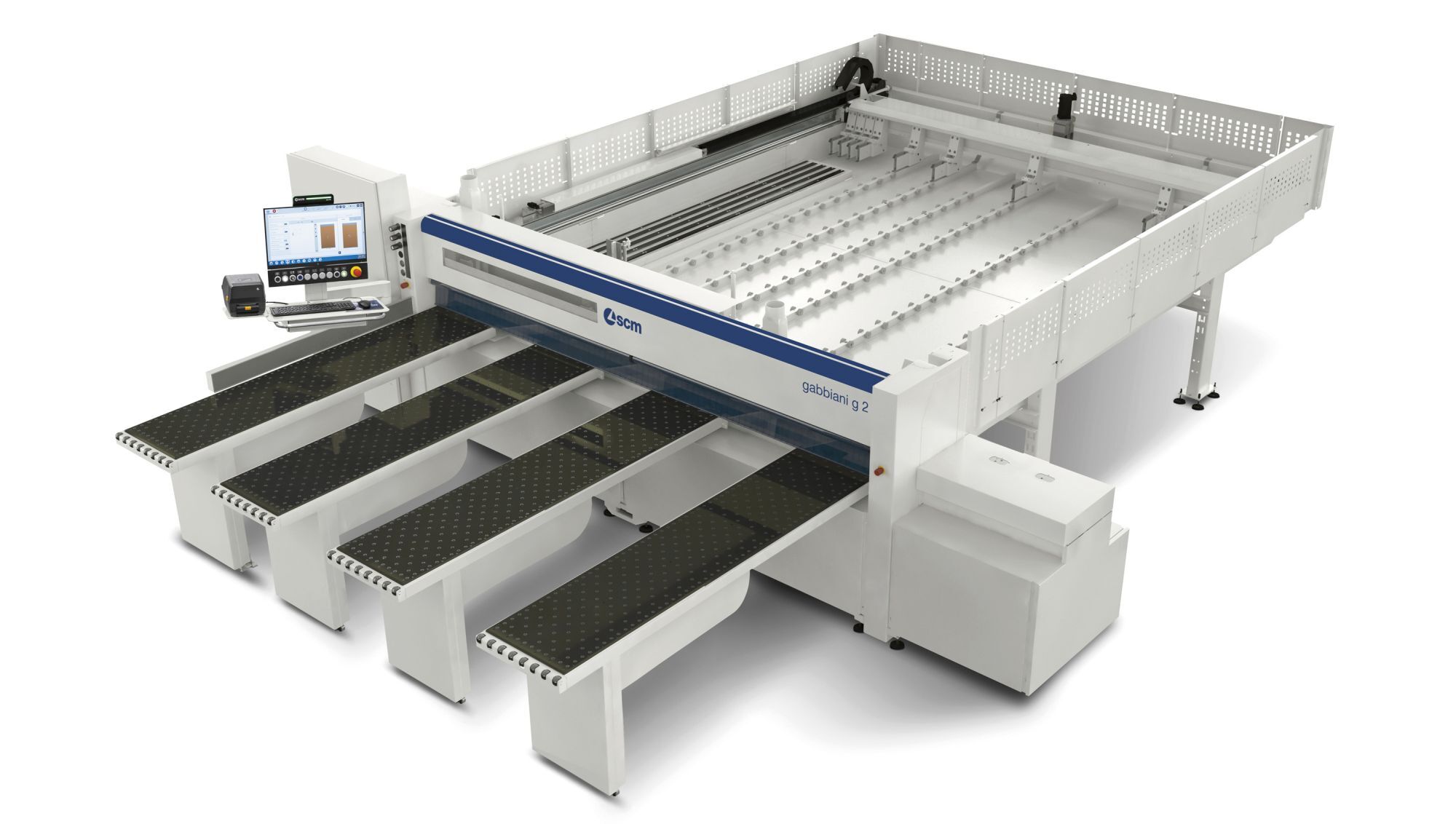

The beam saw gabbiani g2 is designed for fiber cement cutting, combining innovation and advanced technology to ensure maximum productivity, precision and a clean working environment.

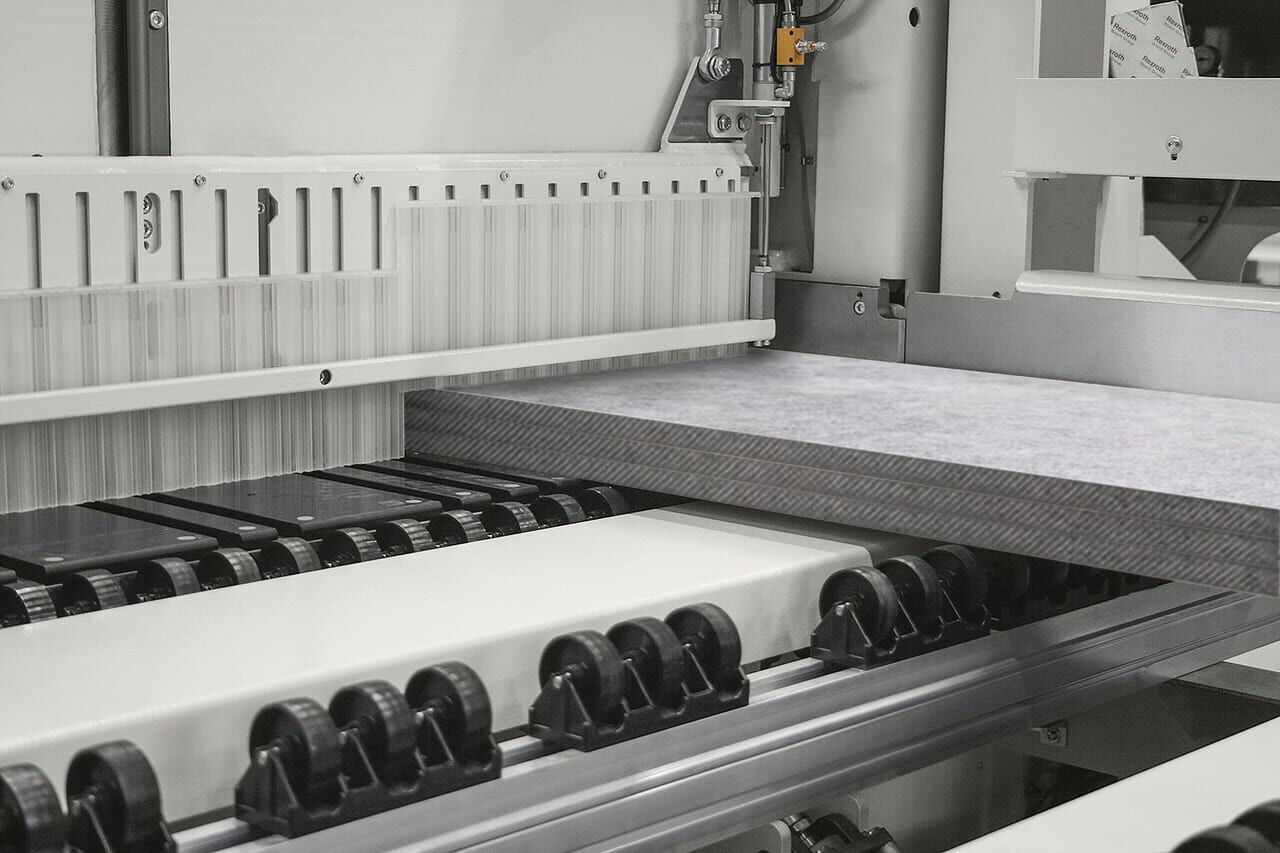

Zero-Dust system with automatic dust control curtains by section for maximum cleaning and complete sawdust evacuation

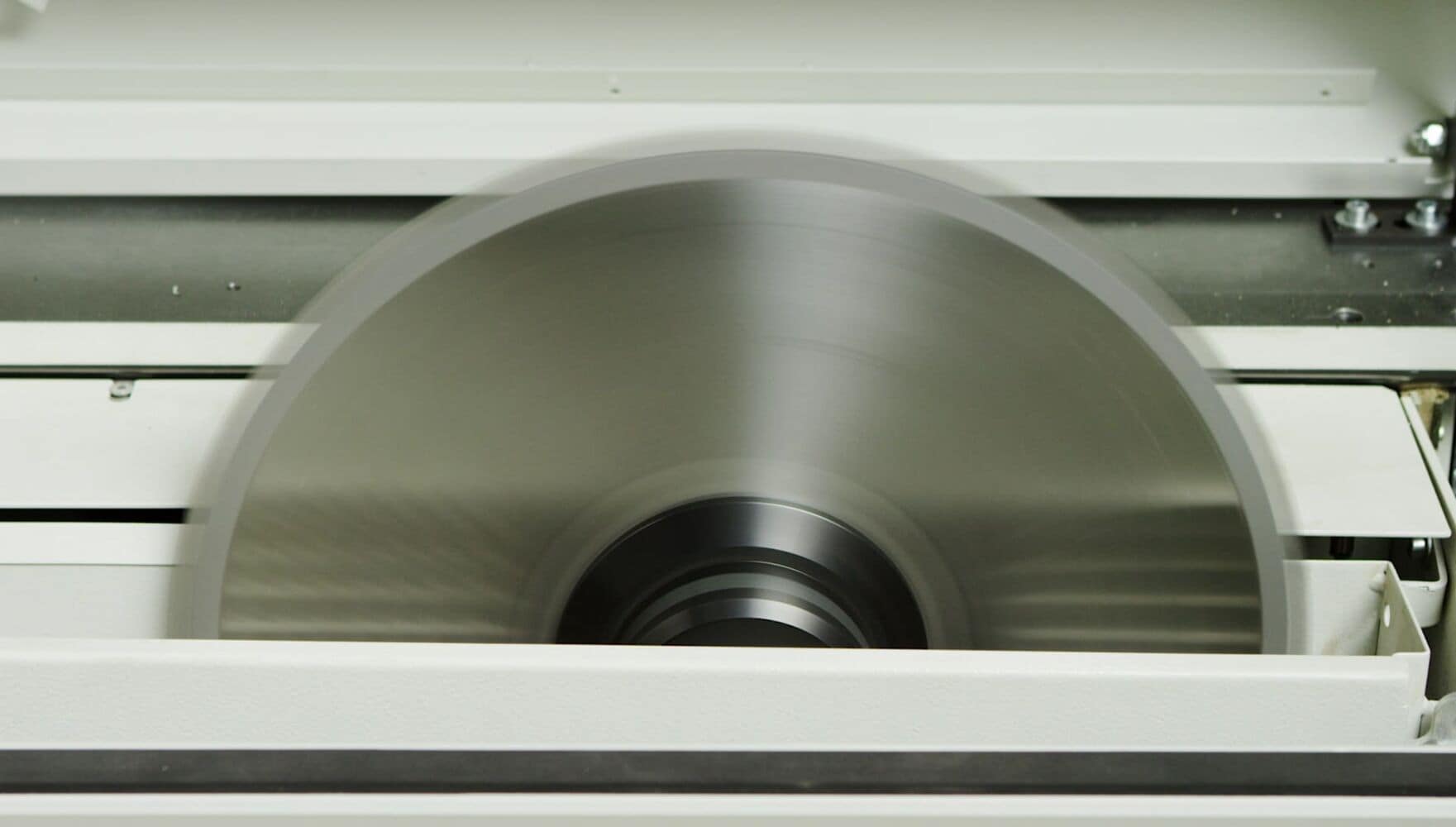

Inverter for blade peripheral speed control
Automatic control of energy absorption

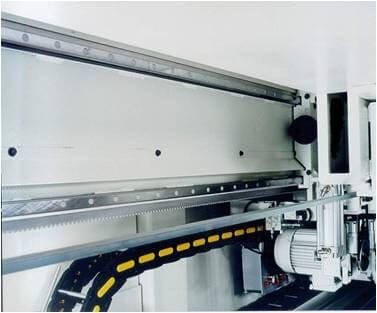

Prismatic guideways with recirculating ball bearing
Closed rear working table for the best material support

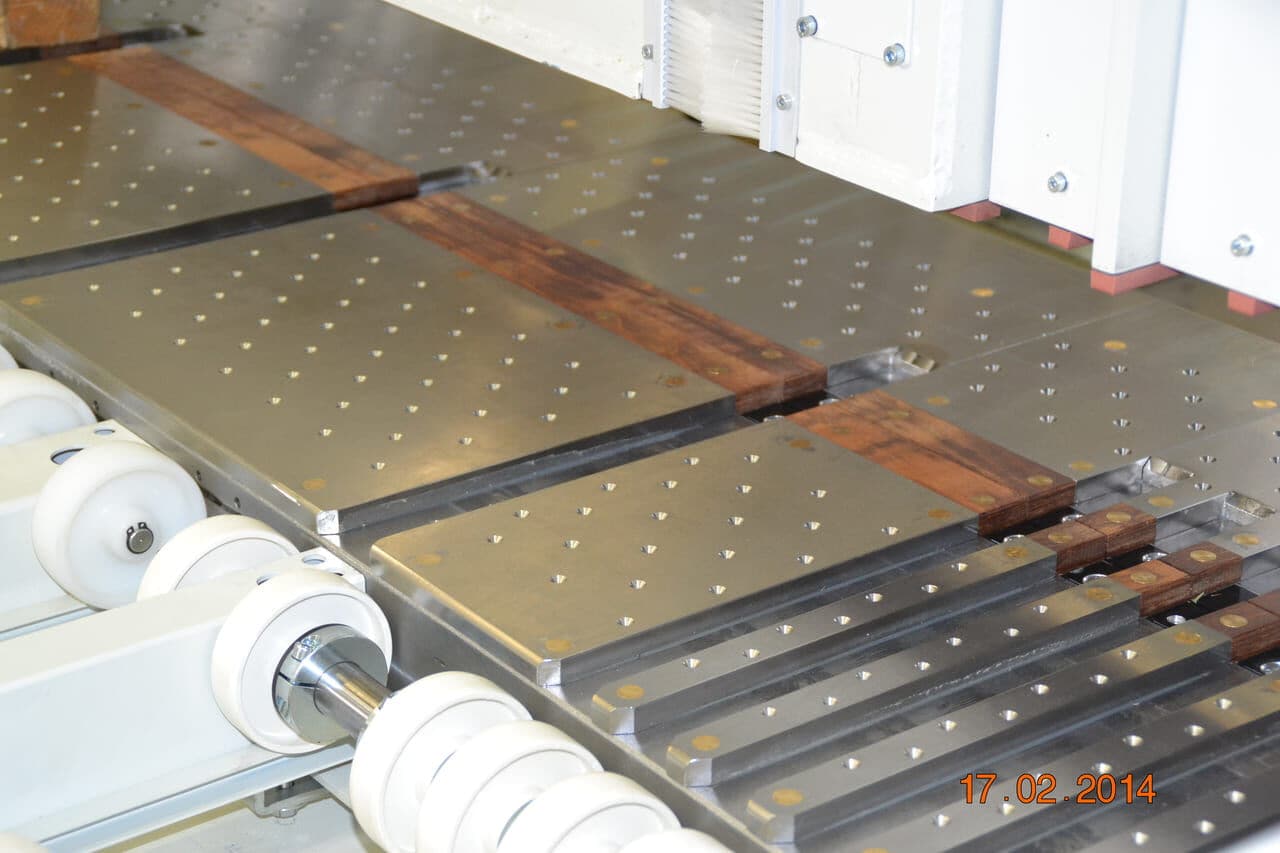

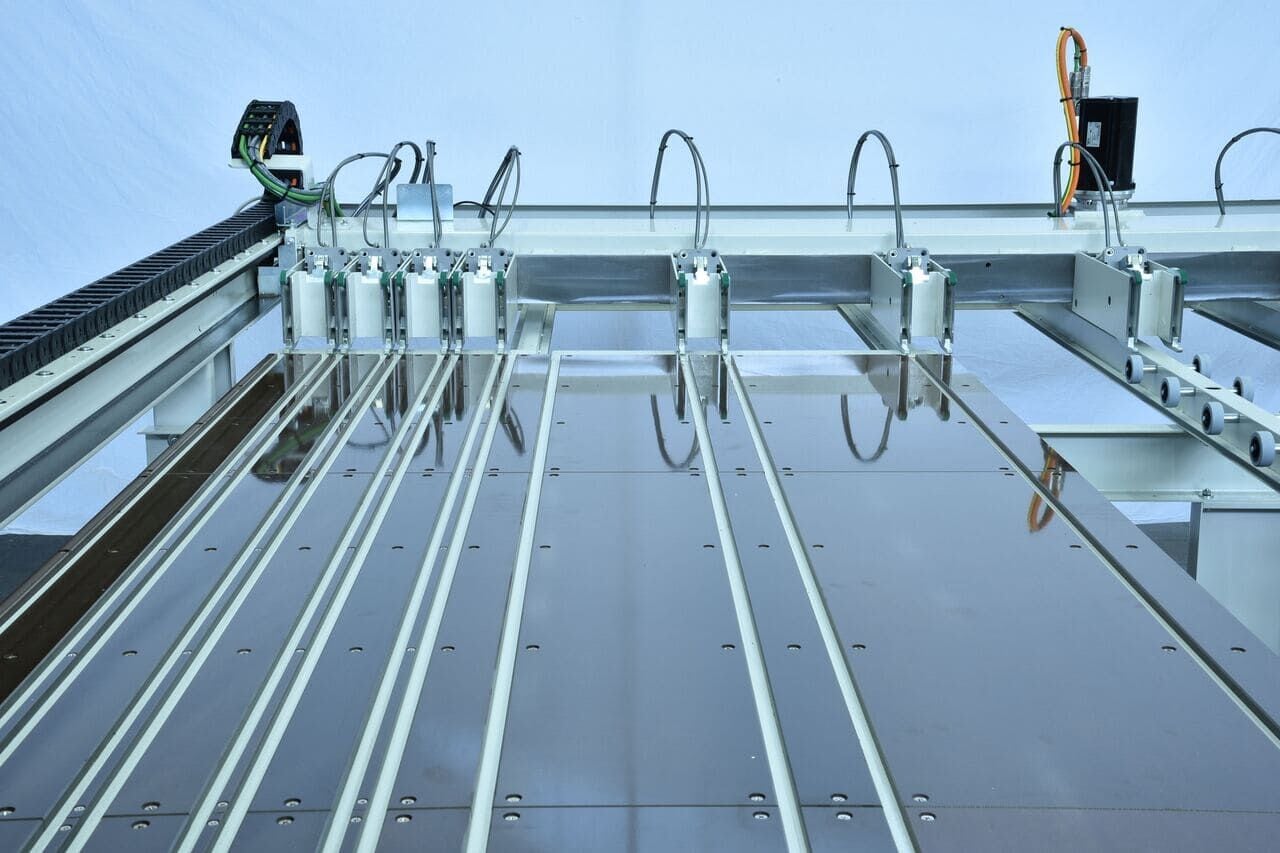

Steel air floating worktables for delicate and abrasive materials
| gabbiani g2 | |
|---|---|
| Cutting dimensions | 3200/3800/4500 mm |
| Blade projection | up to 128 mm |
| Variable sawcarriage speed | From 0 up to 170 m/min |
| Variable pusher speed | From 0 up to 100 m/min |
| Sawblade motor (S6 - 40%) | Up to 20 kW |

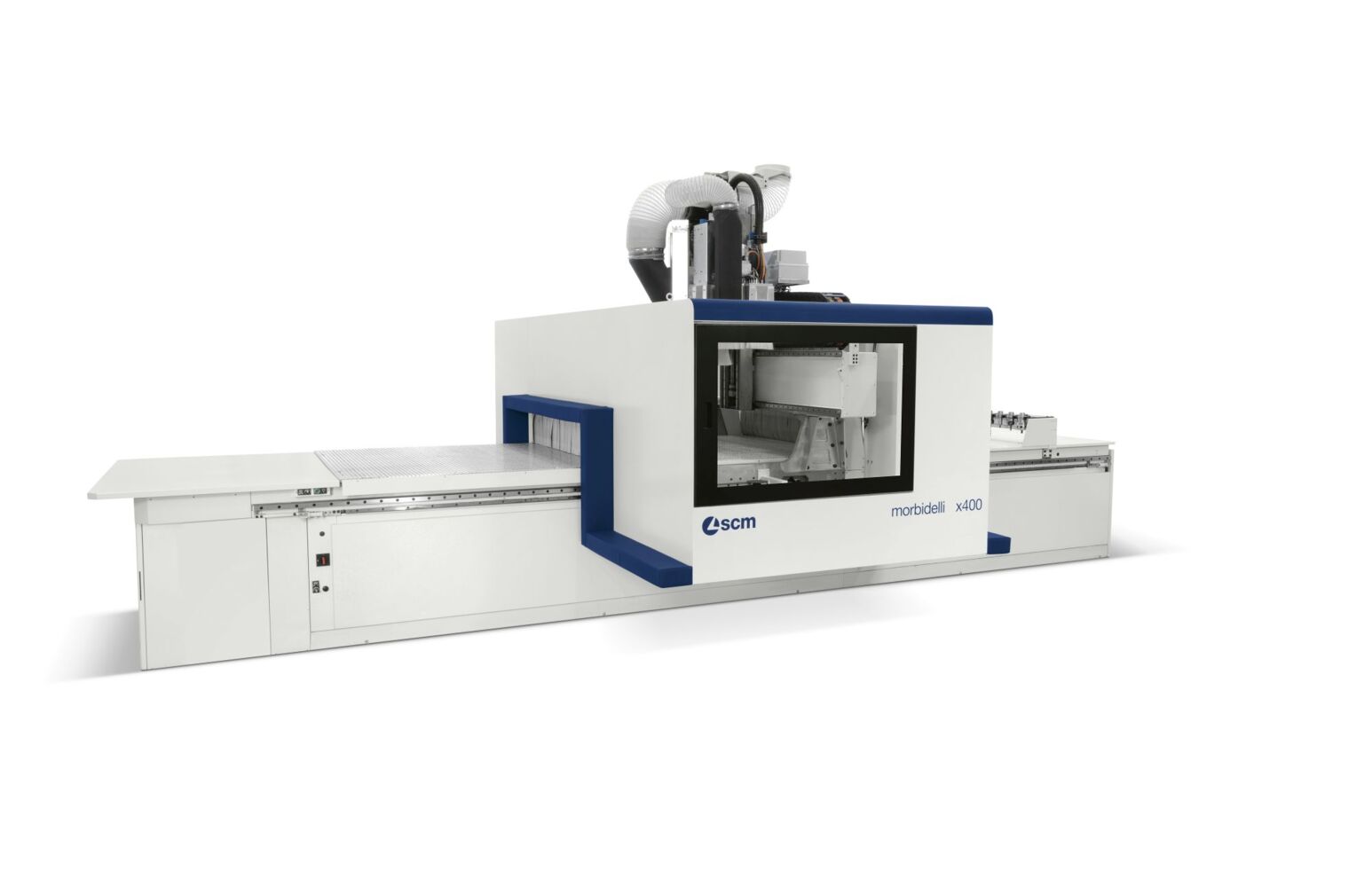

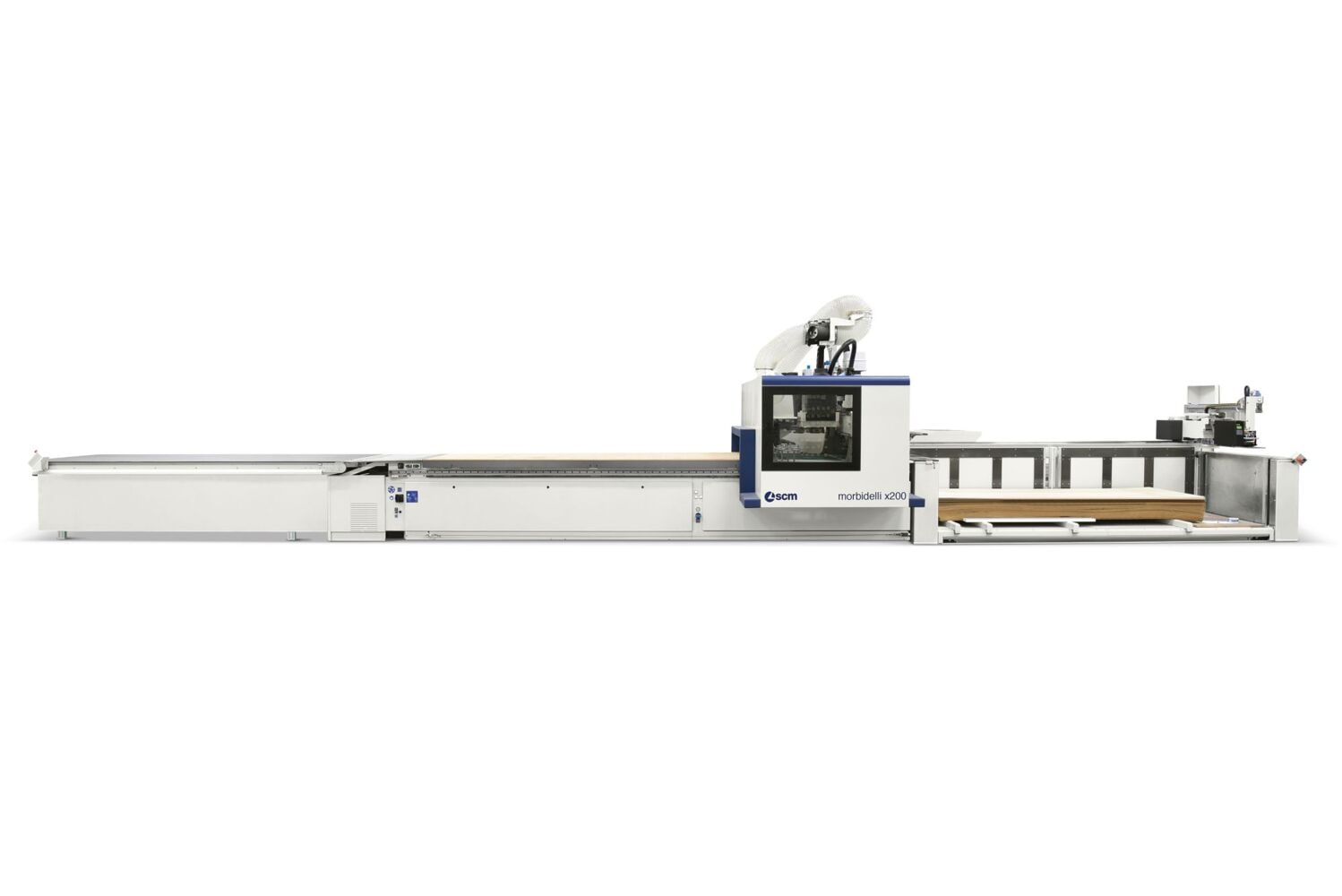

The CNC machining centres of the morbidelli x series are designed for highly flexible production requirements, delivering superior accuracy and finish quality regardless of component shape or dimensions.

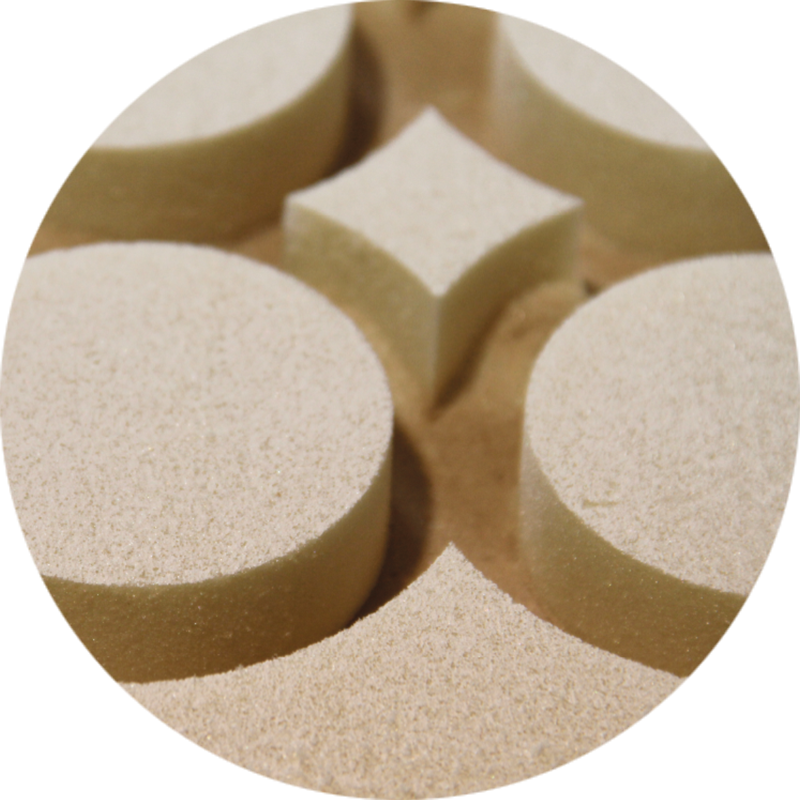

The machines are engineered to last in the heaviest working conditions in terms of dustiness and abrasiveness. For this reason, they represent the ideal solution for routing-drilling operations on fiber cement boards, drywall and plaster panels/elements for the building construction sector.
SCM multi-function phenolic or aluminum worktable for high standards of accuracy
Rigid mobile gantry for maximum precision
3, 4 or 5-axis working unit designed for maximum performance in minimum space
From base-integrated tool changers up to the best-in-class on-board tool-changers for downtimes reduction
Pendulum machining for higher productivity
| morbidelli x series | |
|---|---|
| X-axis working area | From 2450 up to 4300 mm |
| Y-axis working area | From 1250 up to 2200 mm |
| Component passage | From 170 up to 250 mm |
| Electro-spindle | From 9,5 up to 15 kW |
| Tool changer positions | From 8 up to 55 |

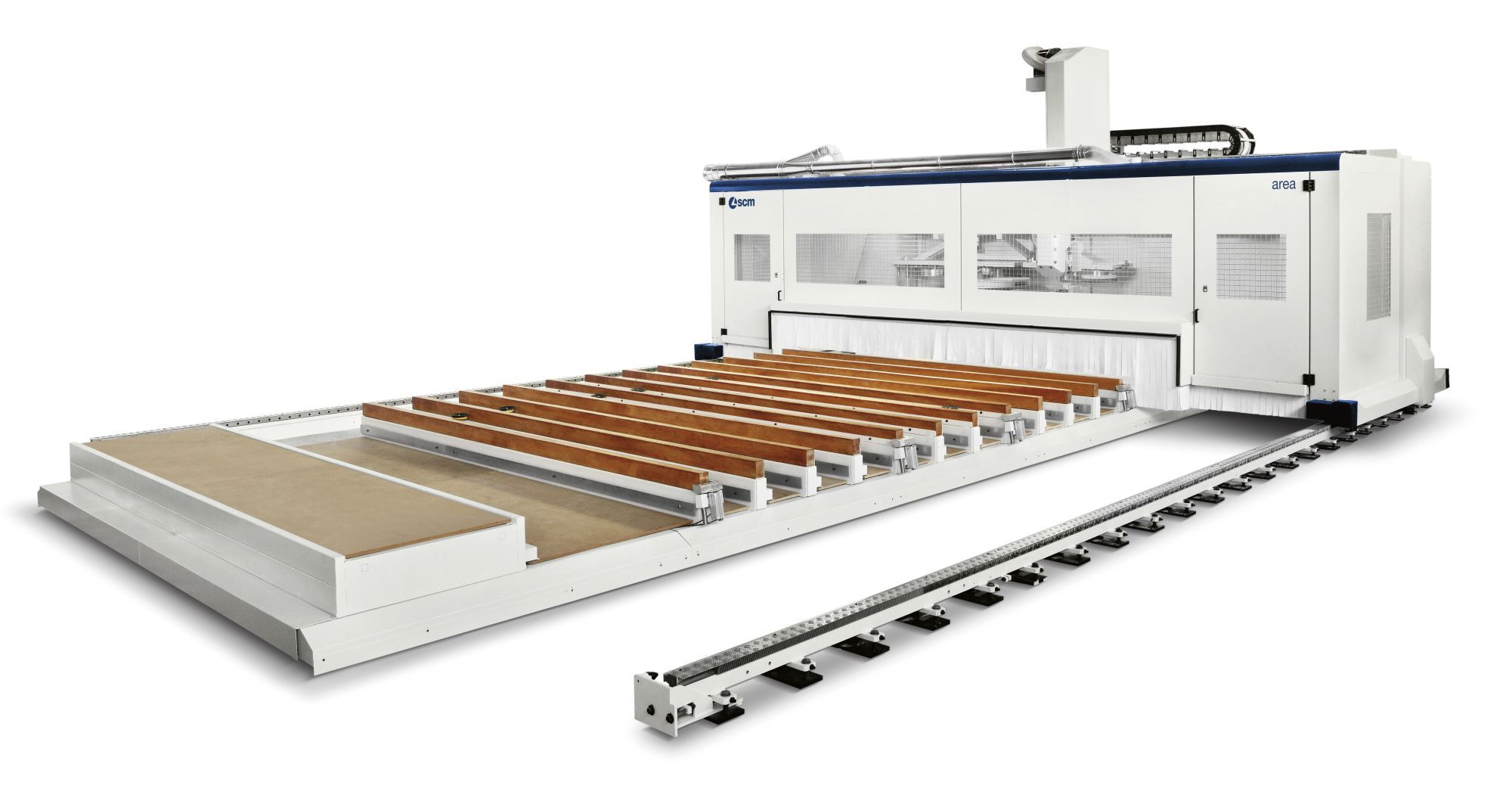

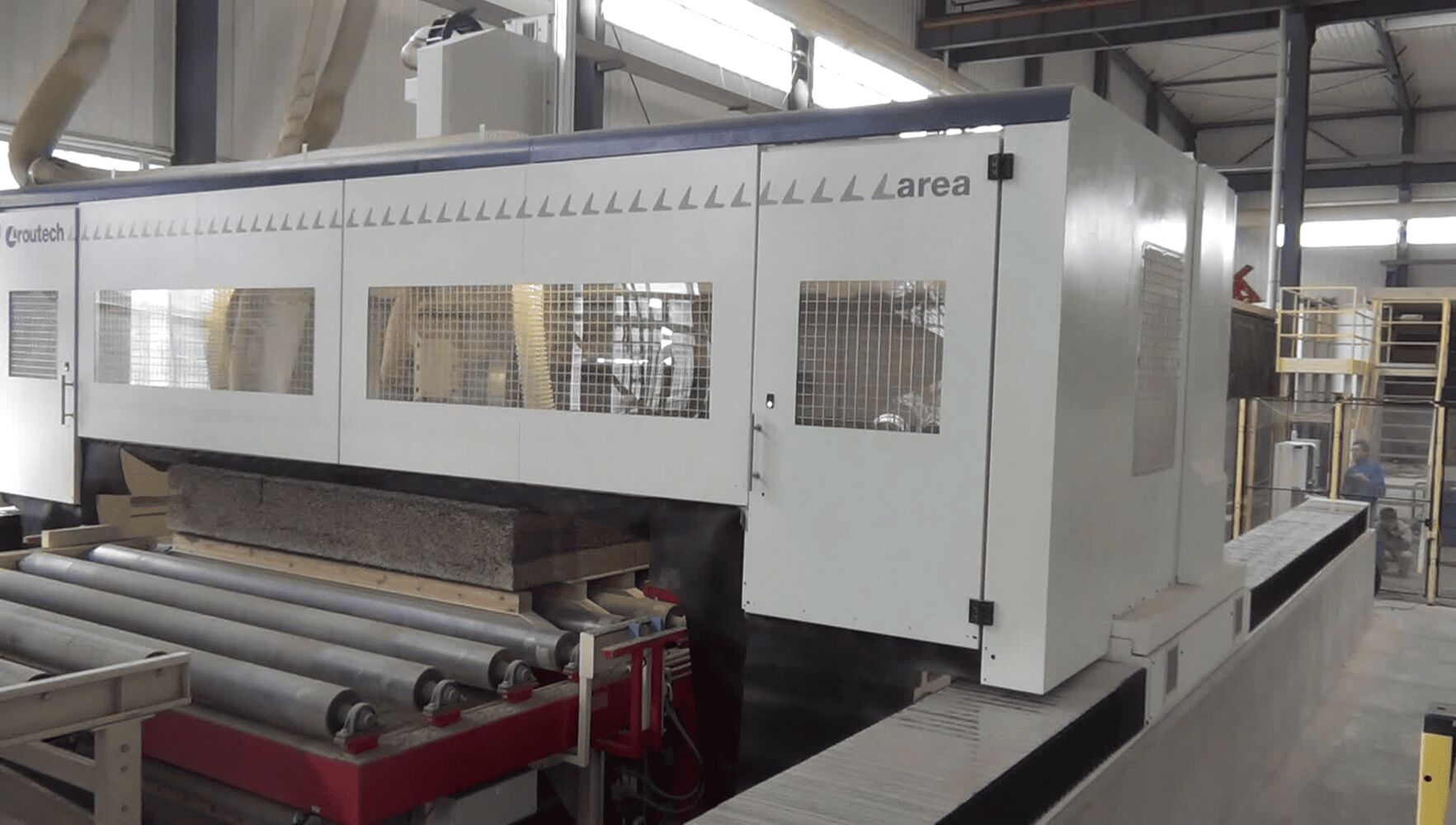

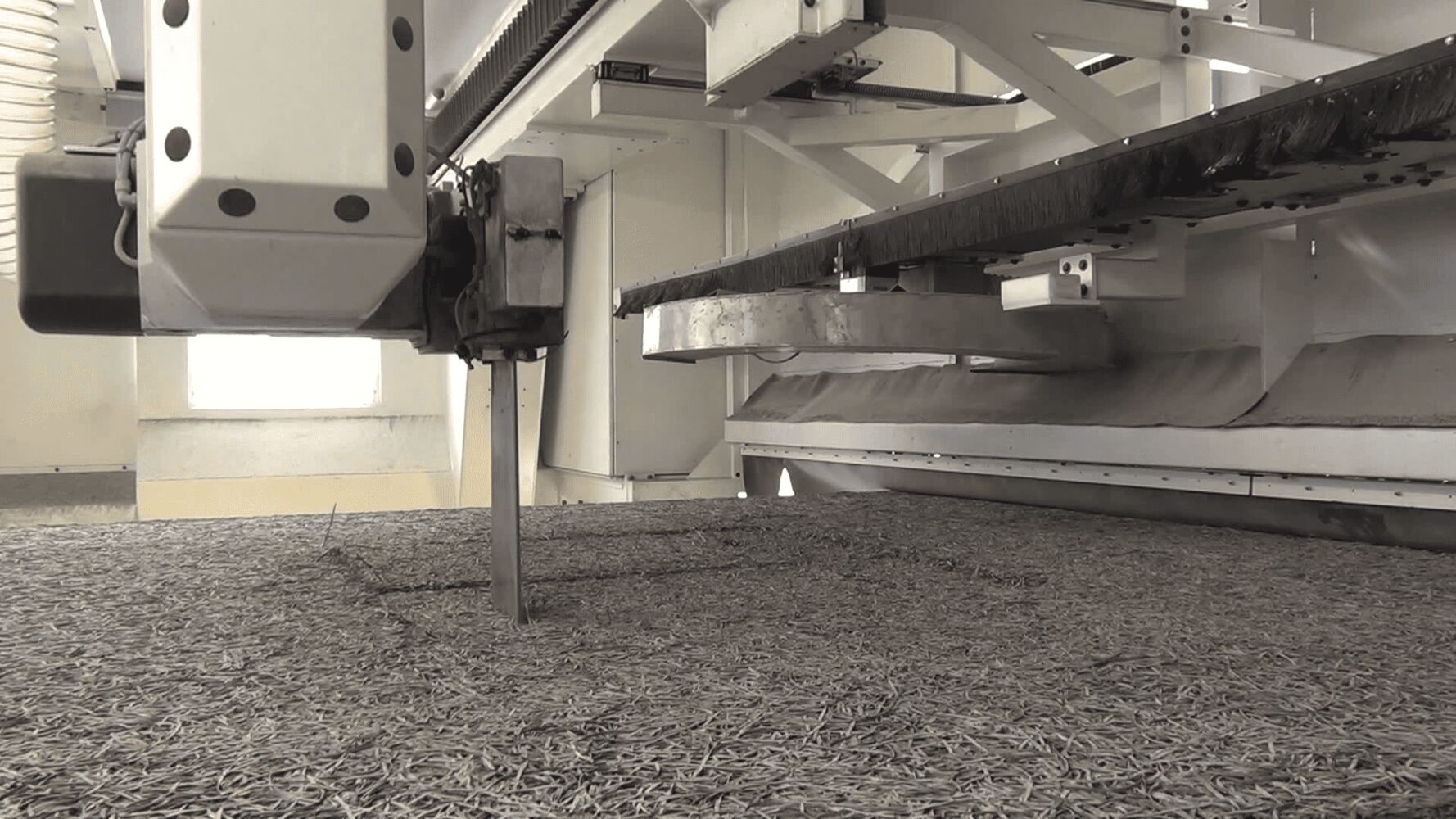

The CNC machining centre area features a mobile gantry structure and modular composition to process fiber cement walls, thanks to a worktable up to 4.5 m wide and 50 m long.
The machine is built to withstand the most demanding working conditions, even in highly dusty and abrasive environments.
Easy access to the worktable thanks to sliding tracks with a low vertical profile and reduced floor requirement

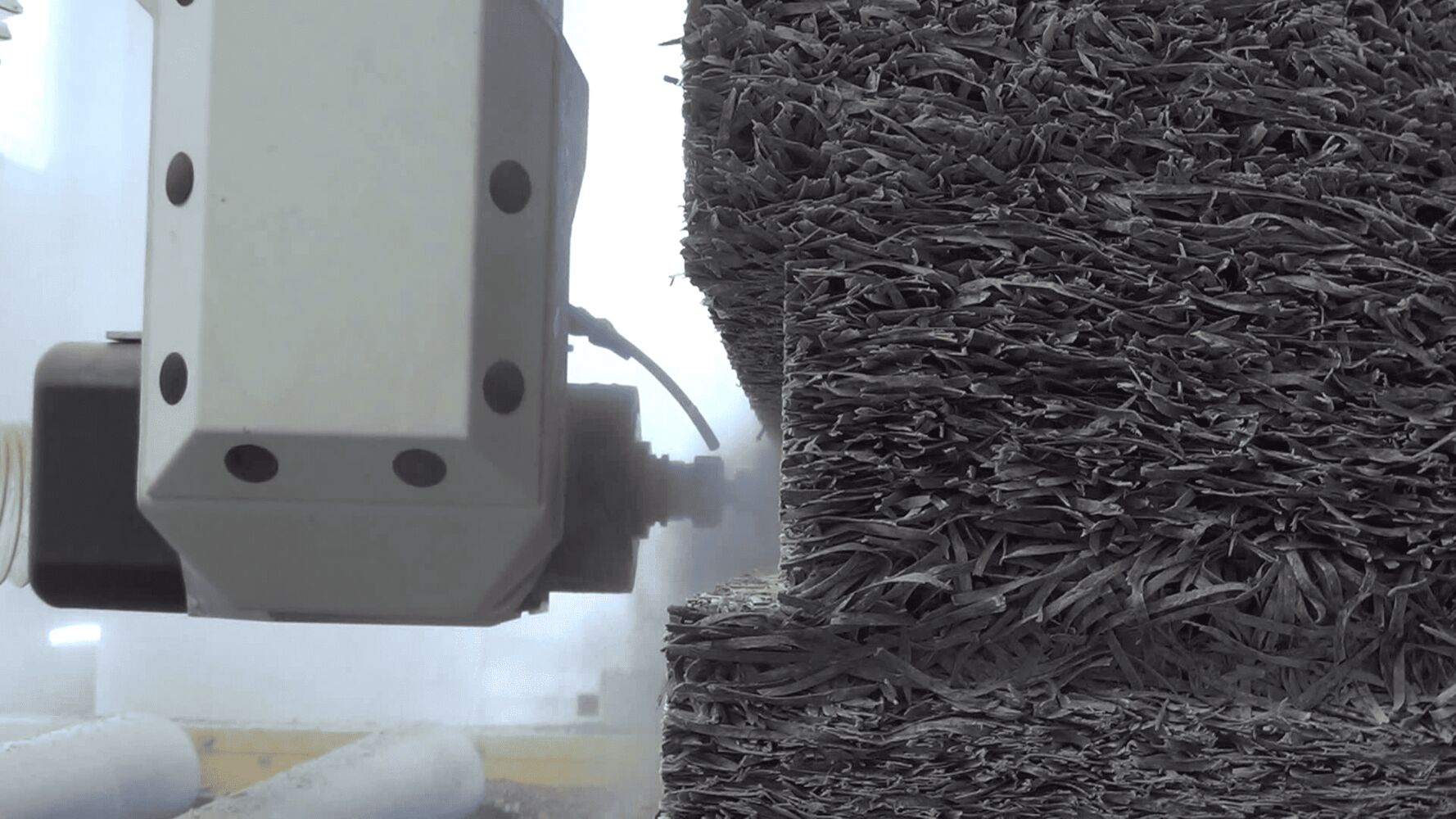

Stress-free machining of very thick elements with the specially designed 5-axis machining head
Special bellows on the sliding parts of the machine to prevent machine wear caused by abrasive material
Total integration of Maestro lab beam&wall software with the most common CAD design tools
| area | |
|---|---|
| X-axis working area | up to 50 m |
| Y-axis working area | from 3.2 to 4.5 m |
| Electro-spindle | up to 30 kW |
| Sawblade diameter | up to 1020 mm |
| Machining thickness | up to 360 mm |

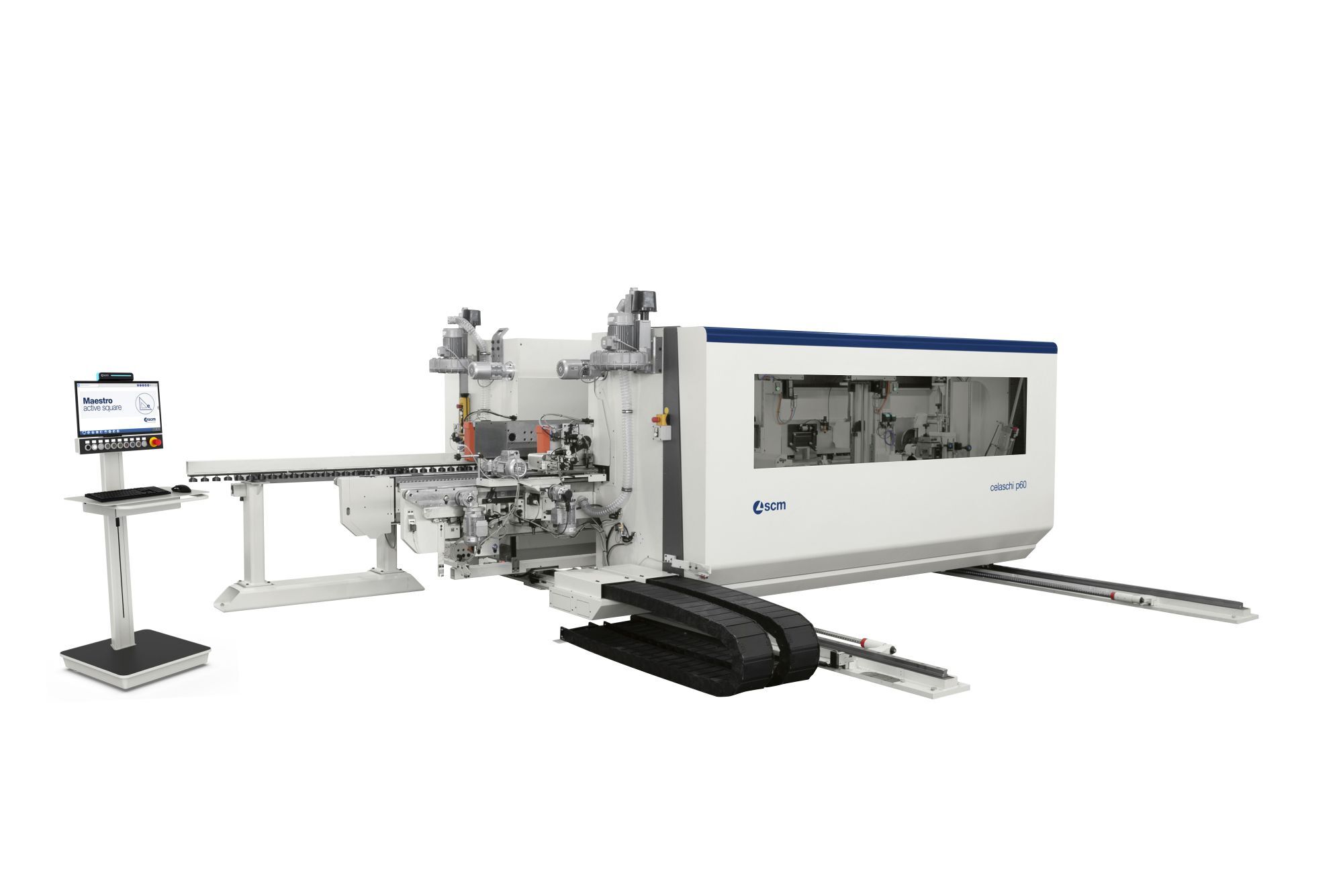

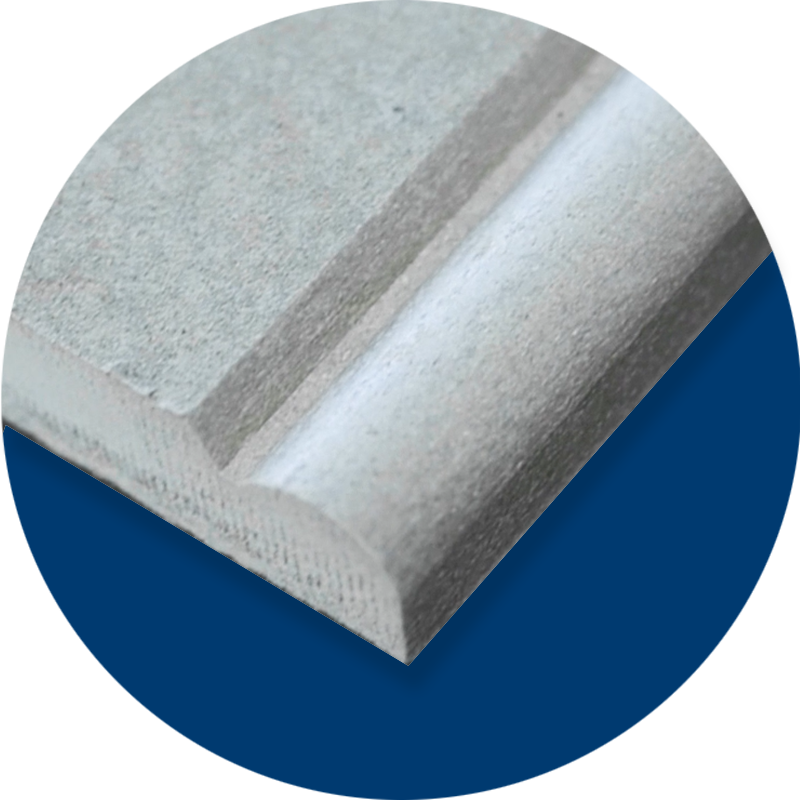

The double-end tenoner celaschi p60 is ideal for squaring, profiling and sanding a wide range of abrasive and insulating materials.
The machine is characterized by high performance and reliability, even in the most demanding applications, making it perfectly integrable into high‑productivity lines.
Workpiece transport system with pressurized chain tracks to reduce abrasion considerably

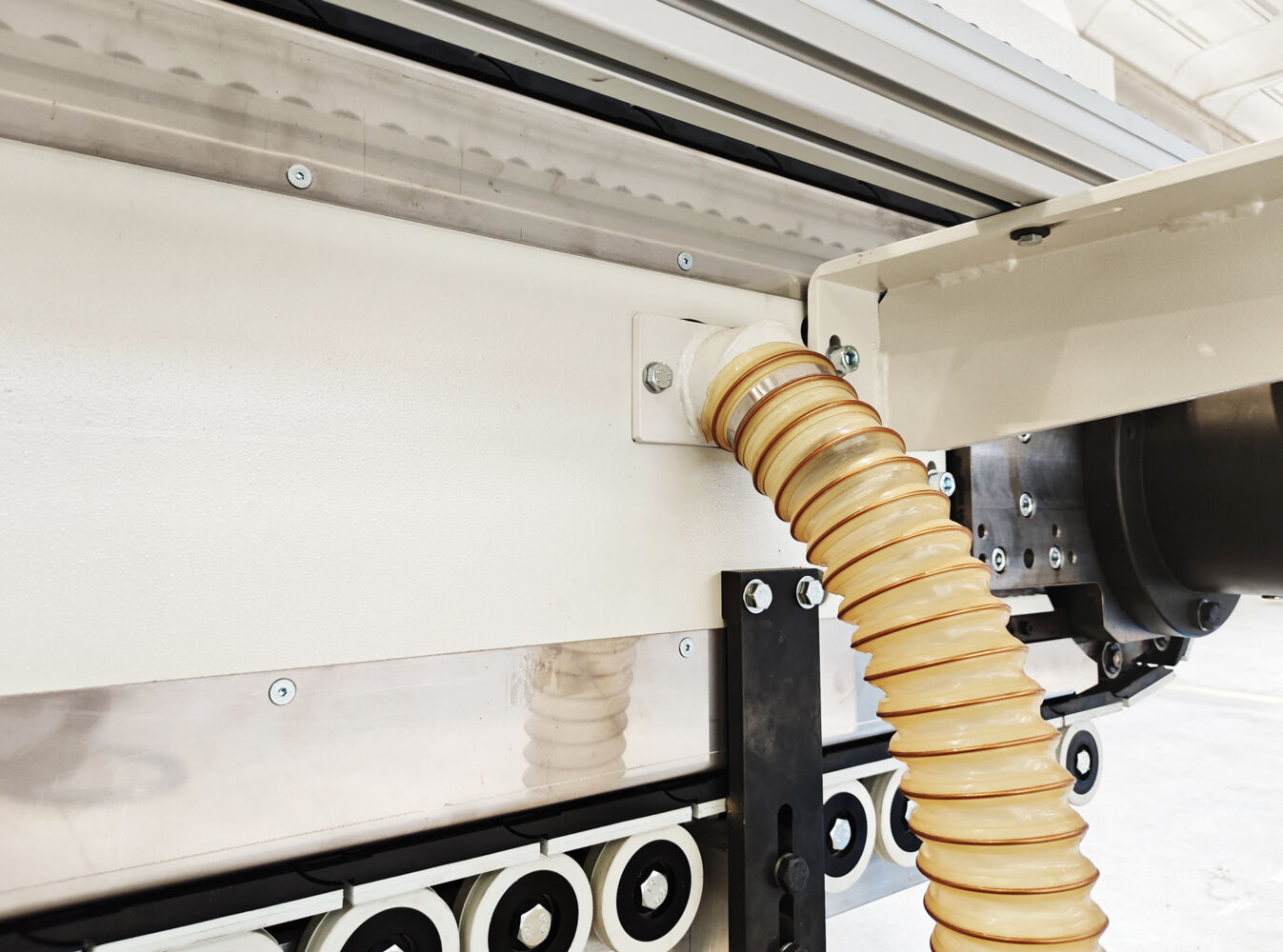

Exhaust system upgraded and hoods designed to be closer to the tool, wear resistant and extremely effective to remove dust and chips from the working area
Special protections on the sliding guideways and automatic axis lubrication to guarantee perfect machining conditions
| celaschi p60 | |
|---|---|
| Machining width | 120 - 4600 mm |
| Wordpiece height | 3 - 50 mm |
| Feed speed | up to 120 m/min |
| Electro-spindle | up to 30 kW |
From calibrating to sanding up to final decorations.

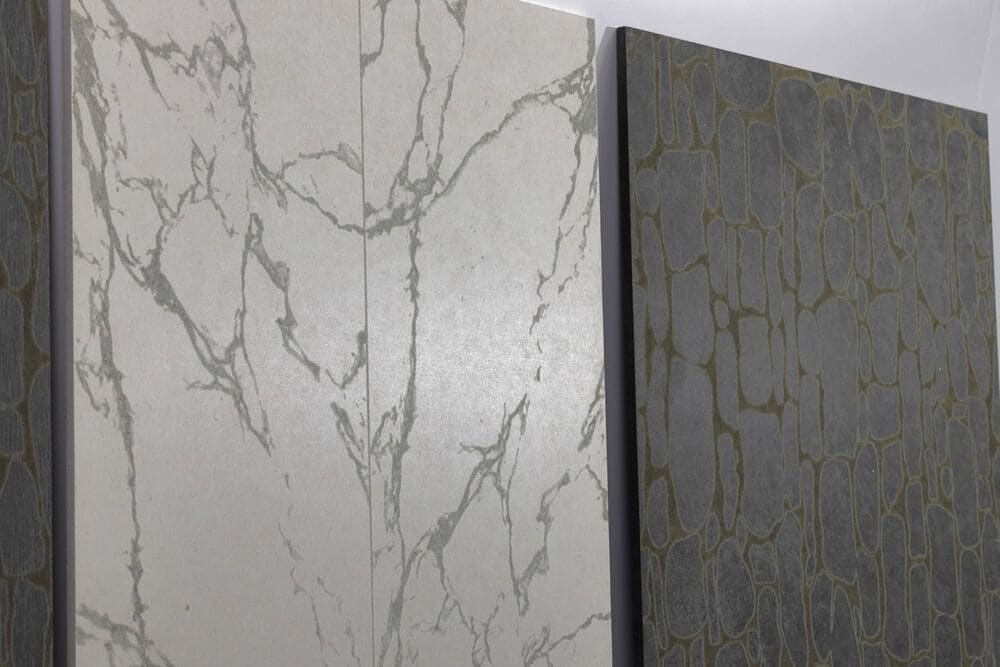

Fiber cement is not only a highly durable composite material, but also a surface with remarkable aesthetic potential.
To enhance its visual performance, SCM is committed to identifying the perfect finish, configuring the right machines to meet every design requirement, whether for interior or exterior applications. SCM’s approach to fiber cement is to help customers distinguish themselves on the market with solutions aimed at improving the surface finishing and increase the value of the finished product.

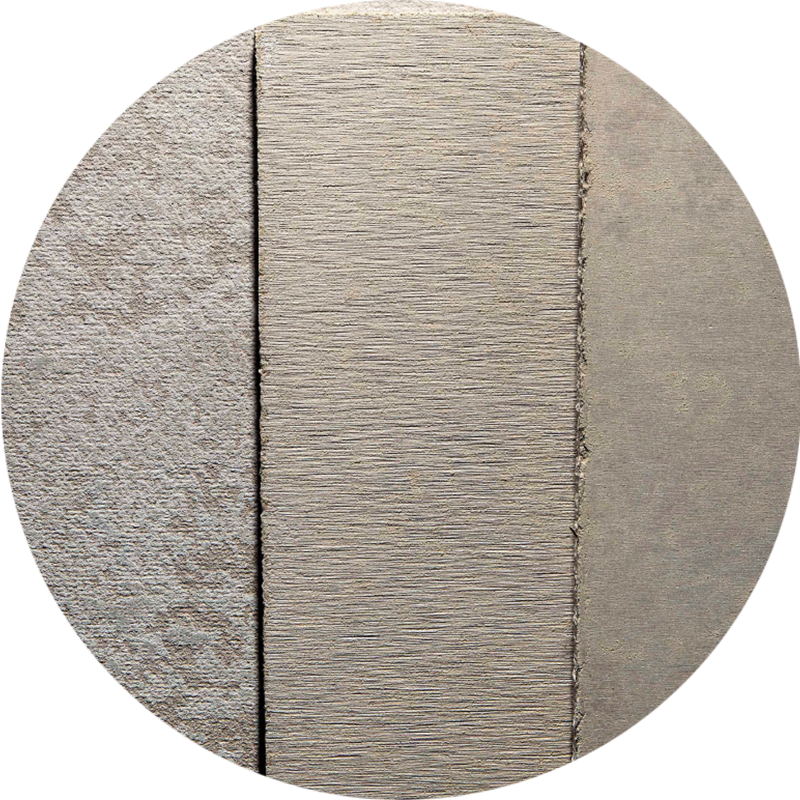

The process starts with heavy-duty calibration on one or both sides of the board — a key requirement for many fiber cement applications – integrated with advanced sanding operations capable of creating sophisticated surface effects. Final surface treatments, including curtain coating, roller coating and spraying, could then be completed through optimized drying systems that ensure reliable and flawless finishing cycles.

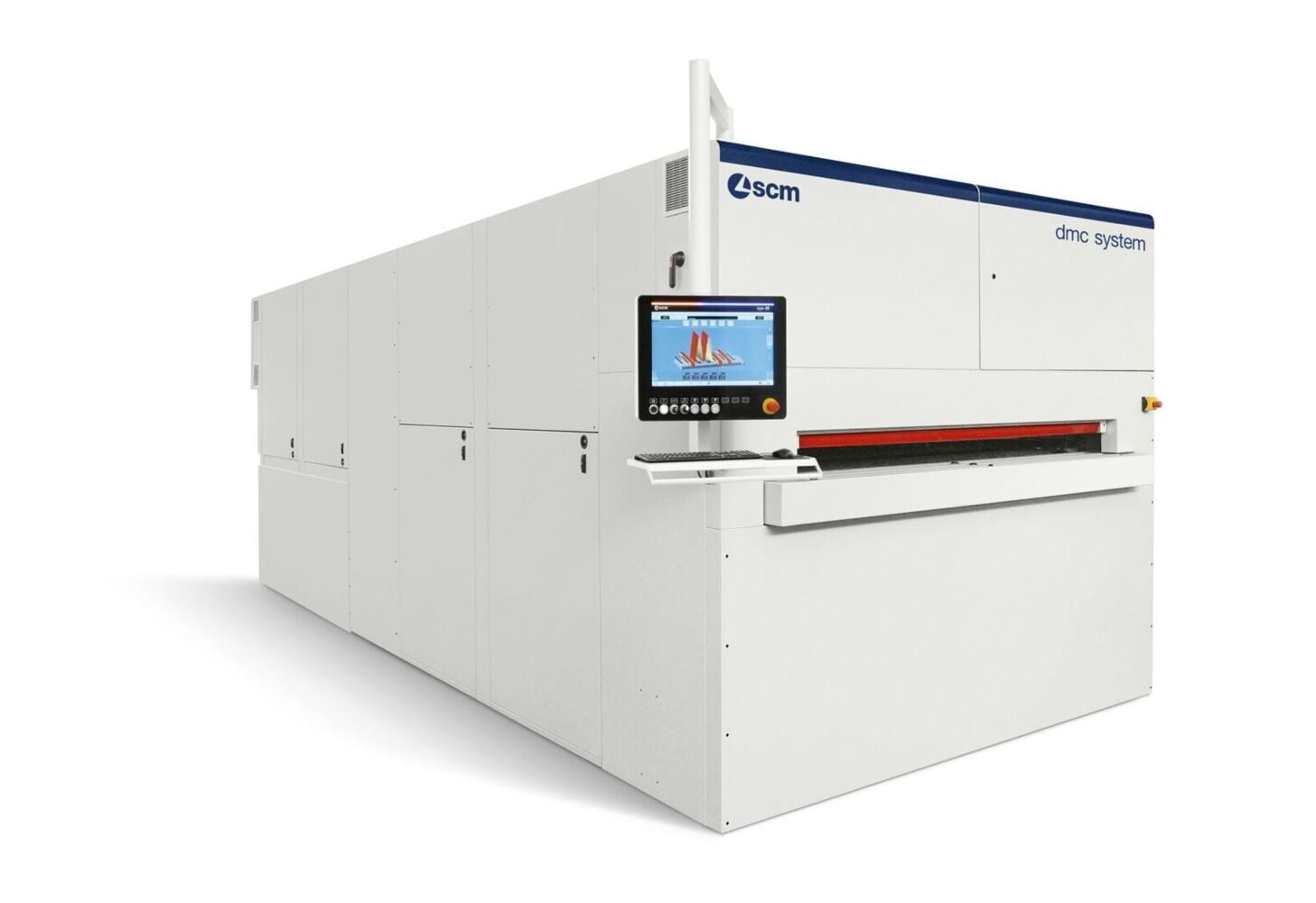

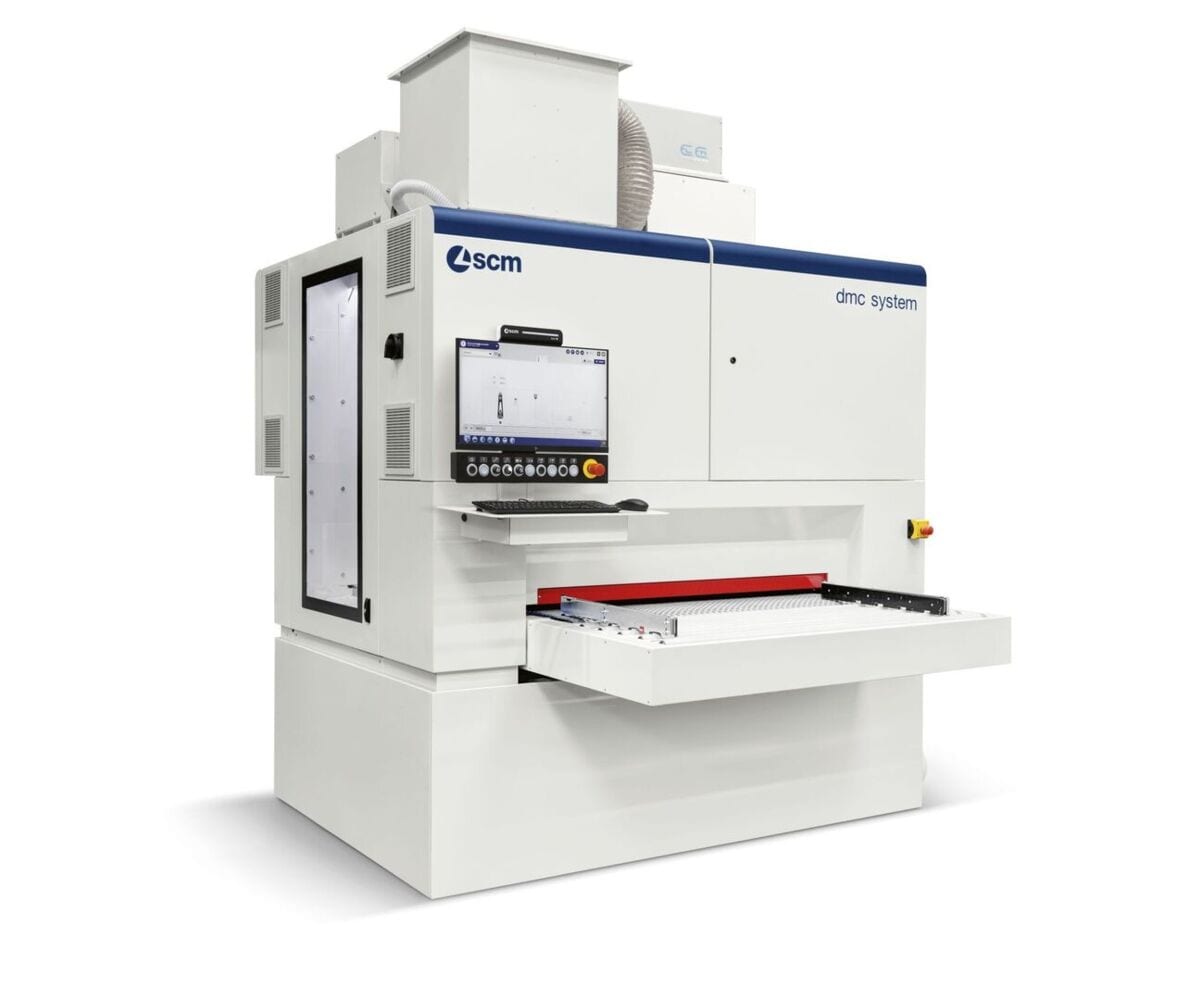

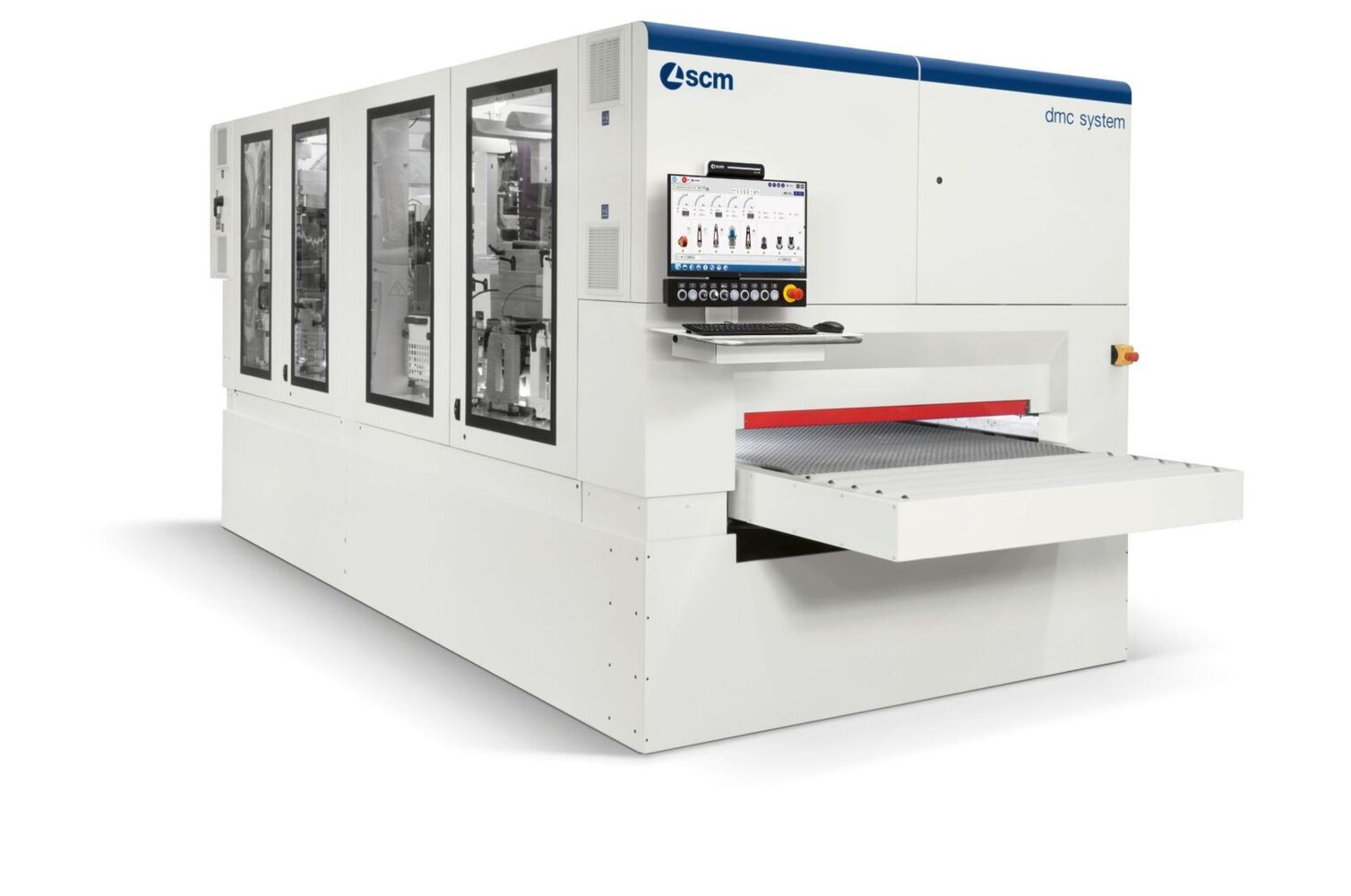

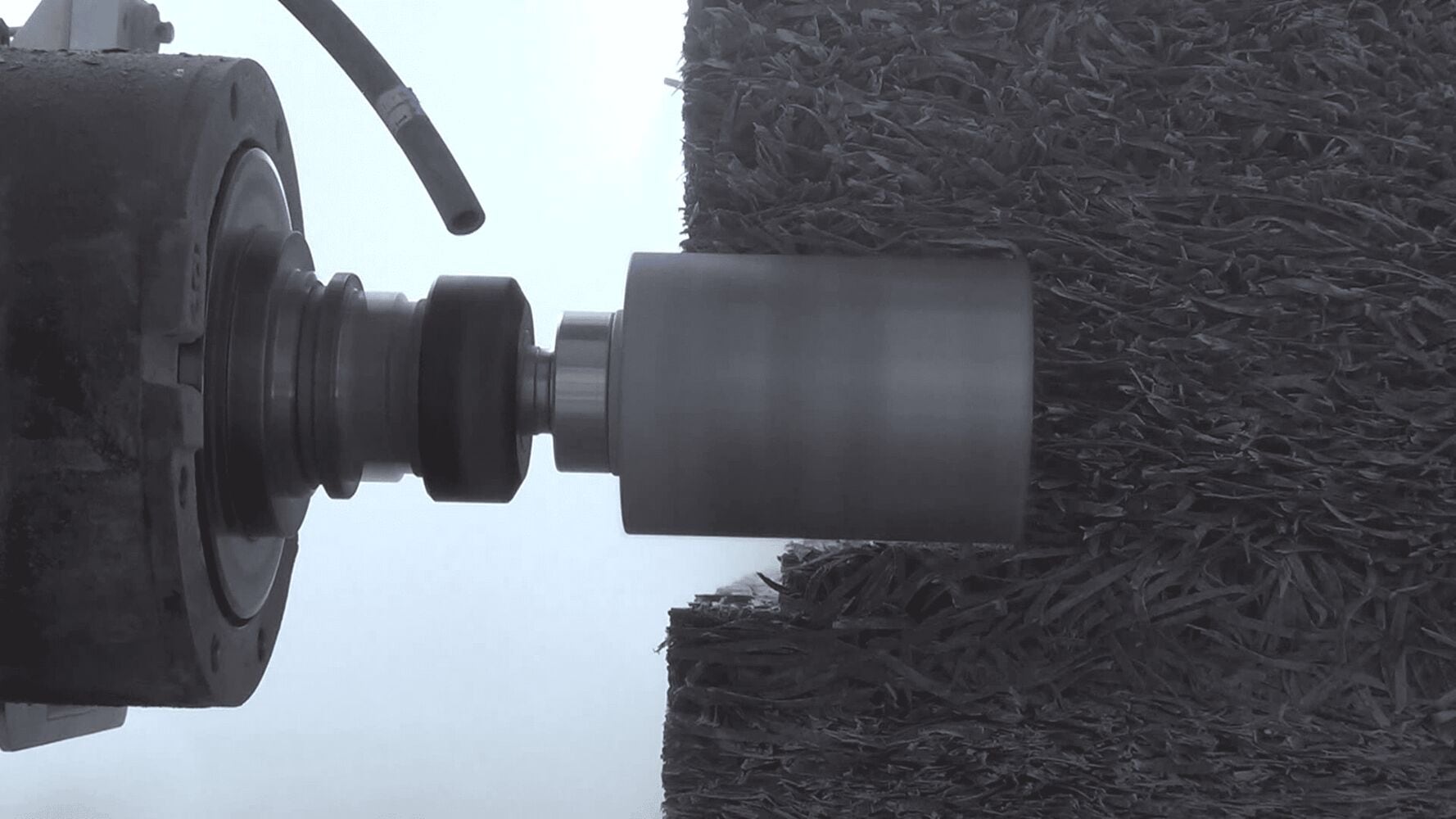

The dmc system range includes extremely resistant and reliable heavy-duty machines suitable to perform calibrating, laser engraving and sanding operations on fiber-cement boards, even on those with high-density.
Calibrating and sanding both sides of boards is achieved through compact top and bottom lines featuring a wide range of abrasive belt sizes, making them the ideal solution for intensive applications that require high performance and minimal downtime for routine maintenance.

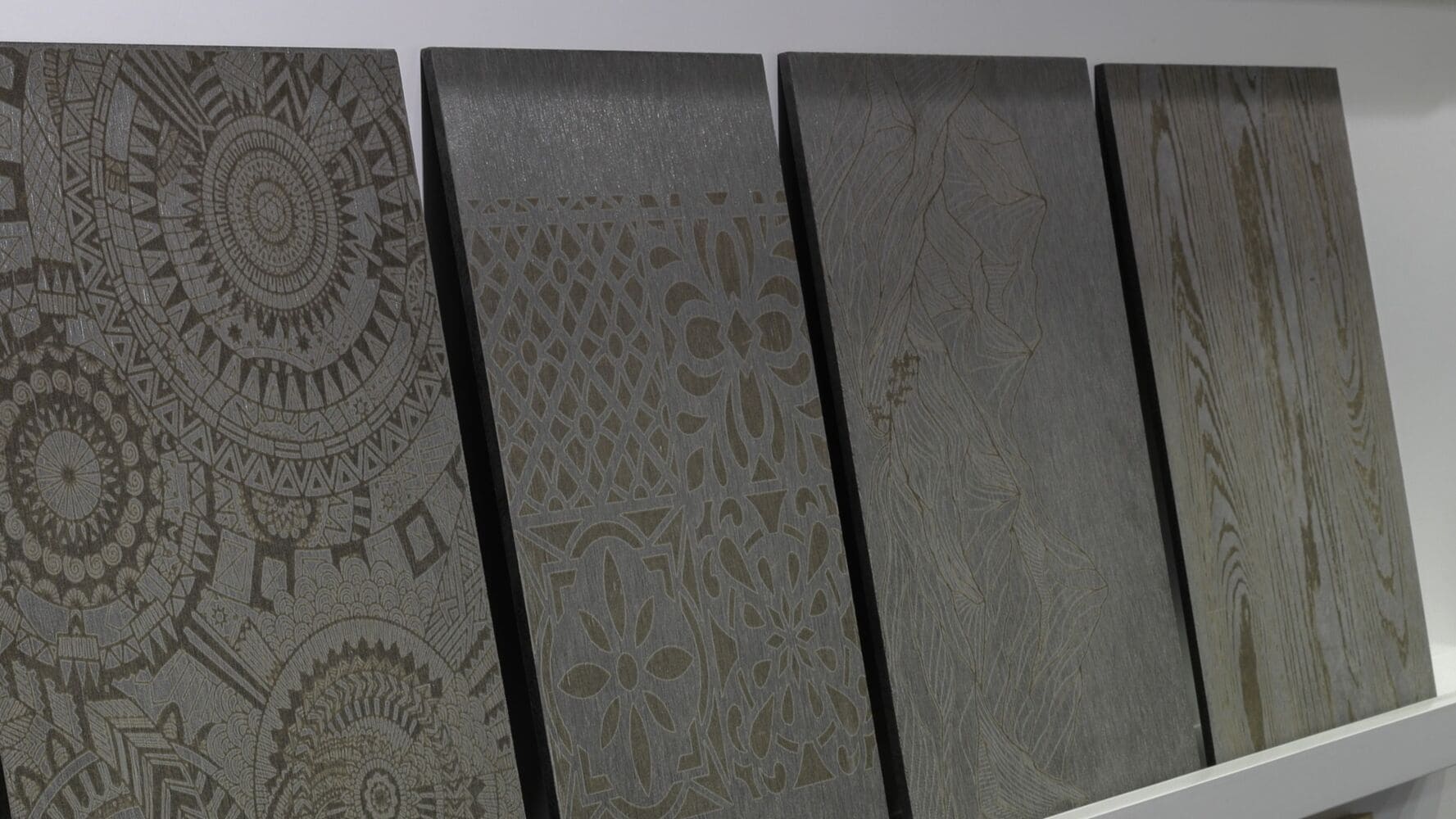

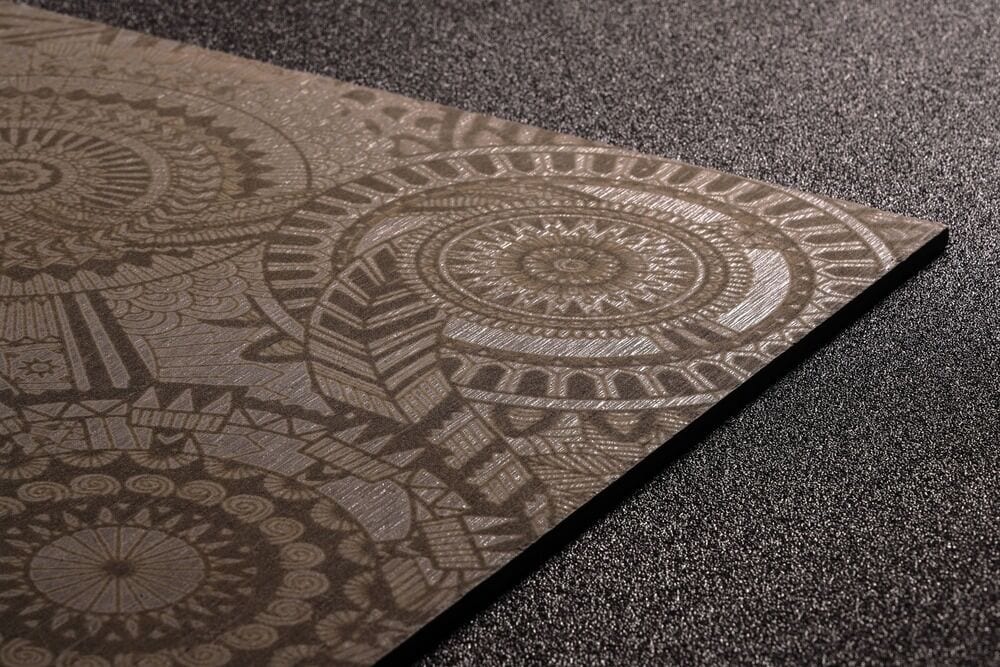

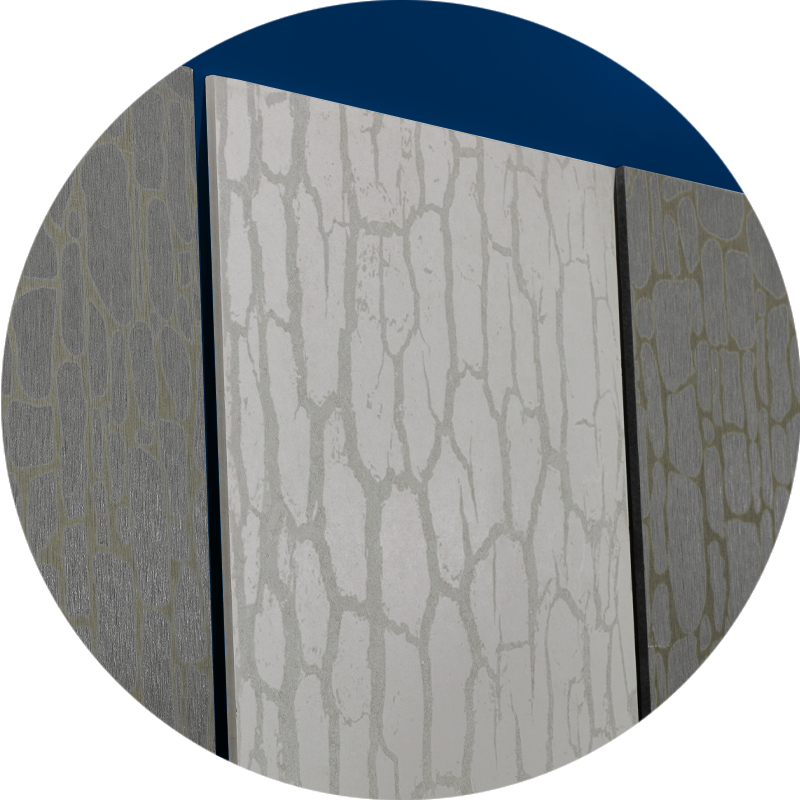

Moreover, with the brand-new LaserCraft unit is possible to ennoble fiber cement boards by marking the top side with abstract and/or geometric designs.
Up to 90 kW calibrating units for maximum material removal rates on high-density panels
Special devices for dust-proof operation and intensive applications requiring high performance and zero machine downtime, including high-flow exhaust hoods for maximum dust extraction
Hardened steel inserts for enhanced worktable wear resistance
Compressed-air nozzles for bearing protection against dust
Protective cover panels for the motor transmission system
High configurability of the operatimg units to meet any production requirement
Abrasive belts with up to 3250 mm length suitable for intensive applications
Engines up to 90 KW for each working unit
LaserCraft unit for ennobling fiber cement boards by marking the top side with abstract and/or geometric designs

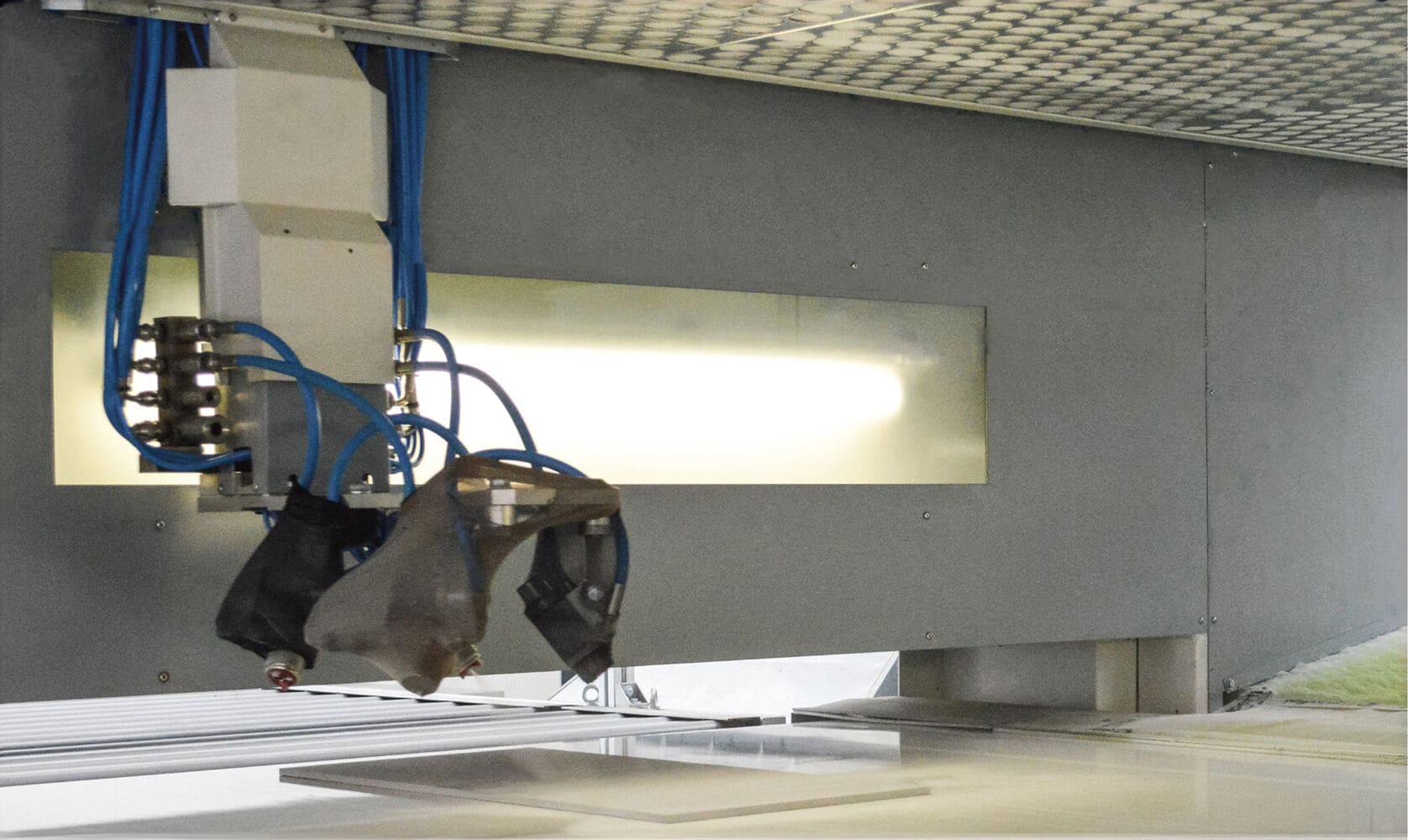

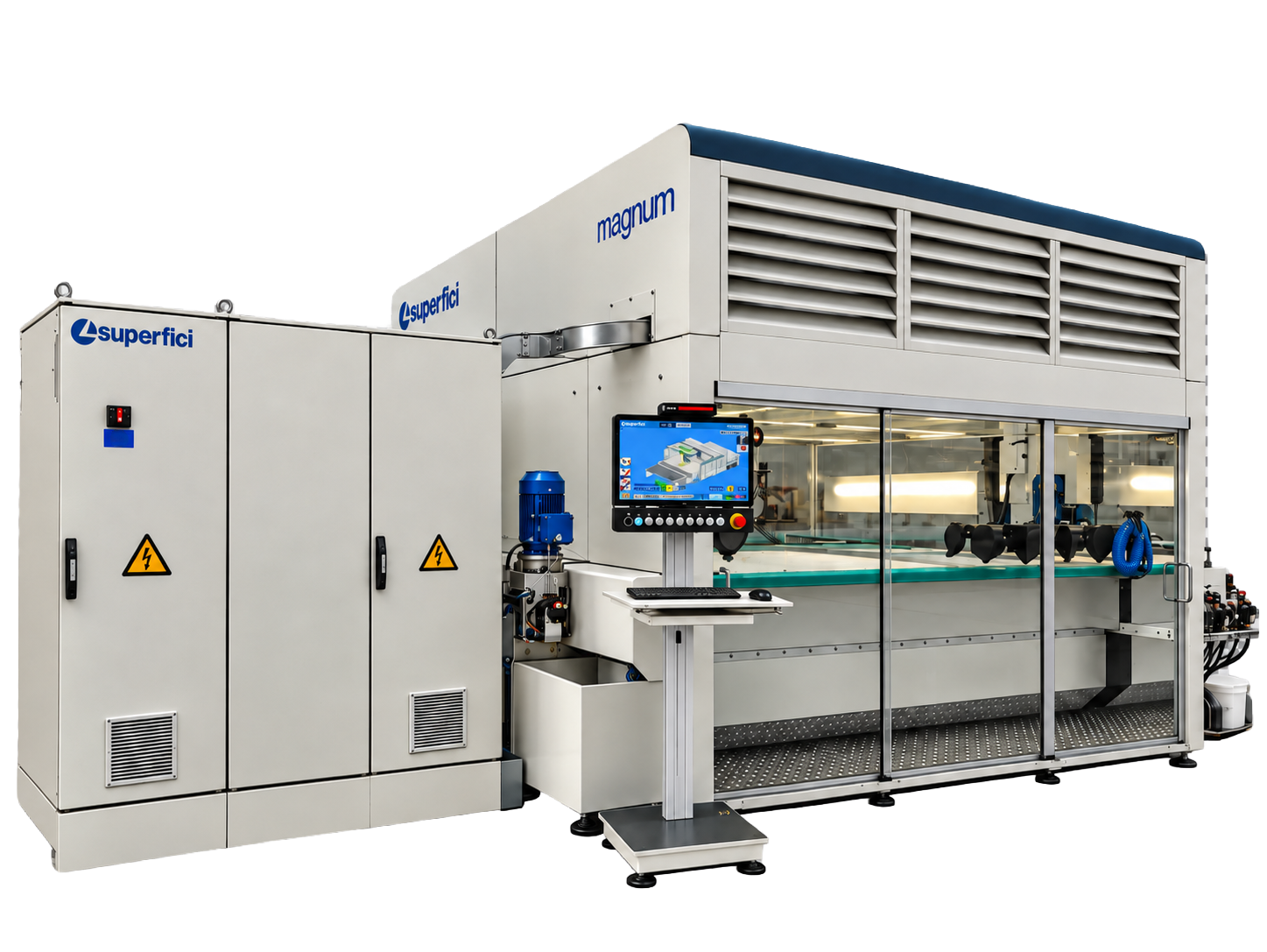

The spraying machine magnum is a solution with a high production capacity suitable to achieve extremely attractive facade panels in a wide range of colours with high aesthetical and technical performances.
| Magnum | |
|---|---|
| Working width | 1300 or 1600 mm |
| Working height | 900 or 1200 mm |
| Feed speed | 5 – 15 m/min |
| Workpiece minimum length | 300 mm |
| Reciprocator max. speed | 27 cycles/min |
| Reciprocator stroke | 2500 mm |
Optimal lacquer distribution even in the most critical conditions thanks to the patented independent double reciprocators
Edge coating is guaranteed to ensure complete surface protection, and superior overall finish quality
Ensured product quality with consistent finishing results
Automatic change of suction filters for reduced maintenance operations
Fast and efficient automatic color change for enhanced flexibility and reduced downtime

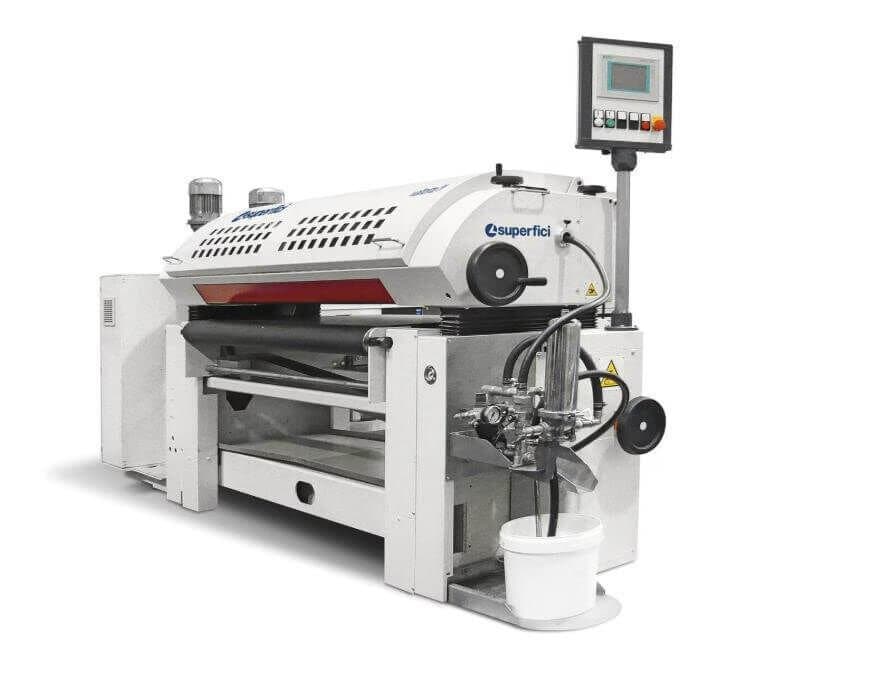

The roller coating machine valtorta F1 is a fast and efficient solution for primers application which is suitable to achieve extremely attractive panels with high aesthetical and technical performances, enhancing the potentiality of fiber cement.
| Valtorta f1 | |
|---|---|
| Working width | 1300 or 1600 mm |
| Working height | 900 or 1200 mm |
| Feed speed | 6 – 18 m/min |
| Min. and max. thickness | 3 - 120 mm |
| Workpiece minimum length | 300 mm |
| Application roller diam. | 245 mm |
| Doctor roller diam. | 173 mm |

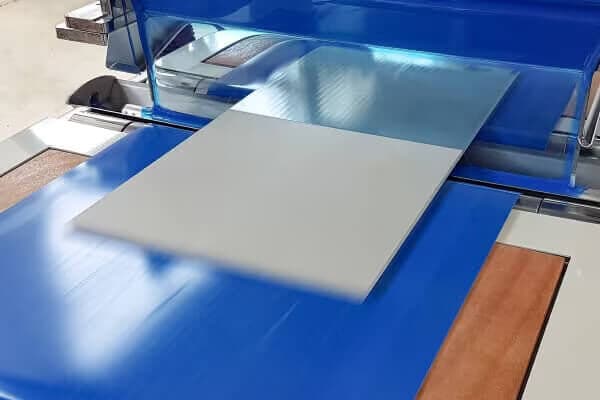

Suitable for coating the top surface, bottom surface, or both simultaneously
Zero paint waste thanks to its efficient coating technology
Fully programmable parameters with recipe-based control for repeatable results
Automatic adjustment of coating thickness for precision and efficiency
Exceptional application consistency for superior surface quality
Rollers available in a range of materials and hardness levels for optimal adaptation to different coating types

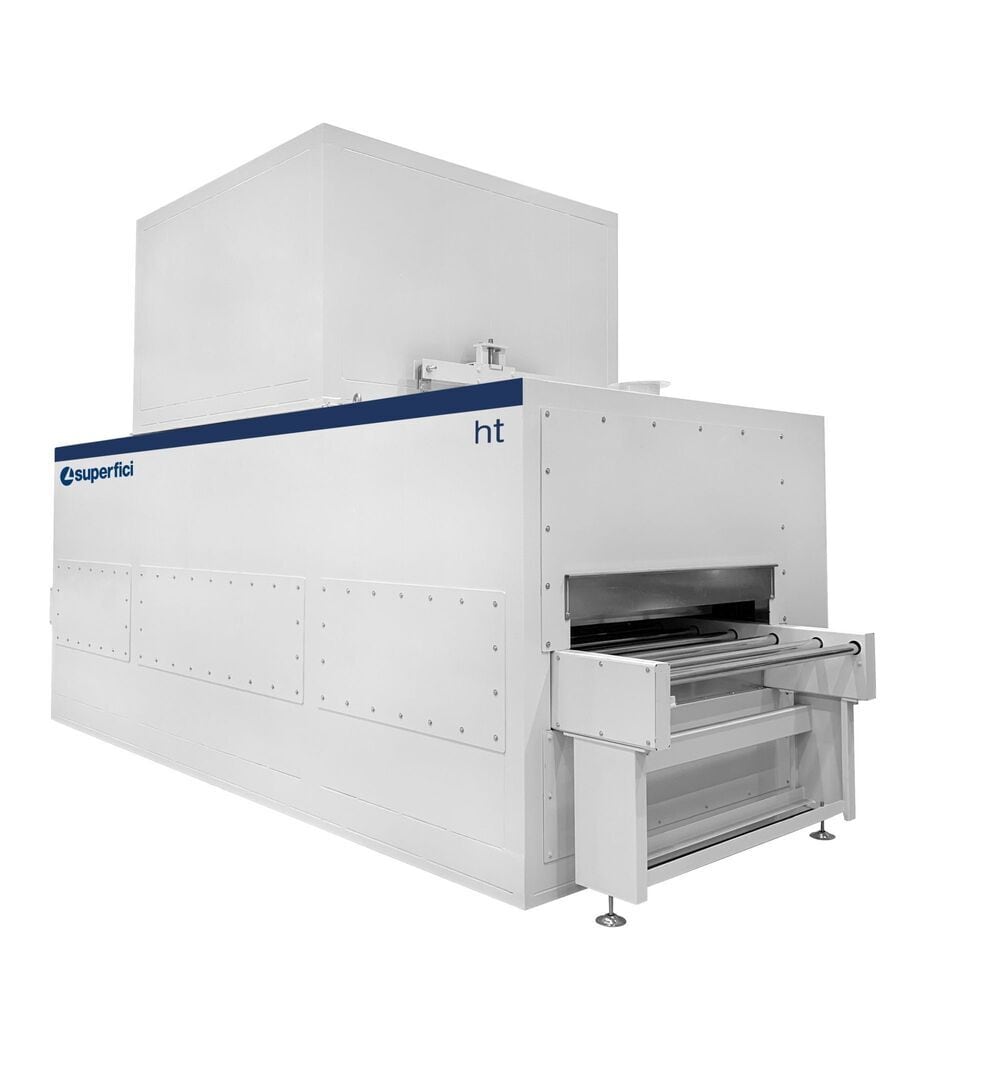

The linear convection dryer HT oven is equipped with modular air-blade hoods for pre-heating of the boards or paint drying, using high-temperature air generated by gas burners or electrical heating coils.
| HT oven | |
|---|---|
| Working width | 1300 or 1600 mm |
| Working height | 1200 mm |
| Feed speed | 3 – 20 m/min |
| Min. and max. thickness | 3 - 150 mm |
| Workpiece minimum length | 300 mm |
| Max. Air temperature | 200°C |
Top or top-and-bottom high-temperature convection oven configuration
Capability to reach air temperatures up to 200 °C for rapid pre-heating and to achieve the required Board Surface Temperature (BST) according to paint specifications
High-efficiency thermal insulation for optimized energy performance and heat containment

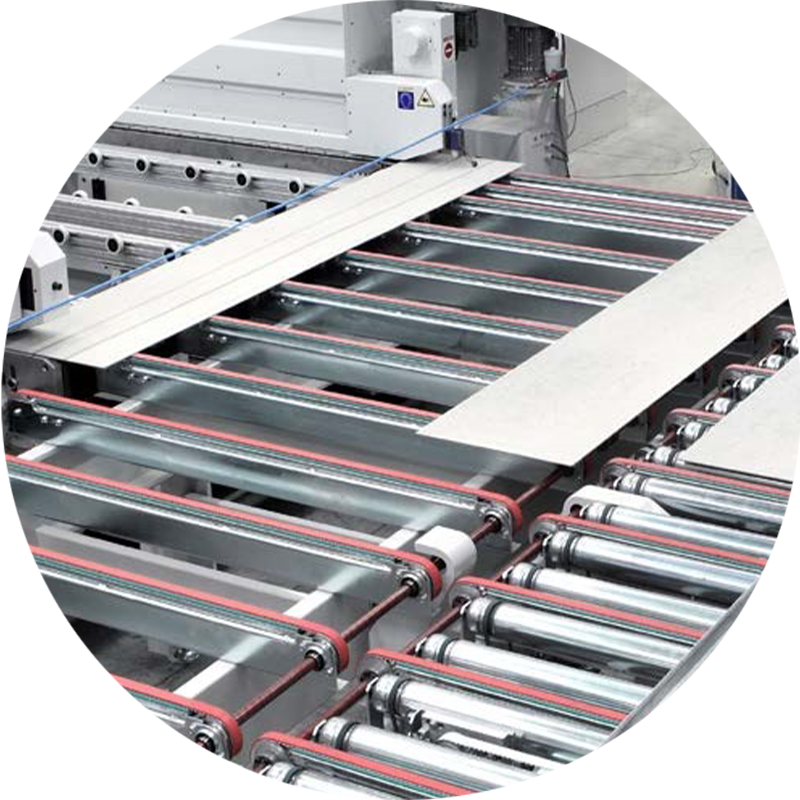

For over 30 years, SCM has been engineering lines to process fiber cement. Thanks to its extensive know-how, SCM develops custom-made applications engineered by highly specialized teams. The Group can provide and manage fully automated production lines, sized for every production capacity and for the most intensive uses, integrating handling systems and software to ensure maximum energy efficiency and reliability.

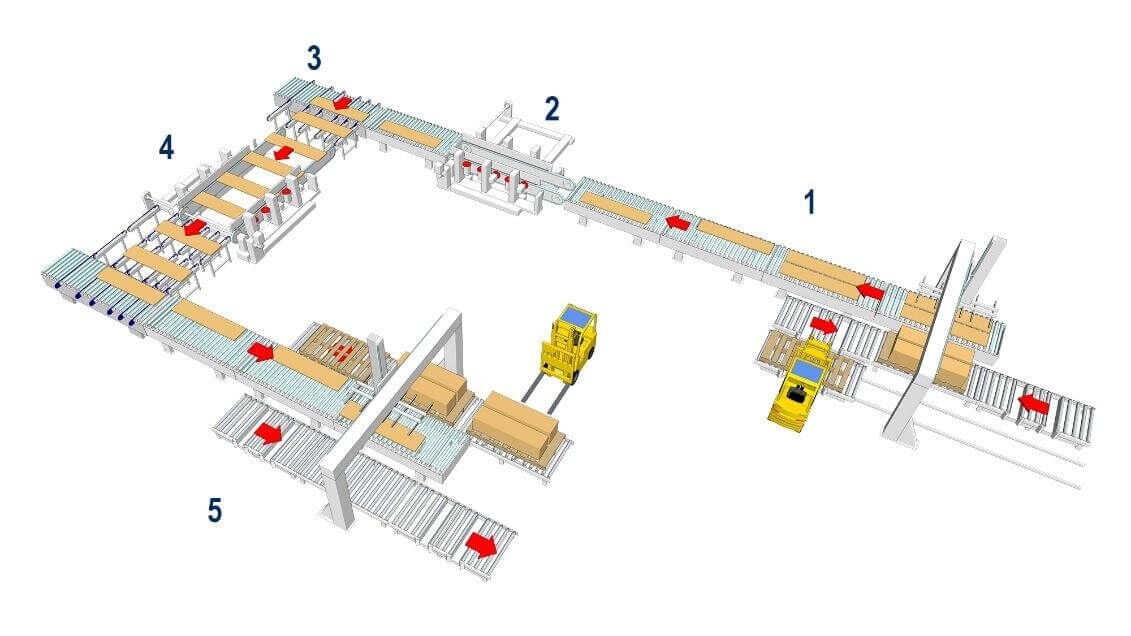

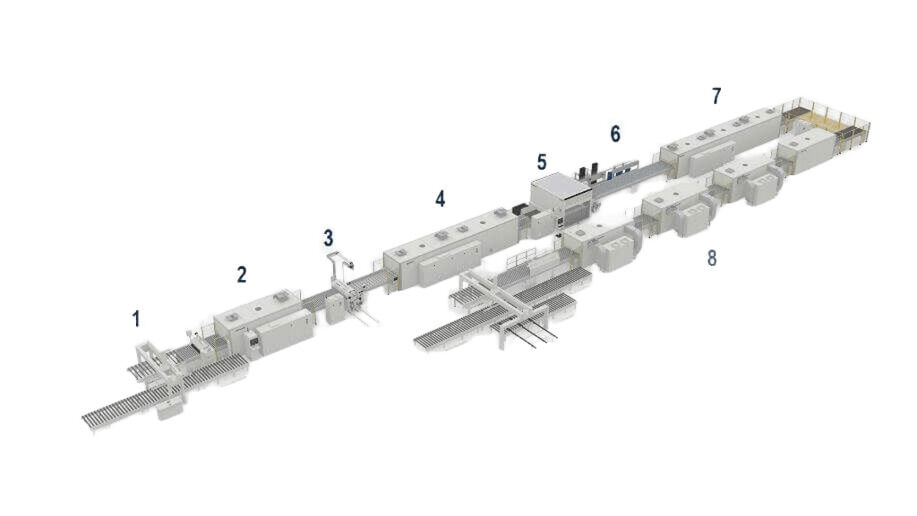

The line is comprised of the following key operations:
TECHNICAL FEATURES
Work piece dimensions
Laminate length: from 1000 up to 4300 mm
Laminate width: from 500 up to 1350 mm
Min. and max. thickness: 4,5 – 40 mm
Max. weight: 350 kg
Personnel required: max. 5 people per work shift
Productivity: up to 12 pieces/minute
Factory floor occupied: 1260 mq
The Superfici line is comprised of the following key operations:
TECHNICAL FEATURES
Work piece dimensions
Laminate length: from 3500 up to 600 mm
Laminate width: from 200 up tp 1300 mm
Min. and max. thickness: 3 – 20 mm
Max. weight: 130 kg
Personnel required: max. 4 people per work shift
Productivity: up to 3 pieces/minute
