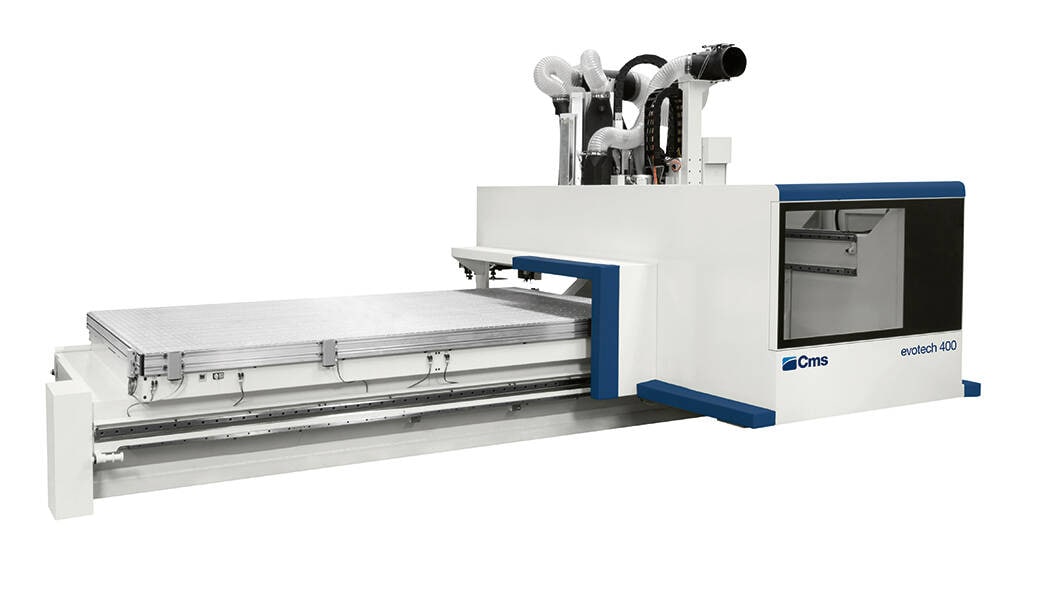

3 and 5 axis machining centres with mobile gantry structure dedicated to the machining of plastic materials and advanced materials and characterized by a rigid and stable frame.
HIGH REMOVAL AND PERFECT FINISHING
Removing capacity increased by 7%, faster roughing cycles and absolute compliance with the strictest finishing tolerances.

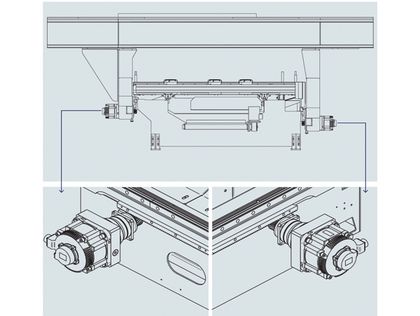

The fixed table and mobile gantry architecture with dual motorization, consisting of a rigid frame equipped with high-precision front and rear sliding guides, ensures maximum efficiency during heavy removal and incomparable finishing quality in the whole work area.
FLEXIBILITY AND CLAMPING EFFECTIVENESS

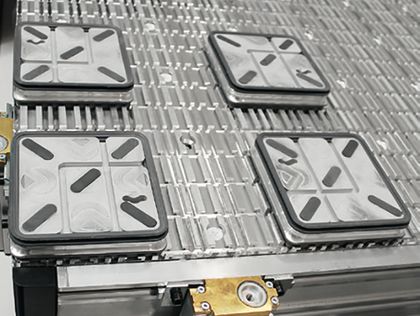

The built-in direct vacuum system and the T-slots allow the optimal clamping of the sheets and the positioning of all types of mechanical clamping equipment. Tolerances are always under control owing to a multi-functional and highly efficient aluminium work table that ensures perfect planarity over time.

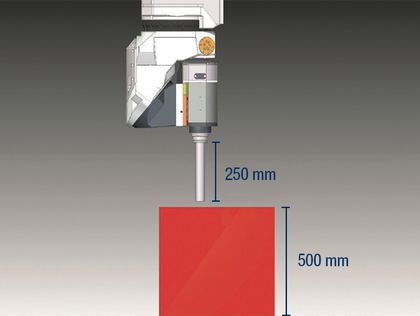

The high workpiece throughput dimension and the Z axis travel allow machining workpieces up to 500 mm high. Ideal solution in the production of engineering and prototype parts in plastic materials.
|EVOTECH 250||EVOTECH 400||EVOTECH 500|
|X-Y-Z axes max. speed (PRO SPEED version)||m/min||60-60-30||90-90-30||95-90-30|
|X-Y-Z axes max. speed (PRO SPACE version)||m/min||25-60-30||25-90-30||25-90-30|
|Z axis work-piece passage (max.)||mm||250||350||500|
|Axes electrospindle motor power (max)||kW||12||17||17|
|3/4 axes electrospindle motor power||kW||15||15||-|
|5 axes electrospindle 5 rotation speed (max.)||rpm||24000||24000||24000|
|3/4 axes electrospindle rotation speed (max.)||rpm||24000||24000||-|
|Vertical and horizontal spindles (max.)||n.||30||30||26|

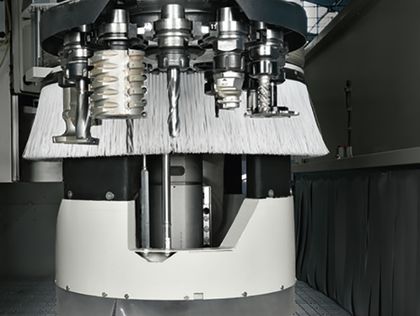

|Tool store on machining head||posizioni||12||12||12|
|Rear tool store||posizioni||32||48||48|
|Side tool store||posizioni||12||12||-|
|Front tool store||posizioni||-||-||16|
|Exhaust air consumption||m³/h||4430||4430||4430|
|Compressed air consumption (min.-max.)||Nl/min||350-550||350-550||350-550|
