THE SWISS ARMY KNIFE OF CUTTING TABLES

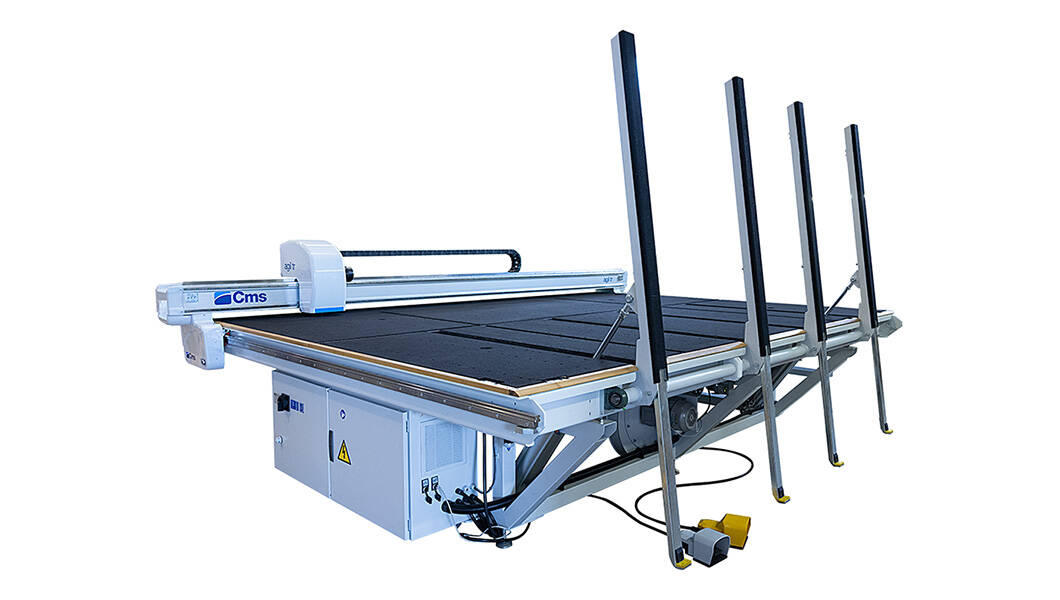

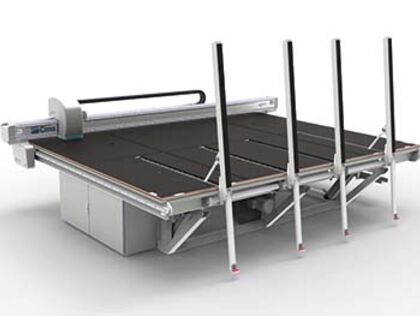

Agil tr is the most compact and versatile cutting table ever made by CMS.
It is a table that can automatically cut monolithic (float) glass sheets and semi-automatically cut laminated glass sheets thanks to the double-zero system.
- The table is equipped with 4 arms for loading/unloading the sheets and a c-axis to perform both straight and shaped cuts.
- Easy to install and compact in size, it can cut large sheets up to 3810 mm x 2600 mm.
- The table can be equipped with an automatic tool change and a low-e coating removal grinding wheel, and a vinyl removal system.
- Automatic tool change: 5-position magazine, installed close to the cutting head. Tool change in 4 seconds [PERFORMANCE]
- Low-e coating removal speed 40 m/min: 100% automatic removal system with dedicated grinding wheel [PERFORMANCE]
- Compact and easy to install [COST SAVING]

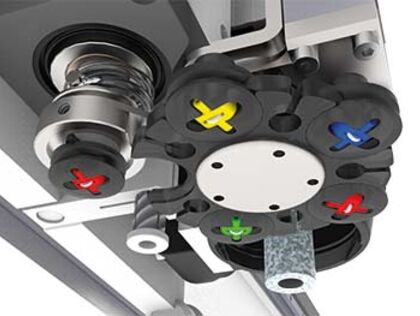

Automatic, 5-position tool changer magazine installed close to the cutting head. It guarantees the fastest tool change in its category.

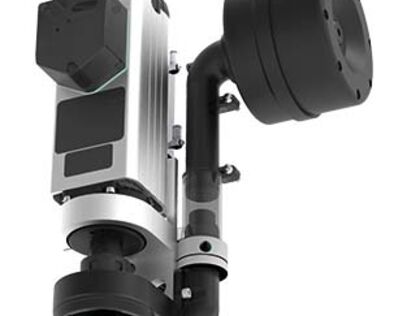

Grinding wheel at the front for automatic low-emission (low-e) film removal. 20 mm-wide film strips can be removed at a speed of 40 m/min.
| AGIL TR: TECHNICAL DATA | ||
| Max. workable sheet dimensions | mm | 3810 x 2600 |
| Workable sheet thickness | mm | 2 - 19 |
| Maximum positioning speed | m/min | 200 |
| Maximum acceleration | m/s² | 10 |
| Axis positioning accuracy | mm | ± 0.15 |
| Straight and shaped cut optimisation software | yes | |
| Breakout bars | 2+1 | |
| Maximum unloadable sheet | kg | 350 |
| Working surface height | mm | 925 (-25 + 30) |
| Installed power | kVA | 10 |
