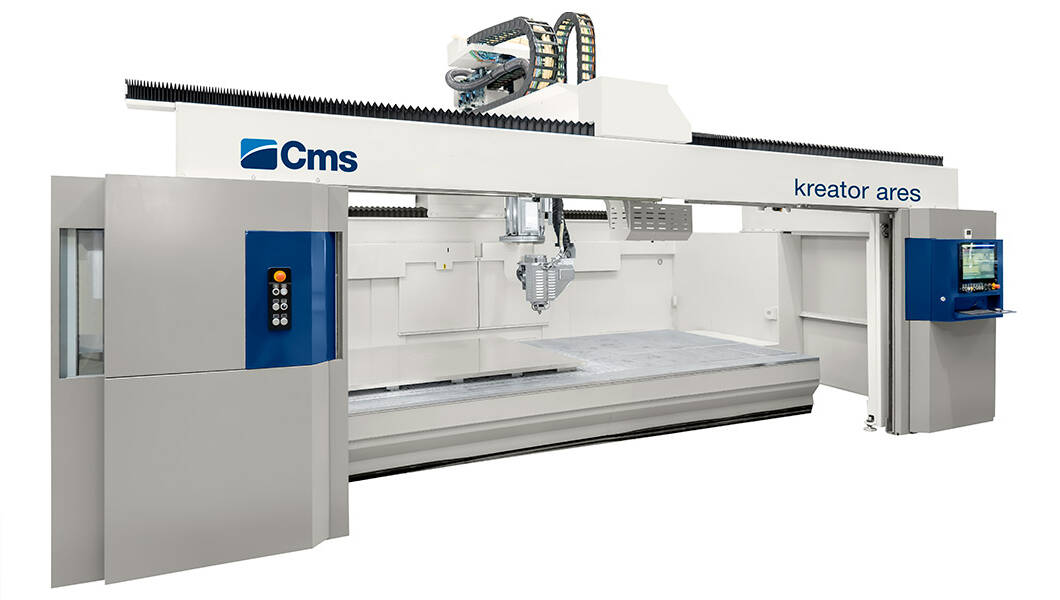

Hybrid system for additive manufacturing and milling: Making Additive Real!

CMS Advanced Materials Technology, leader in CNC machines for composite processing, started in 2018, in cooperation with the prestigious german Fraunhofer Institut, to develop an original LFAM (Large Format Additive Manufacturing) solution, for improving the competitiveness of composite and other industries.





The Additive Manufacturing technology adopted is Screw Extrusion Additive Manufacturing (SEAM)

  • Thermoplastic polymer, in granulated form is the material used.
  • The polymer is almost always reinforced (discontinuous fibres of carbon or glass) and the reinforcement is inside the granules.
  • The extrusion is done by a single screw extruder that melts the granules.
  • The extruder is moved by the tool machine’s axes.
  • The melted polymer exiting the extruder is deposited in layers that plasticize and form a single piece.
Advantages

HIGHLY FLEXIBLE

CMS Kreator incorporates technology that allows it to print at 0°, 45° and 90°. This machine can use a range of material types: PLA, PP, PET, PA, ABS, PC, PEI, PESU and many others

MATERIAL SAVING

At least 81% material saving for manufacturing a part, compared to current manufacturing technologies and competitors

SUSTAINABLE SOLUTION

Printing speed up to 16 m/min, faster than large sized FDM and competitors

UNIQUE SOFTWARE

The new slicing software developed exclusively for CMS simplifies the process and temperature control, thereby reducing printing times and improving production workflow

Case Studies
M.D.C. Design and CMS Kreator Ares
Read more
