5-axis CNC machining centers for milling and drilling - Monobloc CNC machining centers for vertical milling - antares

5-axis high speed CNC machining center with monobloc structure

Its compact design easily fits into any production environment, while still benefitting from the large working envelope.
The monobloc structure ensures stiffness and accuracy throughout its lifetime.
Maximum accessibility to the working area for piece loading / unloading by manual or automated systems.
Full acoustically-lined enclosure to contain dust and to reduce the noise generated by the machining operation.

Available also with rotating table (TR).

Advantages

PRODUCE MORE AND BETTER: TODAY AND TOMORROW

The advanced design of the structure, a result of CMS’ research center, and the technical solutions adopted guarantee rigidity and precision over time so that the high finish and accuracy of the workpieces remains a constant feature of your production over the years. The accuracy of ANTARES CMS boasts the industry's best-in-class performance in its category: +23% machining precision and accuracy.

FLEXIBILITY THAT COUNTS

The compact dimensions, with overall dimensions that are up to 11% smaller in its class, allow an easy and cost-effective installation in any production context; at the same time the wide working volume available does not limit the size of the workpieces.

ZERO DOWNTIME
The maximum accessibility to the working area for workpiece loading and unloading operations, even with automated systems, makes production lean, handy and quick; moreover, the availability of a version provided with two working areas and rotary table enables zeroing equipping and loading/unloading times.


DUST? NO PROBLEM!

The machine has been designed to better manage dust, chips and noise produced during machining. The total enclosure and the outfit of a wide range of accessories and systems expressly designed for the various types of materials and productions ensures the safety of the operators, cleanliness of the working environment and production efficiency.

Technical data
MODEL AXES STROKES RAPIDS
X Y Z B C X/Y Z B
26/15 2600 mm 1500 mm 1200 mm ±120° ±270° 80 m/min 70 m/min 9000 °/min
26/28 2600 mm 2800 mm 1200 mm ±120° ±270° 80 m/min 70 m/min 9000 °/min



WORKING UNIT AND ELECTROSPINDLE
MODEL NOMINAL
POWER (S1)
MAX
POWER (S6)
MAX RPM TORQUE TOOL CHANGE CONNECTION COOLING
CX5 - 8_40 8 KW 9 kw 40.000 rpm 6 Nm Manual and Automatic HSK 32E Liquid
CX5 - 8,5_24 8,5 KW 10 kw 24.000 rpm 8 Nm Manual and Automatic HSK 63F Liquid
CX5 - 10_24 10 KW 12 kw 24.000 rpm 9,5 Nm Manual and Automatic HSK 63F Liquid
PX5 - 12_24 12 KW 15 KW 24.000 rpm 12,2 Nm Manual and Automatic HSK 63F Liquid
PX5 - 15_24 15 KW 17 KW 24.000 rpm 15,4 Nm Manual and Automatic HSK 63F Liquid
PX5 - 20_24*
(sincrono)
20 KW 22,3 KW 24.000 rpm 20 Nm Manual and Automatic HSK 63E/A* Liquid

* HSK63A available only for controlled spindle



Case Studies
Cutting-edge machines for innovative materials
Read more

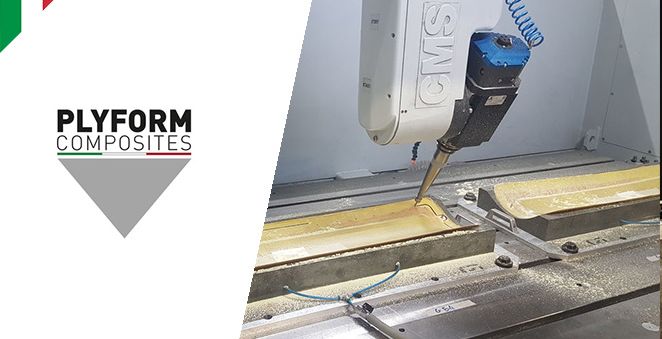

Plyform Composites & CMS
