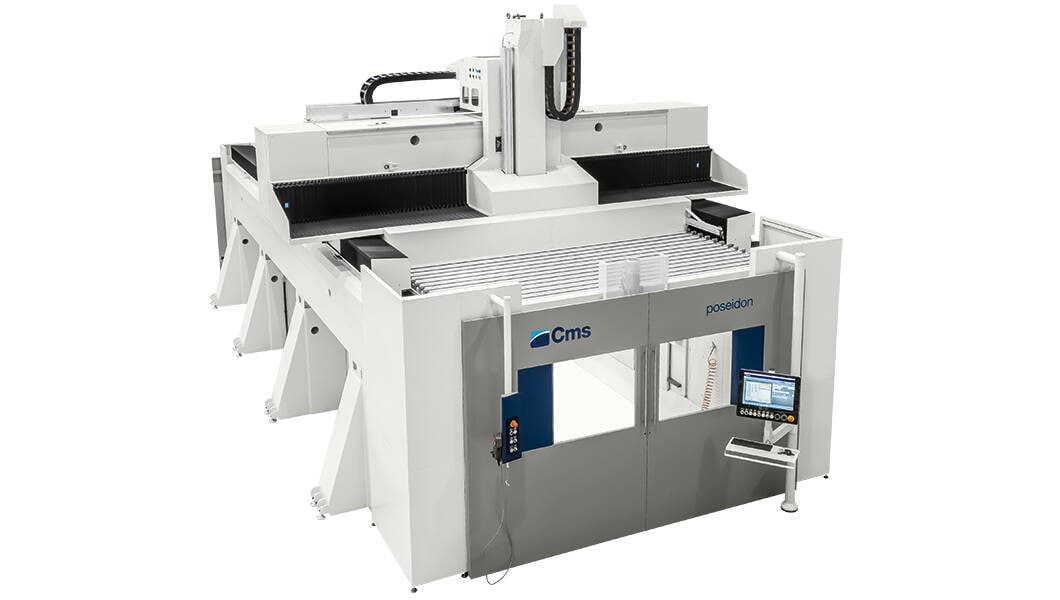

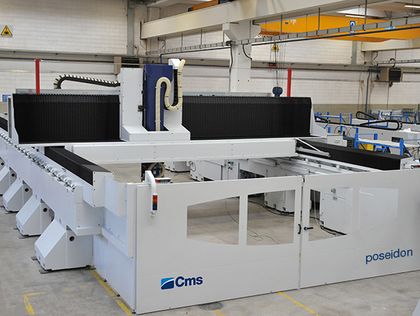

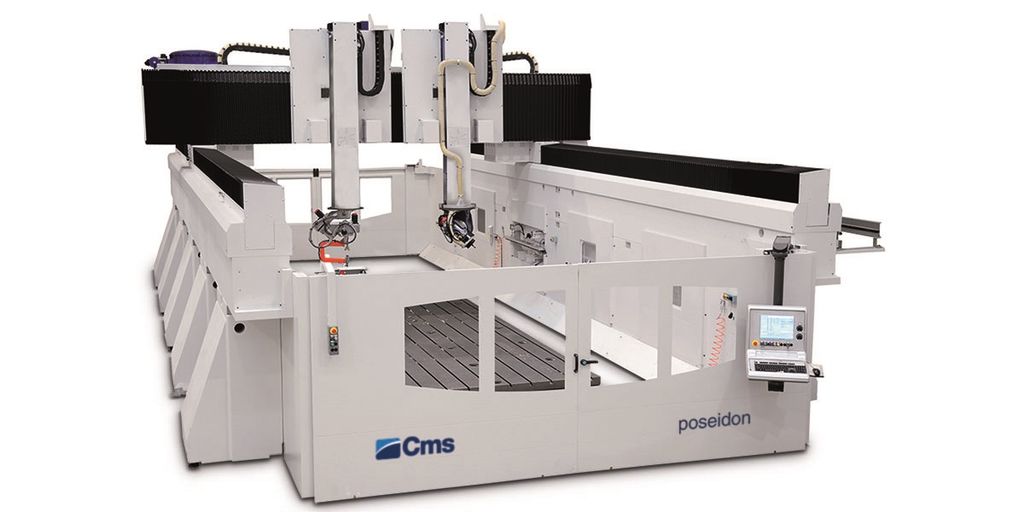

Numerically controlled machining centre designed according to CMS’ philosophy: the machine is the result and culmination of experiences developed in the aerospace and marine sectors.
The structure and the technical solutions adopted, along with the selected components, ensure a highest level of component finish, high machining speeds, reliability, structural rigidity, operating flexibility and outstanding productivity.

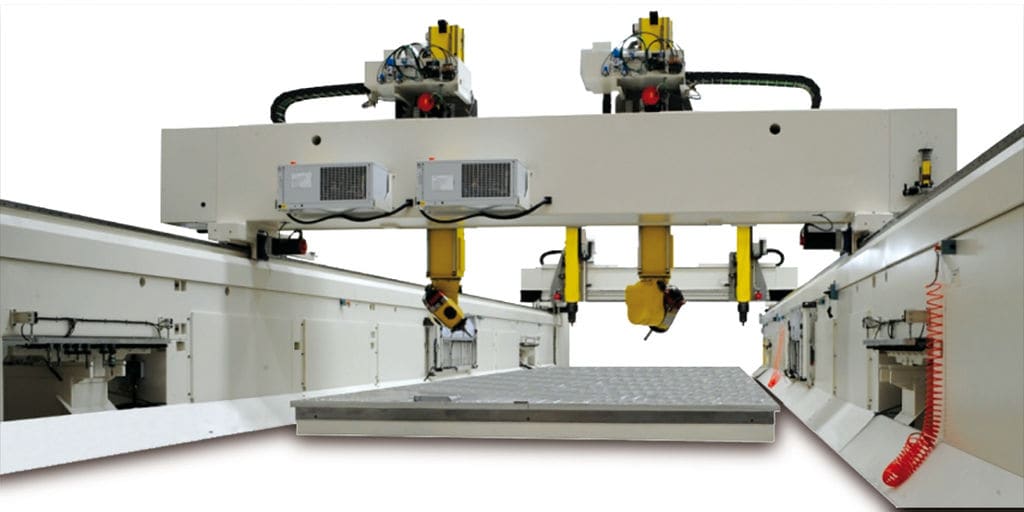

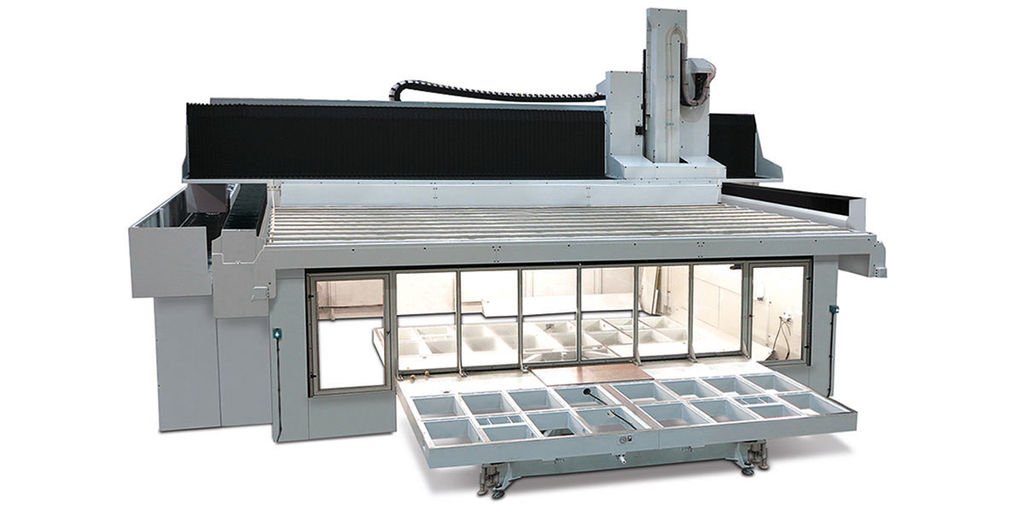

poseidon machine is available also with:
poseidon does away with the problem of workpiece sizes; even in the extremely complex sectors like boating, wind power and automotive. Above all, thanks to the aeronautical design concepts applied to the frames, CMS has made no compromises on performance with volumetric accuracies 21% lower than the segment average.
BETTER AND FASTER
High operating power, geometric precision and reliability even in the most complex machining operations lead to a single result: producing better workpieces more quickly. Poseidon has been designed to adapt to your manufacturing reality and make it even more efficient and competitive.
|STROKES AND SPEEDS|
|X [m]||2,5-4-5-6-7,5-8-10-13-15,5-18-20,5-23.5-26-28.5-31-34-36.5-39-41.5||85 m/min|
|Y [mm]||2600-4000-5000-6200||5000-6200-8500||85 m/min|
|Z [mm]||1300-2000-2500||1300-2000-2500-3000-3000T*-3500-4000-4000T||45 m/min|
|A [ ° ]||+/-120° (PX5, HX5), +/-110° (KX5)||9000°/min|
|C [ ° ]||+/-270° (PX5), +/-245° (HX5) +/-300° (KX5)||9000°/min|
