accord 500 edge
(512) 931-1962

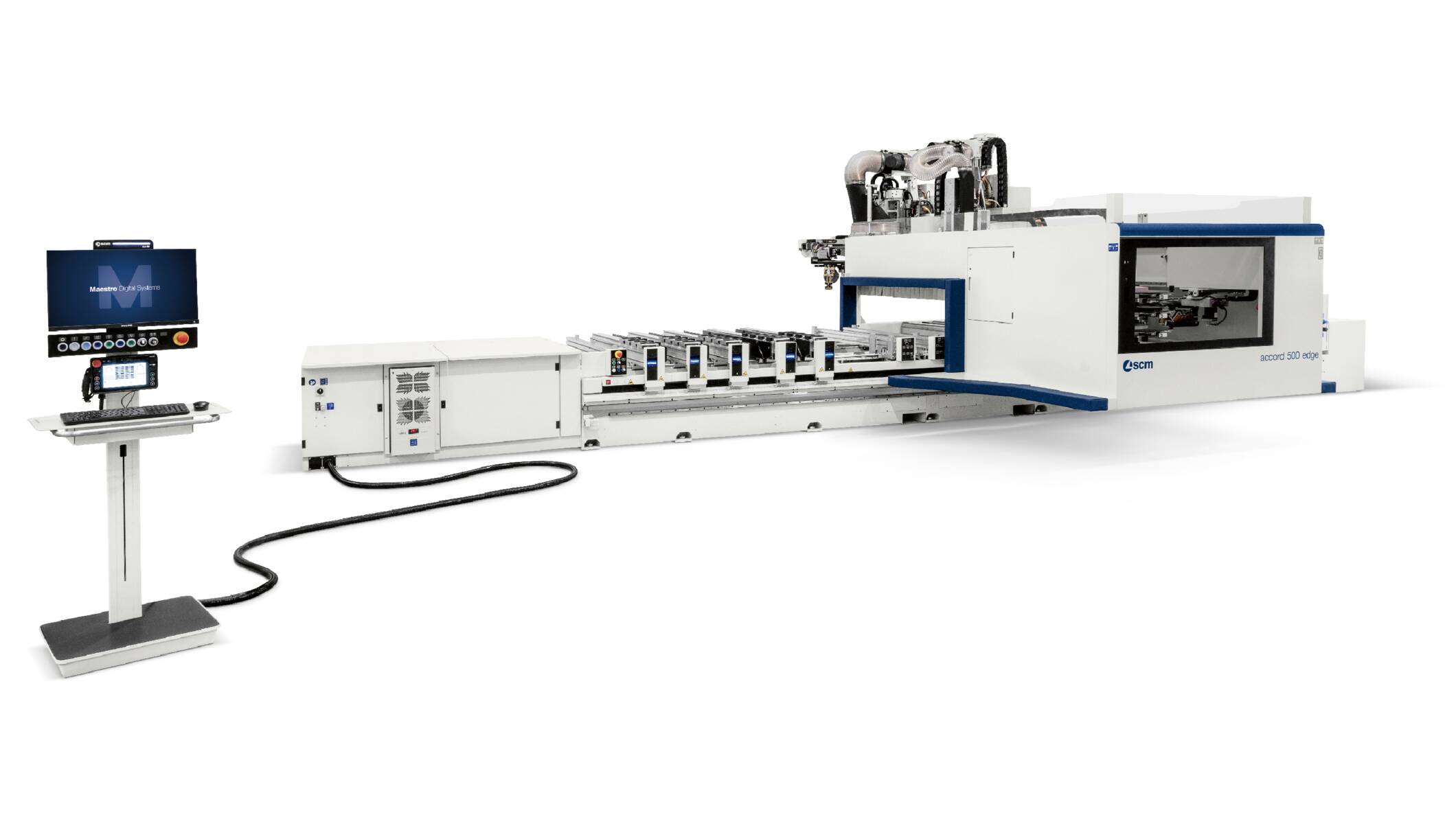

accord 500 edge, compact and high-tech machining centre developed to perform complete machining operations, from routing to edge banding processing on panels for furnishing and solid wood elements. Ideal solution to meet all the requirements of medium and large-sized companies operating in the furniture industry and third-parties.
The machine's high level of customisation and ease of use allow for operations with various types of edges and glues, as well as automatically changing the type of edge application for a ‘just in time’ manufacturing approach.
Advantages
-
PERFORMING
The double motorised ‘gantry’ structure allows for high movement speeds and reduced machining cycle, ensuring top-quality finishing in all applications. -
VERSATILE

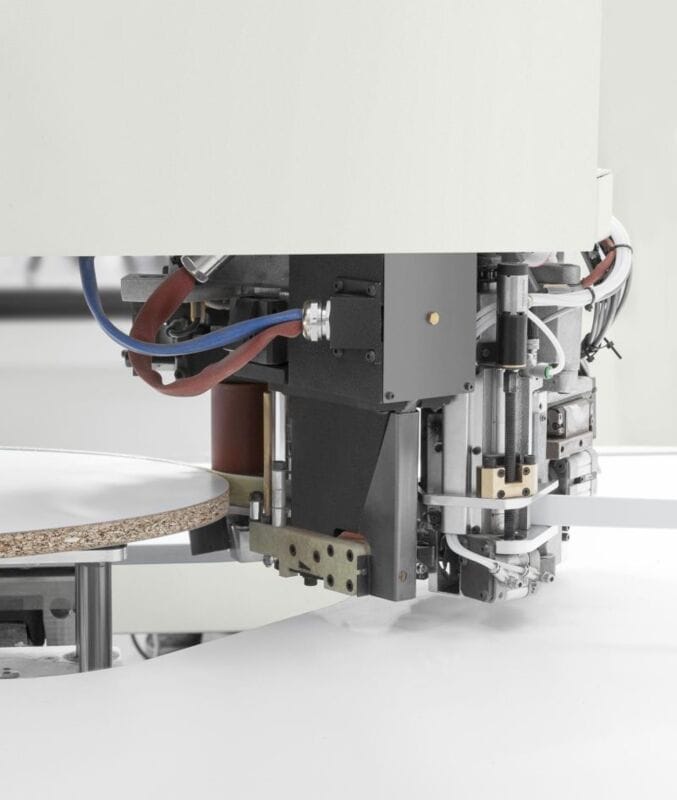

Top-of-the-line finishing with the H80C COMPACT edgebanding unit, for panels up to 80 mm thick. No production constraints thanks to the automatic pressure system changeover: SCM's exclusive solution that allows you to automatically change the edge application technology according to the process to be performed. -
EXCLUSIVE
Wide range of SCM worktables to suit all requirements, from the Flex manual worktable up to the Matic one for fully automated suction pods positioning. Available with HE-POD clamps and suction pods. -
EASY PROGRAMMING
Even for less experienced operators. The Maestro suite allows you to perform all types of processing through a single platform, save your favorite processes, and replicate them.
Technical data
| accord 500 edge | ||||
| Working areas | ||||
| X-Y-Z axes dimensions | mm |
3715 x 1600 x 300 |
||
| Axes | ||||
| X-Y-Z axes max. Vectorial speed (PRO-SPACE) | m/min | 25-80-45 | ||
| X-Y-Z axes max. Vectorial speed (PRO-SPEED) | m/min | 90-80-45 | ||
| Routing unit | ||||
| 5 axes electrospindle motor power (max.) | kW (hp) | 17 (23) | ||
| 3/4 axes electrospindle motor power (max.) | kW (hp) | 21 (28,5) | ||
| 5 axes electrospindle rotation speed (max.) | rpm | 24000 | ||
| 3/4 axes electrospindle rotation speed (max.) | rpm | 24000 | ||
| Tool changers | ||||
| TRB side tool changer | positions | 11 | ||
| CADDY side tool changer | positions | 35 | ||
| VELOCE "on-board" circular tool changer | positions | 12 | ||
| Drilling unit | ||||
| Independent vertical and horizontal spindles (up to) | n. | 31 | ||
| Rotation speed (max.) | rpm | 8000 | ||
| Integrated saw blade in X, diameter | Ø | 125 | ||
| H80C "Compact" Edge banding unit | ||||
| Edge height | mm | from 16 to 85 | ||
| Edge thickness | mm | from 0,4 to 3 | ||
| Edge storage (up to) | n° | 5 | ||
| Available working table | ||||
| Flex | Yes | |||
| Flexdrive | Yes | |||
| Flexmatic Pro | Yes | |||
| Matic | Yes | |||
